Specifications
Brand Name :
Bitvisus
Model Number :
BIT-VWC-U2-436
Certification :
CE、FCC、GB
Place of Origin :
Guangdong China
MOQ :
1
Price :
1929
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
8KG, 50cm*20cm*10cm
Product name :
BIT-VWC-U2-436
Product type :
4x9 8K60 LCD LED Video Wall Controller
Resolution :
8K@60Hz
Feature :
4 in 36 out large screen splicing
Function :
Stitching
Input :
4XHDMI 2.0,4xDP 2.0(HDMIDP Either/or input)
Output :
36x HDMMI 1.3
Input Interface :
600MHz
Output Interface :
154MHz
Warranty :
3 Years
Description

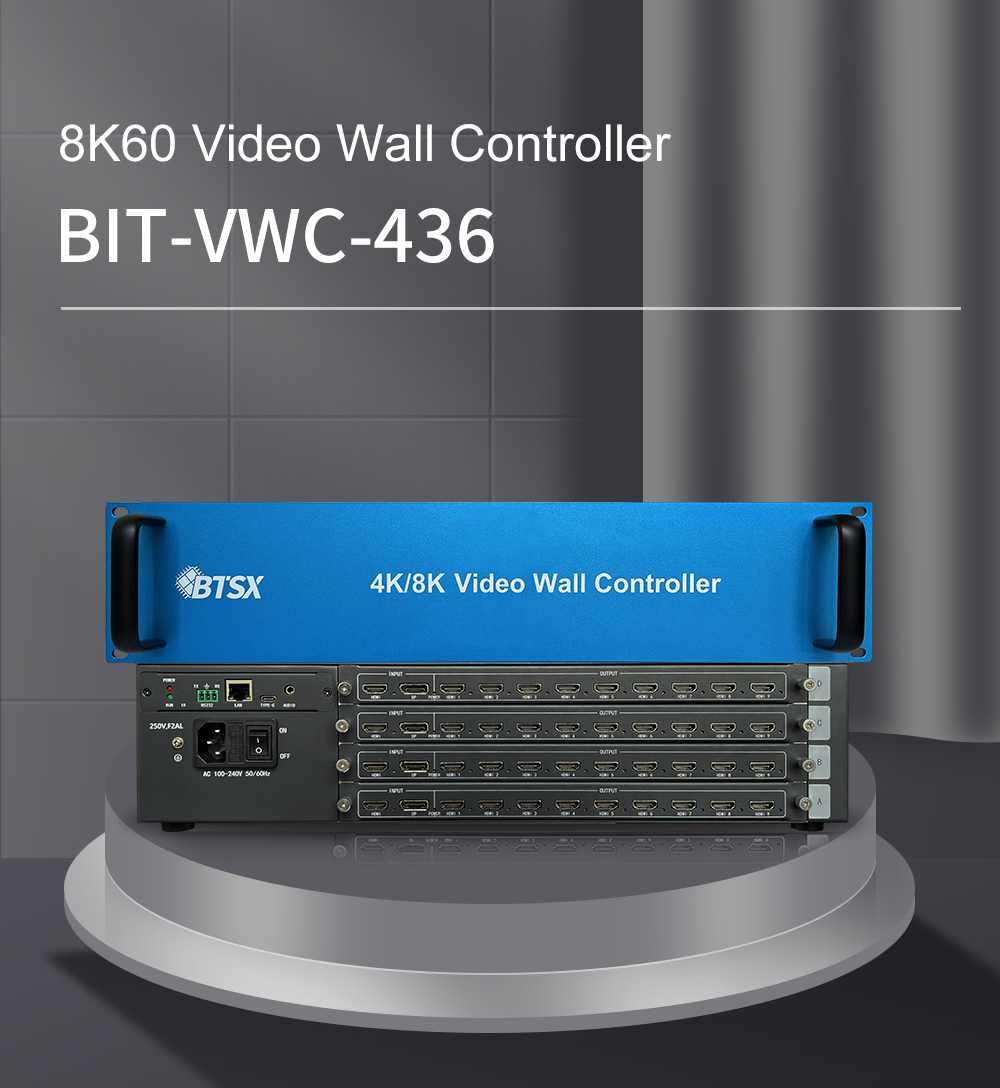

BIT-VWC-U2-436 is a 8K60 splicing processor independently developed and produced by Bitvisus, through an independent graphics card input 4-way 4K60, the interface can be selected HDMI or DP, the output of 32-way 1080P60 HDMI interface, a single device to support the insertion of 4 boards and cards, the plug-in card structure design, according to the needs of a flexible configuration to provide a remote control, serial port, network port control Remote control, serial port, network port control interface.Ultra-high picture quality, great stability, extremely simple operation, widely used in meeting rooms and conference centers,command centers, monitoring rooms, commercial displays and advertising, public information dissemination, museums and exhibition halls and other places.

* Support 4-way HDMI/DP input, 36-way HDMI output;
* A single device, 4 in 36 out, can be any combination of multiple splicing modes: horizontal screen / vertical screen / field
shape, and support large-scale parallel use;
* Input maximum support 17280 × 4320P30, 11520 × 6480P30, backward compatible. Output maximum single channel support 1920 ×1080P60;
* Support for fixed EDID, can also be customized resolution of independent graphics cards;
* Point-to-point splicing, no stretching, no distortion, no need for compression processing of the input source, clear picture.
* Output support for the first line of rotation 180 °;
* Support infrared remote control, serial RS232, network interface WEB interface control;
* Support software standby, better control and management, improve life and safety;
* With the use of open window software, to achieve large screen splicing at the same time, to meet the multi-screen display on the wall at the same time;
* Using 28nm process high-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.
* Low power consumption, energy saving and environmental protection design, without any external cooling measures, extremely high reliability.

Product Specifications
Product Name BIT-VWC-U2-436
Input Interface 4×HDMI 2.0,4×DP 2.0(HDMI/DP Either/or input)
Input Maximum Resolution 4×9:17280×4230P30
5×7:13440×5400P30
6×6:115200×6480P30
Color format RGB444,YUV444,YUV422,YUV420
Output Interface 36×HDMI 1.3
Output Resolution 1920×1080P60
Control Method Remote Control, RS232 Serial Port, Web
Audio HDMI Audio Follow-Out, 3.5MM Audio Separation
Power supply 220V
Power Consumption 80W
Product DimensionsSize L×W×H: 483mm×200mm×100mm
Package Weight 7.5KG
Accessory List 1×220V power cord, 4×HDMI cable or DP cable, 1×Phoenix terminal, 1×Blue network cable, 1×IR infrared head, 1×Remote control
After-sales service 3 years
Features at a Glance
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing

Company Profile
4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing 4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing 4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing 4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing 4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing 4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
FAQ
Why Choose Bitvisus?
  • Our own warehouse ensures shipping within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Extensive product range including Video Wall controllers, Multiscreen Expanders, Multiviewers, Embedded Projector Fusion systems, demonstrating our R&D expertise and quality assurance
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
  1. Contact us via email or chat (TM, WhatsApp, Skype) with your order requirements
  2. We will provide a proforma invoice based on your specifications
  3. After payment confirmation, we will expedite delivery
