Specifications
Brand Name :
Renchun
Model Number :
HWJ600
Place of Origin :
China
MOQ :
one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
Touch screen and control cabinet packed in wooden box.;The mechanical parts bared in container
Supply Ability :
50 sets per year
Machine Wire welding :
V Wire Screen Welded
Bearing :
Special bearing
Application :
Liquid seperation
Color :
Blue / Red / White / Yellolw as requirements
Electric system :
Mitsubishi E60 control system
Feature :
Low noise,low energy consumption,safe
Aperture min :
0.05mm
Description

High Precision V Shaped Water Well Screen Welding Machine Ajustable Slot

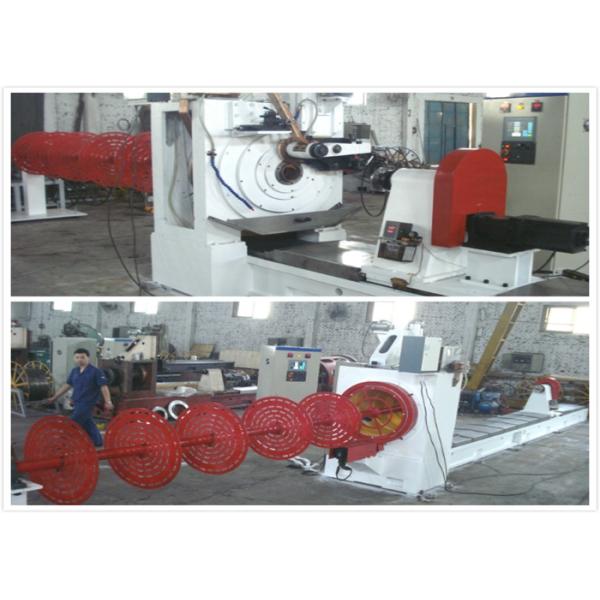

The machine is combined by lathe,welding control cabinet, transformer roller and wire press unit.NC control system,servo motor drive, high welding precision. It has high precision of standard welding slot distance.

The machine manufacture profile wire screen products. The profile wire screen consisit of profile wire and support rod . The profile wire is wound around the support rods.

Water well Screen Welding Machine good performance in water treament by using well screen products.

Water well screen welding machineParameters

Item name Water Well Screen NC Wire Mesh Screen V Wire Screen Welded Machine Filter tube diameter 100mm-650mm
Rod and wire diameter 1.2mm-5mm Filter tube Max length 6000mm
Material stainless steel;carbon steel Mitsubishi double drive servo motor 7kw two sets;5.5 one set
Welding transformer power 200 KVA Welding speed 6-30 rpm
Slot (ajustable) 0.05mm-20mm Slot precision ±0.02mm
Application water well screen manufacturing Model number HWJ600
Origin Hebei ,China Sea port Tianjin

Equipment characteristics

1. Best configuration equipped.


2. Feature:low noise,low energy consumption,steady function and safety.


3. Professional wedge wire screen/wire wrapped screen welding machine manufacture


4. Electric system adopts Mitsubishi E60.

5. The feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drives.

Characteristics

  • Low noise
  • Low energy consumption
  • Safety
  • Steady function

The slot clearance can be adjusted as requirement.
The data displayed on the screen can be reset easily.
Lock-expanding ring is equipped on the machine.
After the operator feeds the longitudinal wire,expand and lock the wire with the ring.
I t saves time and material during unload the filter tube.

We satisfy our clients by the perfect design,new technology,practical function and easy operation. We have obtained the patent for our technology.
