Water Well Screen Welding Machine 650MM Tube Diameter 6000MM Length 0.05mm Slot
Water Well Screen Welding Machine 650MM Tube Diameter 6000MM Length 0.05mm Slot
Specifications
Brand Name :
Renchun
Model Number :
HWJ650
Place of Origin :
China
MOQ :
one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per year
Delivery Time :
30-90 days
Packaging Details :
Touch screen and control cabinet packed in wooden box.;The mechanical parts bared in container
Machine welding products :
Water Well Wedge Wire Screen
Max length of screen :
6000mm or 4000mm
Application :
Waste water filtration
Color :
White and red or as request
Electric system :
Mitsubishi E60 control system
Feature :
Low noise,low energy consumption,safe
Warranty :
One year
Description

Wedge Wire Screen Welding Machine 650MM Tube Diameter 6000MM Length 0.05mm Slot

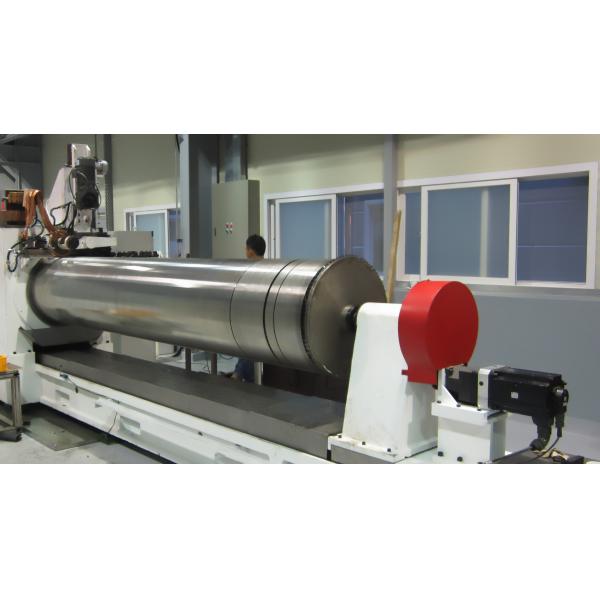

HWJ650 Type wedge wire screen welding machine popular used in water and waste water treatment applications for producing wedge wire screen tubes. The screens welded by the macine with accurate slot and filtering rates. High corrosion resistance and long life water well screens.

It can be made into all kinds shaped screening filtering device. It produced by advanced welded technology, the sieve surface has the highest screening efficiency, the strongest earthquake tensile ability, the least of maintenance requirements.

HWJ600 Wedge Wire Screen Machine description

Model type : HWJ 650 Wedge Screen Welding Machine

Another name : Profile Wire Wrapped Screen Welding Machine and V Wire Screen Welding Machine.

Applications : Water treatment

Servo motor : Three sets Mitsubishi

Length screen max : 4000mm;6000mm

Parameters for water well screen welding machine

Item name Water Treatment Wedge Wire Screen Pipe Welding Machine With 6000mm Tube Lenth Filter tube diameter 100mm-650mm
Rod and wire diameter 1.2mm-5mm Filter tube Max length 6000mm
Material stainless steel;carbon steel Mitsubishi double drive servo motor 7kw two sets;5.5 one set
Welding transformer power 200 KVA Welding speed 6-30 rpm
Slot (ajustable) 0.02mm-20mm Slot precision ±0.02mm
Application water well screen manufacturing Model number HWJ600
Origin Hebei ,China Sea port Tianjin

Materials of wedge wire : 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire
