Specifications
Brand Name :
Renchun
Model Number :
HWJ600
Place of Origin :
China
MOQ :
one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
.Touch screen and control cabinet packed in wooden box.;The mechanical parts bared in container
Supply Ability :
50 sets per year
Servo motor :
Mitsubishi servo motor
Bearing :
Imported bearing
Application :
Water well screen
Screen diameter :
100mm to 650mm
Electric system :
Mitsubishi E60 control system
Feature :
Low noise,low energy consumption
Warranty :
Lifetime technical support
Description

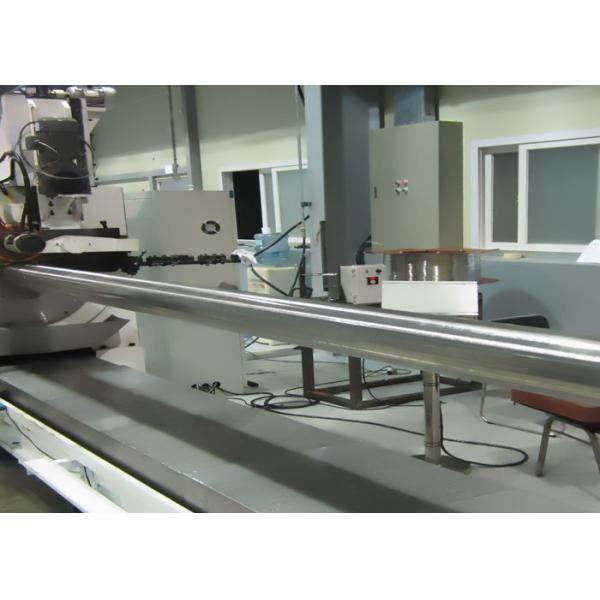

HWJ 600 Water Well Screen Welding Machine ,100MM Dia Welded Wire Mesh Machine​

Water well Screen Pipe Welding Machine also named by Wire Wrapped Screen Welding Machine and V Wire Screen Welding Machine.

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Type : HWJ 600 wedge wire screen welding machine

Wire material : stainless steel

Screen shape: screen cylinder

Dimention:11000mm * 1100mm * 2700mm

Max lenth of screen tube: 6 meter

NC control system:Mitsubishi E60

Aperture:0.1mm min

Parameters for water well screen welding machine

Item name stainless steel water well scren welding machine Filter tube diameter 100mm-650mm
Rod and wire diameter 1.2mm-5mm Filter tube Max length 6000mm
Material stainless steel;carbon steel Mitsubishi double drive servo motor 7kw two sets;5.5 one set
Welding transformer power 200 KVA Welding speed 6-30 rpm
Slot (ajustable) 0.1mm-20mm Slot precision ±0.03mm
Application water well screen manufacturing Model number HWJ600
Origin Hebei ,China Sea port Tianjin

It has resistant to pressure temperature aging corrosion can be applied for different kinds of fluid.

Material 316L, 304, can be made as per your option.

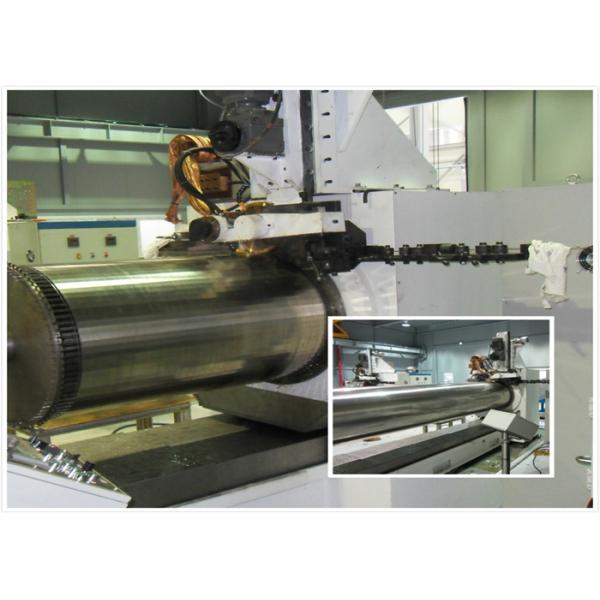

HWJ 600 Water Well Screen Welding Machine , 100MM Dia Welded Wire Mesh Machine

Our advantages

  • Twenty-four hous inquiry .
  • We offer installation services and train workers for customer for free .
  • Professional engineering working teams.
  • Our factory with over twenty years manufacturing experiences in the filed .
  • Guarantee lifelong technical support .

Global market

Our equipments widely exported to USA,Canada,Russia,Italy,France,Turkey,India,Korea,Japan,etc countries.
