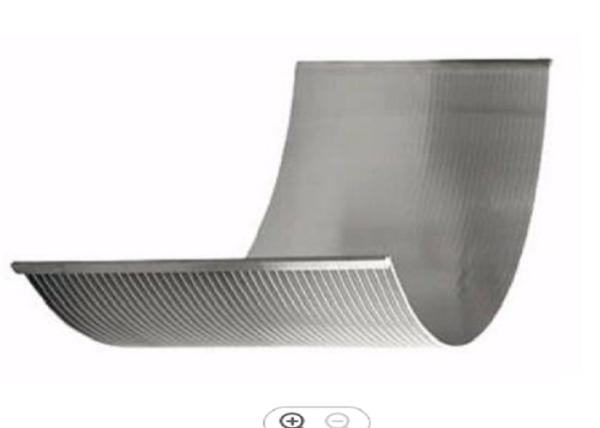

ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage
ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage
Specifications
Brand Name :
STD Filter
Model Number :
STD SBS-001
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Type :
separation,Filtrating
Feature :
Corrosion Resistance
Usage :
Sieve
Technique :
Welding
Application :
Industrial filtration
Filter rating :
99%
Slot size :
0.1-6.0 mm
Material :
Stainless Steel316,304,AISI 304,316. SUS 304 or 316
Description

Stainless Steel 304/316 Customized Sieve Bend Screen Accessory For Food and Beverage



The Introduction

STD Filter offers Wedge Wire Screens (Profile Wire Screens) in a number of different applications within this wide-ranging industry. We utilise the Profile Wire technology, which has successfully proven itself against the conventional mesh design.
Principally in the corn starch market segment, we offers DSM Screens of very fine slot openings which are manufactured to the highest quality. Slot openings down to 20µm can be precisely manufactured and inspected using our unique in-house optical measurement system. Our expertise in fine slot screens also enables us to manufacture Candle Filter Screens for use in breweries. So for whatever application you have that requires Wedge Wire Screens, feel free to Contact Us for a screening solution.

Norminal Diameter(in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar) Nominal Diameter (in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar)
2-3/8” 45 60.3 4 90
2-7/8” 58 73.0 4 90
4-1/2” 100 114.3 5 14 4-1/2” 100 114.3 8 60
5-1/2” 124 139.7 7 8 5-1/2” 124 139.7 10 50
6-5/8” 150 168.3 9 20 6-5/8” 150 168.3 12 50
8-5/8” 197 219.1 15 15 8-5/8” 197 219.1 20 60
9-5/8” 222 244.5 17 9 9-5/8” 222 244.5 25 60
10-3/4” 247 273.1 20 10 10-3/4” 247 273.1 30 45
12-3/4” 298 323.9 24 10 12-3/4” 298 323.9 37 40
13-3/8” 316 339.7 30 9
16 378 406.4 34 9
20 476 508.0 53 9
Applied for shallow well or general screen

Greater strength, larger filter area

Applied for medium depth wells or deep wells

Wires and Rods Information

Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :

The most common wire

ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage
The most common support rod
ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage

The Advantage of The Wedge Wire Filter
1.Customized shape and slot: can meet the special needs
2.Precision filtration
3.Long work time
4.The stainless steel:be resistance to crosion and abrasion.
5.High wear resistance

The Usage accasions:

The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Some of the applications where profile wire screens can be found include, but not limited to the following:

Corn Wet Milling
Malting Processes
Winery Processes
Sugar Processes
Brewing Processes


The Details

ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage

ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and BeverageID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage
ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage


The Package:

ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage

The Delivery
ID 100mm Stainless Steel 304 Sieve Bend Screen Corrosion Resistance For Food and Beverage
