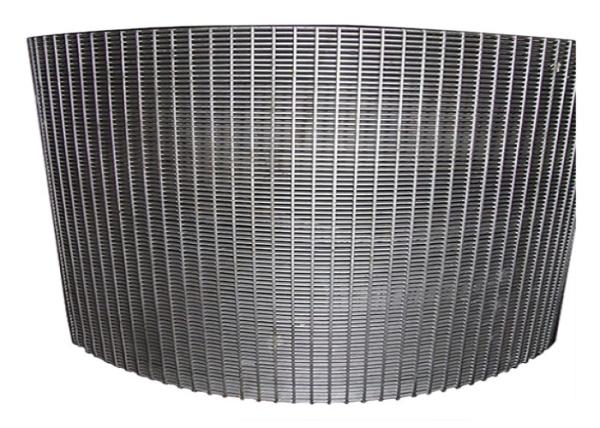

CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
Specifications
Brand Name :
STD Filter
Model Number :
STD SBS-002
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Material :
Stainless Steel316,304,AISI 304,316. SUS 304 or 316
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Usage :
Sieve
Type :
separation,Filtrating
Feature :
Corrosion Resistance
Technique :
Welding
Application :
Industrial filtration
Filter rating :
99%
Slot size :
0.1-6.0 mm
Description

Stainless Steel 304/316 Customized Sieve Bend Screen Accessory For Sand and Gravels



The Introduction

In general terms the Sieve Bend Screen is used where there is a high proportion of water with the solids. It is therefore suitable, for example, as part of the process to remove contaminants from sand or to carry out a dewatering function in advance of a slurry centrifuge when dewatering coal fines.

The material that passes through the screen surface is approximately half the size of the slot aperture.

The shape of the particle, the volume of undersize and the amount of near size material in the feed determines the separation size as well as the volume that passes through the screen.

A Sieve Bend benefits over a flat sieve screen as the curved panels induce centrifugal forces that force the slurry onto the screen surface.

The dewatering ability of the screen is determined by the percentage of open area. The wedge wire profiles used provide up to 50% more open area because of the narrower wire profiles.

Norminal diameter(in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar) Nominal Diameter (in) ID (mm) OD (mm) Wt (Kg/m) Collapse Strength (bar)
2-3/8” 45 60.3 4 90
2-7/8” 58 73.0 4 90
4-1/2” 100 114.3 5 14 4-1/2” 100 114.3 8 60
5-1/2” 124 139.7 7 8 5-1/2” 124 139.7 10 50
6-5/8” 150 168.3 9 20 6-5/8” 150 168.3 12 50
8-5/8” 197 219.1 15 15 8-5/8” 197 219.1 20 60
9-5/8” 222 244.5 17 9 9-5/8” 222 244.5 25 60
10-3/4” 247 273.1 20 10 10-3/4” 247 273.1 30 45
12-3/4” 298 323.9 24 10 12-3/4” 298 323.9 37 40
13-3/8” 316 339.7 30 9
16 378 406.4 34 9
20 476 508.0 53 9
Applied for shallow well or general screen

Greater strength, larger filter area

Applied for medium depth wells or deep wells

Wires and Rods Information

Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :

The most common wire

CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
The most common support rod
CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal

The Advantage of The Wedge Wire Filter
1.Customized shape and slot: can meet the special needs
2.Precision filtration
3.Long work time
4.The stainless steel:be resistance to crosion and abrasion.
5.High wear resistance

The Details

CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal

CE Certified OD 508mm Curved Johnson Wedge Wire Screen For CoalCE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal

The Usage accasions:

The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal


The Package:

CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal

The Delivery
CE Certified OD 508mm Curved Johnson Wedge Wire Screen For Coal
