0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
0-42MPa Pump Head Pressure Ion Exchange Chromatography Instrument Wayeal IC6200
Specifications
Brand Name :
Wayeal
Model Number :
IC6200
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Pieces Per Month
Delivery Time :
30 days
Packaging Details :
Wooden Case
Product Name :
Ion Chromatography Instrument
Application :
Drinking Water, Ground Water
Flow Rate Setting Error :
220V, 50~60Hz
Pressure display accuracy :
0.01Mpa
Baseline Noise :
≤0.1%FS
Pump Pressure :
0~35PMPa
Description

Wayeal IC6200 0-35MPa Pump Head Pressure Ion Exchange Chromatography Instrument

Introduction of Ion Chromatography Instrument

Ion chromatography is a method for separating and quantifying substances which exist as ions in an aqueous solution.The electrolyte solution,called as the mobile phase,is constantly pumped through a column packed with an ion exchange resin,the stationary phase.Sample ions injected into the mobile phase are separated based on the difference in their affinity with ion exchange resin.An electrical conductivity detector is used as the detector,and each ion is quantitatively analyzed.

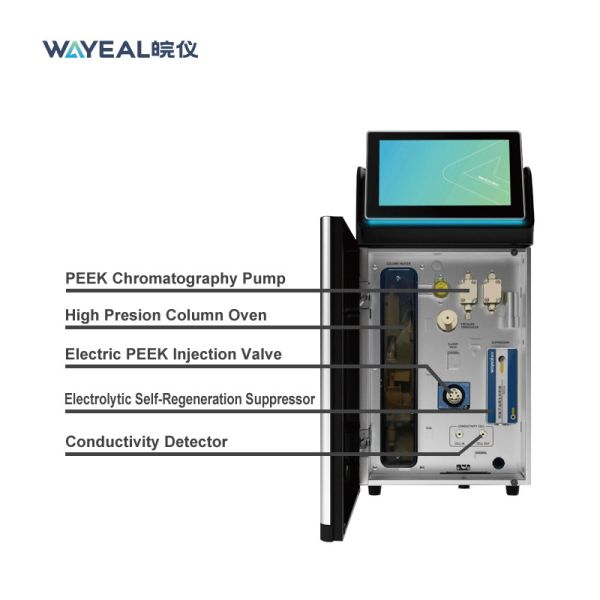

Features of Ion Chromatography Instrument

1. Full PEEK pump and electric injection valve.

2. All-plastic non-metallic flow path

3. Highly precise teperature control of the whole system.

4. Electrolytic self-regenerating membrane suppressor.

5. High precision temperature-controlled conductivity detector

6. Powerful and convenient chromatography workstation.

Parameters of Ion Chromatography Instrument

System Parameter

Qualititative Repeatability

≤0.05%

Quantitative Repeatability

≤0.2%

Pump System

Flow Rate (Full PEEK Pump)

(0.001–12.000) mL/min

Pump Head Pressure Resistance

(0–42) MPa

Flow Rate Set Error

≤ ±0.1%

Flow Rate Stability

≤ ±0.1%

Pressure Display Resolution

0.01 MPa

Suppressor

Suppressor Type

Electrolytic self-regenerating membrane suppressor

Constant Current Range

0–500 mA, adjustable in increments of 1 mA

Column Oven

Temperature Range

Ambient +5°C to 85°C

Temperature Stability

±0.01°C

Compatibility

Compatible with 250 mm and 150 mm length columns

AS2800 Series Autosampler

Quantitative Repeatability

< 0.5% RSD (full-loop injection)

Sample Positions

48 positions / 11 positions

Wash Ports

2 ports (fine wash and coarse wash)

Operating Temperature

10–40°C

Vial Types

5mL/ 100mL

Injection Volume

10 µL – 4000 µL (depending on sample loop size)

Single Injection Cycle Time

Approx. 20s (depending on wash time and injection volume)

Injection Mode

Full-loop injection

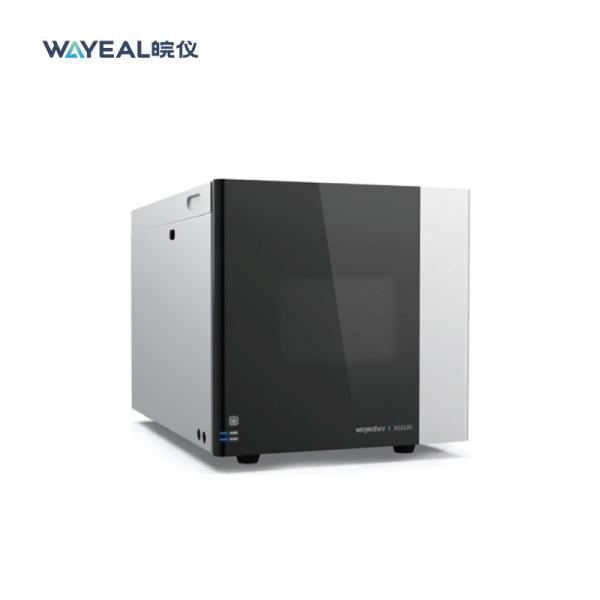

AS3110 Series Autosampler

Sample Capacity

64/120 positions

Cooling Temperature Range

4–30°C

Repeatability

< 0.3% RSD (full-loop injection, injection volume > 5 µL)

Syringe Specifications

Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL

Sample Loop Specifications

Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL

Carryover (Cross Contamination)

< 0.01%

Industry Application

Determination of ionic species in plating baths

Determination of acidic thermal decomposition products of polymer materials

Determination of ionic contamination on critical components
