CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
CFR 21 PART 11 Compatible High-Precision Ion Chromatography Analyzer
Specifications
Brand Name :
Wayeal
Model Number :
IC6200
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Pieces Per Month
Delivery Time :
30 days
Packaging Details :
Wooden Case
Product Name :
Ion Chromatography Instrument
Max Pressure :
42MPa
Flow Rate Range :
0.001~12.000mL/min
Qualitative Repeatability :
≤0.05%
Quantitative Repeatability :
≤0.2%
Flow Stability :
≤±0.1%
Description

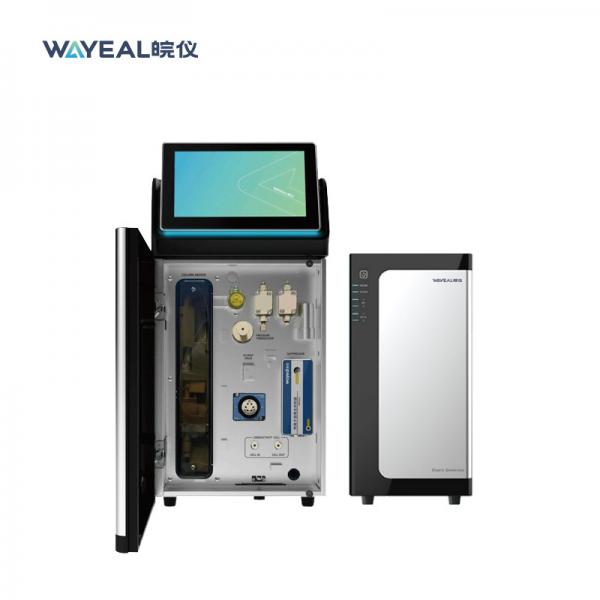

Wayeal Laboratory Analytical Ion Chromatography Instrument With Autosampler

Introduction of Ion Chromatography Instrument

Ion chromatography instrument is a type of high performance liquid chromatograph, so it is also known as high performance ion chromatography (HPIC) or modern ion chromatography. IC systems can analyze particles such as anions, cations, organic salts, and proteins. They are used in environmental, manufacturing, food, pharmaceutical, and chemical industries.

Parameters of Ion Chromatography Instrument

System Parameter

Qualititative Repeatability

≤0.05%

Quantitative Repeatability

≤0.2%

Pump System

Flow Rate (Full PEEK Pump)

(0.001–12.000) mL/min

Pump Head Pressure Resistance

(0–42) MPa

Flow Rate Set Error

≤ ±0.1%

Flow Rate Stability

≤ ±0.1%

Pressure Display Resolution

0.01 MPa

Suppressor

Suppressor Type

Electrolytic self-regenerating membrane suppressor

Constant Current Range

0–500 mA, adjustable in increments of 1 mA

Column Oven

Temperature Range

Ambient +5°C to 85°C

Temperature Stability

±0.01°C

Compatibility

Compatible with 250 mm and 150 mm length columns

AS2800 Series Autosampler

Quantitative Repeatability

< 0.5% RSD (full-loop injection)

Sample Positions

48 positions / 11 positions

Wash Ports

2 ports (fine wash and coarse wash)

Operating Temperature

10–40°C

Vial Types

5mL/ 100mL

Injection Volume

10 µL – 4000 µL (depending on sample loop size)

Single Injection Cycle Time

Approx. 20s (depending on wash time and injection volume)

Injection Mode

Full-loop injection

AS3110 Series Autosampler

Sample Capacity

64/120 positions

Cooling Temperature Range

4–30°C

Repeatability

< 0.3% RSD (full-loop injection, injection volume > 5 µL)

Syringe Specifications

Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL

Sample Loop Specifications

Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL

Carryover (Cross Contamination)

< 0.01%

Performance of Ion Chromatography Instrument

1. Highly accurate and efficient temperature-controlled conductivity cell ensures the stability and high sensitivity of the assay, as well as the stability of the instrument under any laboratory conditions.

2. Simple workstation interface, easy to use processes, and full of detailed management.

3. Automatic and intelligent functions such as bottle shortage alarm, liquid leakage alarm and door opening/closing sensor light to ensure reliable operation of the equipment.

4. The full system thermostat and temperature compensation function allows you to carry out your analytical work without the distraction of controlling the temperature conditions in the laboratory and without the need for air conditioning.

5.Tandem dual plunger mode with electronic pulsation suppression technology provides high precision, low pulsation and low drift drenching solutions.
