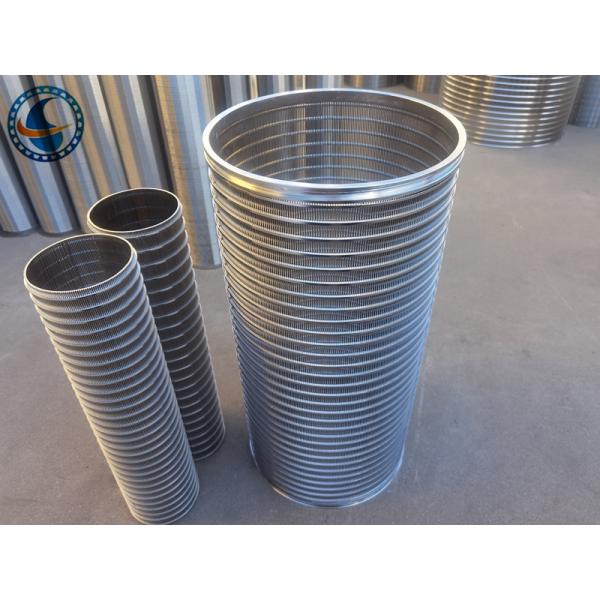

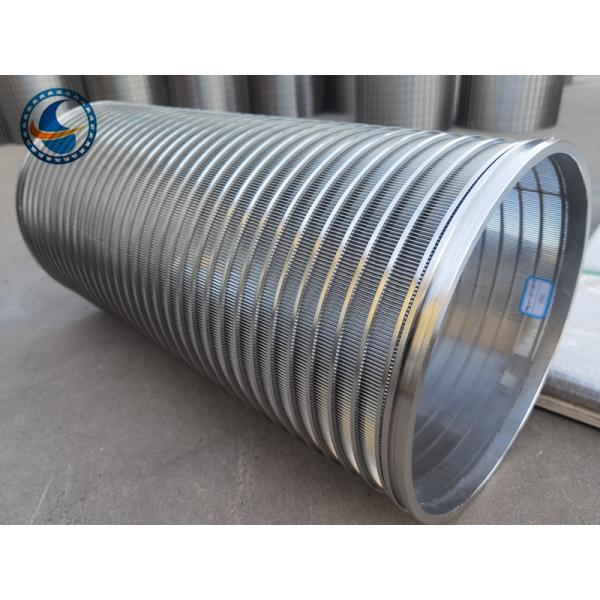

Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Welded Stainless Steel 304 Self Cleaning Wedge Wire Screen
Specifications
Brand Name :
Hengyuan
Model Number :
HY122007
Certification :
CE,ISO,CIQ,CO,FORM E,CCPIT
Place of Origin :
Hengshui City,Hebei Province
MOQ :
2 Pieces
Price :
USD 50-200 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
More than 20 PCS per day
Delivery Time :
5-8 work day
Packaging Details :
Wooden box
Name :
Wedge Wire Screen
Material :
Stainless Steel 304
ID :
255mm
Length :
551mm
Slot :
0.8mm
Wire size :
1.5*2.5mm Vee wire
Support rod :
3*5mm Vee wire
Distance of rods :
17mm
Filter type :
From Inside To Outside
Surface :
Acid washing
Description

Stainless Steel Wedge Wire Screen

Stainless Steel Wedge Wire Screen is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The working surface is 100% smooth which eliminates blinding and pegging.

Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

Wedge wire screens are either flow-out-to-in OR flow-in-to-out.

Wedge Wire Screen Normal Sizes:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

 Type of end connection

29,38,57,63,76,89,108,

150,168,320,600 etc

500,1000,2000 etc

 0.05,0.1,0.25,0.5,1.0 etc

Welded rings, male/female threaded coupling,

flange,closed up and so on

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø25mm-ø1300mm. The length from the 100mm-6000mm.

Application of wedge wire screen:

  • Waste water treatment
  • Petrochemical
  • Coatings
  • Mineral and aggregate processing
  • Pulp and paper
  • Chemical
  • Solid-liquid separation
  • Food and beverage

Welded Stainless Steel 304 Self Cleaning Wedge Wire ScreenWelded Stainless Steel 304 Self Cleaning Wedge Wire Screen
