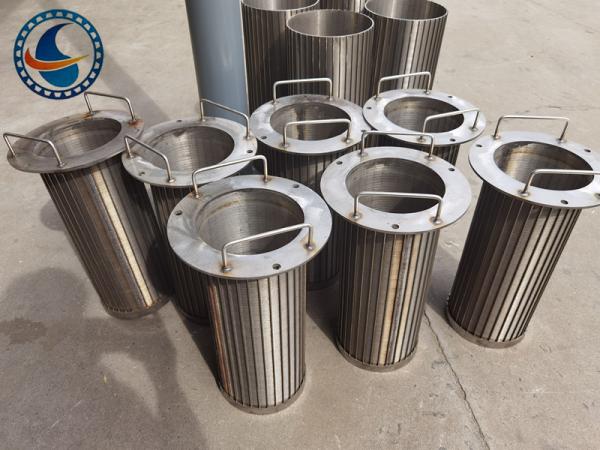

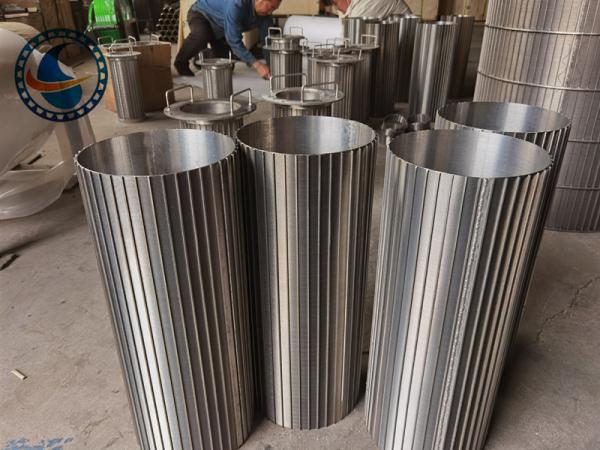

Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Stainless Steel 304 Reverse Wedge Type Screen Tube 600mm Length For Oil Gas
Specifications
Brand Name :
Hengyuan
Model Number :
HY062202
Certification :
CE,ISO,CIQ,CO,FORM E,CCPIT
Place of Origin :
Hengshui City,Hebei Province
MOQ :
2 Pieces
Price :
USD 50-200 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
More than 20 PCS per day
Delivery Time :
5-8 work day
Packaging Details :
Wooden box
Name :
Profile Reverse Wedge Type Screen Tube
Material :
Stainless Steel 304
ID :
200mm
Length :
600mm
Slot :
0.25mm
Wire size :
1.5*2mm Vee wire
Support rod :
2*3mm Vee wire
Distance of rods :
15mm
Filter type :
From Inside To Outside
Ends :
Flange
Description

SS304 Profile Reverse Wedge Type Screen Tube

Hengyuan offers a wide array of wedge wire screen tube for water treatment. Please click on each product to find out more on each one.

Wedge Wire Drum Screen Filter are made from Vee shaped profile wire, which is spirally wound around a cage of longitudinal support rods.

Each intersection point of these wires is fusion welded, with an unique welding process.

The pitch of winding gives different spacing between two adjacent turns of wire.

This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Wedge Wire Drum Screen Filter offers great strength, precision, long service life and a wide range.

Profile Wedge Vee-Wire Screen Tube Normal Sizes:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

 Type of end connection

29,38,57,63,76,89,108,

150,168,320,600 etc

500,1000,2000 etc

 0.05,0.1,0.25,0.5,1.0 etc

Welded rings, male/female threaded coupling,

flange,closed up and so on

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm.

Advantages of Profile Wedge Vee-Wire Screen Tube:

1. Many wing pieces, no winding, highly efficient rotary drum type rotor.
2. Pulp consistency can reach 2.5~4%, reduce water consumption and fiber loss of production process.
3. Heavy impurity discharge tube, ensure the security of the sieve drum operation.
4. Advanced structure, strong and durable, easy dismounting, low energy consumption, less wastage fiber.
5. Equipped with automatic oiling and mechanical seal water monitoring device, high degree of automation.
6. Compact structure, small power, high output.
7. 1 year warranty and best after-sale service.
