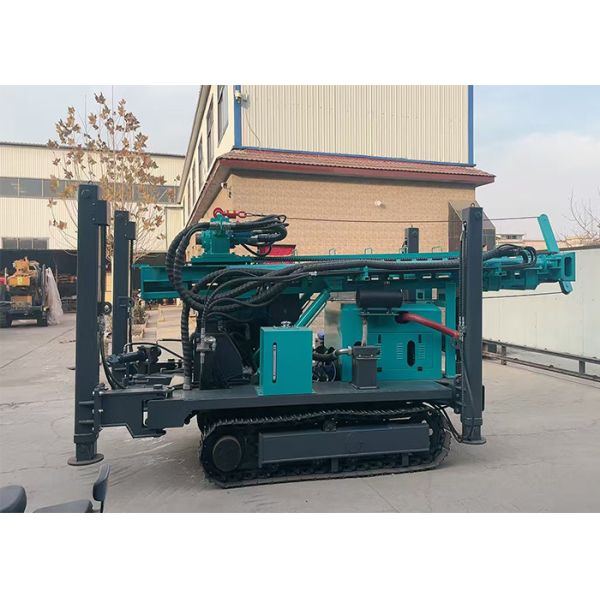

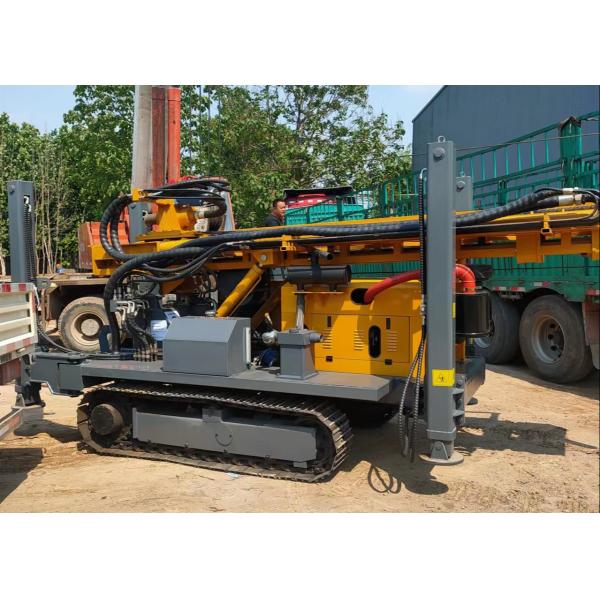

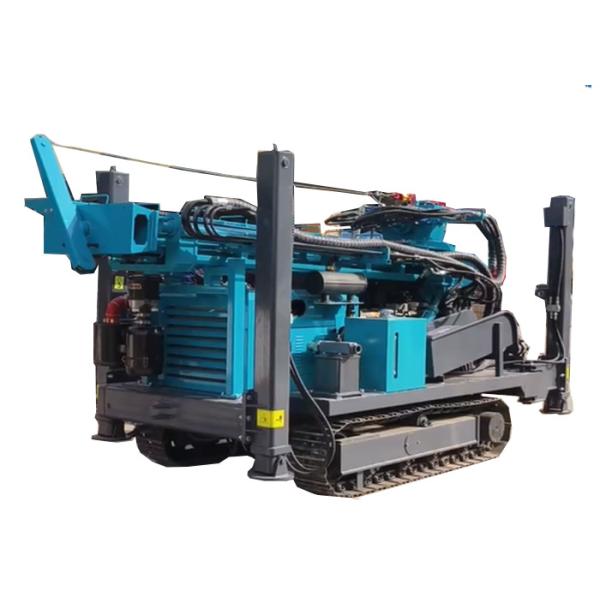

40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas
40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas
40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas
40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas
Specifications
Brand Name :
SHITAN
Model Number :
ST-400
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
1000set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Fast forward speed :
40m-min
Maximum turning torque :
9900
Drill pipe diameter :
89mm
High leg travel :
1.35m
Climbing degree :
30
Overall dimension :
5.6m×2m×2.5m
Engine :
Six cylinder engine
Drilling Depth :
Max 400m
Description
ST400 Pneumatic Drill

The ST400S crawler-type water well drilling rig is powered by a Yuchai 92KW six-cylinder engine, delivering vigorous performance and an axial force of 5T to ensure precise and efficient drilling. The rig utilizes 6-meter-long drill rods (recommended diameter: 89mm) and a massive torque of 9900N·m, effortlessly handling drilling tasks up to 400 meters deep. With high-support legs offering a 1.35m stroke, it excels in complex terrains, making it the preferred choice for water resource development and infrastructure construction.

Advantages

1.Energy-Efficient Operation – Air consumption of 16-55m³/min and compatible working air pressure of 1.25-3.5Mpa, optimizing energy use and reducing operational costs.

2.Compact & Portable Design – Compact dimensions (5.6m×2m×2.5m) and a weight of just 10T, ensuring easy transportation and deployment.

3.Smart & Labor-Saving Control – User-friendly console allows operation by just 1-2 personnel, minimizing labor requirements.

4.Large-Diameter & Deep-Hole Capability – Capable of drilling 305mm large-diameter wells while achieving 400m deep-hole drilling, ideal for water wells, geothermal wells, and more.

Technical parameters

Product Name: ST-400 Deep Water Well Drilling Rig
Depth: 100-400m
Power Source: Diesel Engine Yuchai93kw
Drilling Hole Diameter: 75-305mm
Drilling Rod Diameter: 102mm
Size: 5.6m×2m×2.5m

Adaptive conditions:

Loose layer and bedrock

Drilling method:

Top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling

Transportation method

  • Ships within3-5business days
  • International shipping available
  • Shipping cost varies based on location
