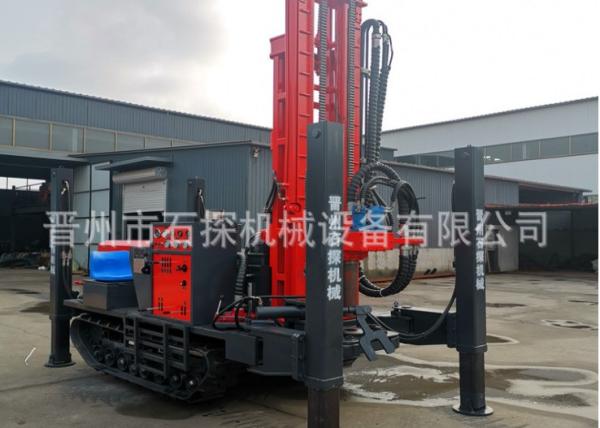

Customized Pneumatibore Well Drilling Machine With Diesel Engine
Customized Pneumatibore Well Drilling Machine With Diesel Engine
Customized Pneumatibore Well Drilling Machine With Diesel Engine
Customized Pneumatibore Well Drilling Machine With Diesel Engine
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST 200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Product Name :
ST 200 72kw Diesel Engine Customized Pneumatic Drilling Rig
Machine Type :
Drilling Equipment
Hole Diameter :
Customized
Drilling Depths :
200 meters
Condition :
New
Weight :
8.9 T
Warranty :
12 months
Rotation torque :
7500Nm, 983 N.m, 4200N.m, 3400mm
Air consumption :
16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic meter/min
Description
ST 200 72kw Pneumatic Drilling Rig Diesel Engine Customized
Product Specifications
Attribute Value
Product Name ST 200 72kw Diesel Engine Customized Pneumatic Drilling Rig
Model Number ST 200
Machine Type Drilling Equipment
Certification ISO
Hole Diameter Customized
Drilling Depths 200 meters
Condition New
Weight 8.9 T
Warranty 12 months
Product Description

The ST 200 Pneumatic Drilling Rig is designed for industrial and agricultural water conservancy engineering applications. It excels in drilling rock wells, monitoring wells, and exploration wells, with particular effectiveness in geothermal heating hole drilling. The rig also meets project requirements for engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, and cornerstone drilling.

Technical Parameters
Model: ST 200
Type: Rotary Drilling Rig
Power Type: Diesel
Dimensions: 6400MM × 2250MM × 2700MM
Weight: 5800KG
Drilling Diameter: 90-152mm
Depth: 25M
Rotary Speed: 0-90rpm
Air Consumption: 13-20m³/min
Key Advantages
  • Enhanced Safety: Powered by compressed air for safer operation
  • High Efficiency: Unique air circuit layout with high-precision components for superior performance
  • Compact Design: Large power in small footprint for easy movement in confined spaces
  • Versatile Operation: Horizontal and vertical rotating devices enable drilling at various angles
  • Powerful Performance: Independent motor-driven propulsive force mechanism with multi-head worm and turbine drive
Primary Applications

Ideal for air conditioning hole drilling, household water wells, and small water conservancy projects. Its compact size allows access to small spaces, making it suitable for residential yards and agricultural applications.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
