Diesel Engine Hydraulic Rock Drilling Machine 105-305mm Drilling Hole Diameter
Diesel Engine Hydraulic Rock Drilling Machine 105-305mm Drilling Hole Diameter
Diesel Engine Hydraulic Rock Drilling Machine 105-305mm Drilling Hole Diameter
Diesel Engine Hydraulic Rock Drilling Machine 105-305mm Drilling Hole Diameter
Specifications
Brand Name :
SHITAN
Model Number :
ST180
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
1000set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Drilling Hole Diameter :
105-305mm
Drilling Depth :
0-180M
Gas consumption :
16-55m³/min
Drill pipe diameter :
76mm
Fast forward speed :
40m-min
Lifting force of small auxiliary winch :
1.2T
Walking speed :
2.5km/h
Overall dimension :
3.4*1.8*2.3m
Description
Diesel Engine Hydraulic Rock Drilling Machine 105-305mm Drilling Hole Diameter
Key Specifications
Drilling Hole Diameter 105-305mm
Drilling Depth 0-180M
Gas consumption 16-55m³/min
Drill pipe diameter 76mm
Fast forward speed 40m-min
Lifting force of small auxiliary winch 1.2T
Walking speed 2.5km/h
Overall dimension 3.4*1.8*2.3m
ST180 Water Well Drill Machine
One Rig, Multiple Uses
✅ Versatile Drilling: Switch between DTH hammer (1.25-3.5MPa) and mud circulation--no extra machines needed.
✅ Energy Efficient: Optimized air consumption (16-55m³/min) reduces long-term operating costs.
✅ High ROI: Combines deep drilling, speed, and terrain adaptability for quick payback!
Technical Parameters
Drilling method: Top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling
Working wind pressure: 1.25-3.5Mpa
Gas consumption: 16-55m³/min
Drill pipe diameter: 102mm/114mm/89mm
Maximum rotation speed: 85/170r/min
Fast forward speed: 40m/min
Climbing ability: 30°
Lifting force of small auxiliary winch: 1.2T
Weight: 4.5T
Footage efficiency: 10-35m/h
Key Advantages
  • With an impressive drilling capacity of 180 meters depth and 105-305mm diameter range, this rig handles both industrial water wells and geothermal projects with exceptional efficiency.
  • The innovative dual-mode drilling system combines hydraulic top drive rotation with optional DTH hammer or mud circulation methods for maximum versatility across different geological conditions.
  • Powered by a robust 55KW diesel engine, this machine delivers consistent high performance even in the most demanding drilling operations.
  • The heavy-duty rubber crawler mounting provides superior traction and stability, enabling operation on challenging terrains with up to 30° slope capability.
  • Despite its powerful performance, the rig's compact 3.4×1.8×2.3m dimensions and lightweight 4.5T design allow for easy transportation and setup in confined workspaces.
Packing and Shipping Information
  • ST180 Pneumatic Drill Rig
  • Drill Bits/Drill pipe, Tools and others
  • Instruction Manual
  • Product will be shipped within 3-7 business days after order confirmation.
  • Shipping cost will be calculated based on the delivery address.
  • Tracking information will be provided once the product is shipped.
  • Delivery time may vary depending on the destination.

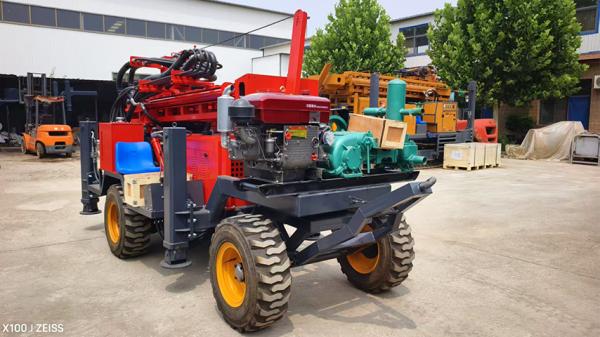

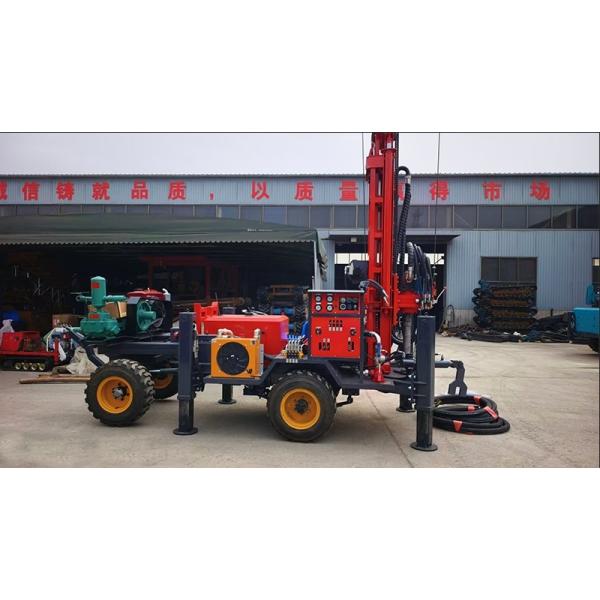

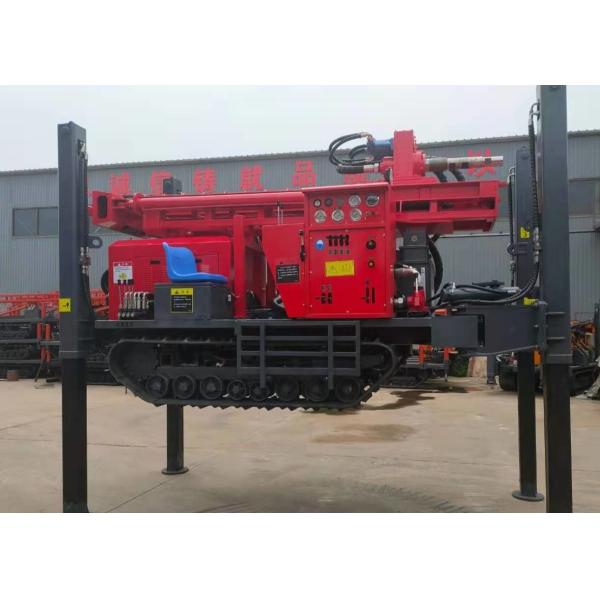

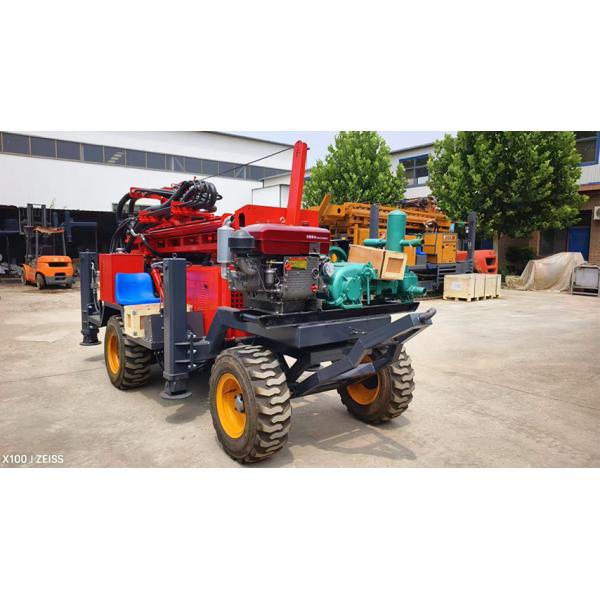

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
