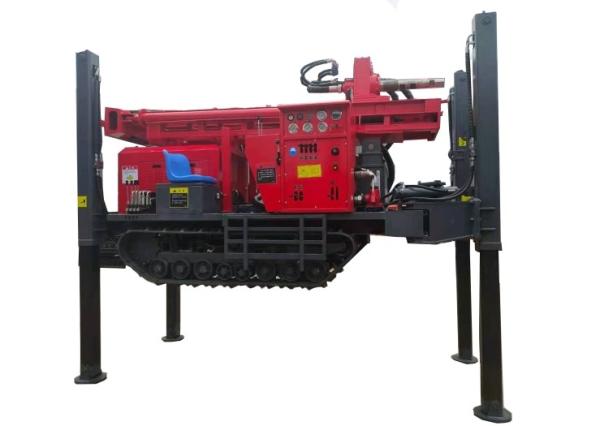

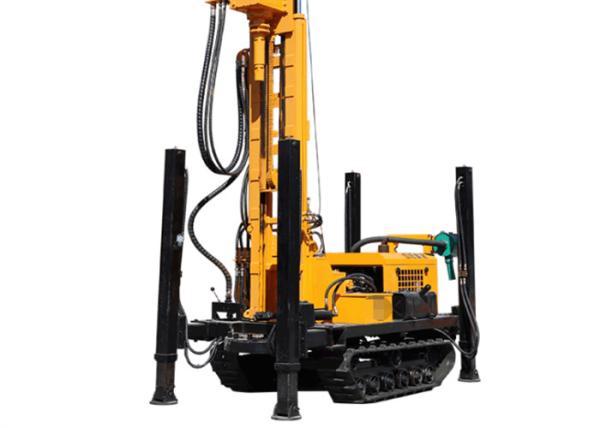

180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine
180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine
180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine
180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine
Specifications
Brand Name :
Shitan
Model Number :
ST-180
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
customized quotation list
Packaging Details :
wooden box
Delivery Time :
10 -15 days after payment
Payment Terms :
TT,western union
Supply Ability :
2000 sets per year
Walking Speed :
2.5km/h
Product Name :
Pnumatic Water Well Drilling Rig Machine
Drilling Depth :
180m
Lifting Force :
16 T
Engine :
Xidong 55 KW
Footage Efficiency :
10-35m/h
Working Wind Pressure :
1.25-3.5 Mpa
Drilling Diameter :
105-305mm
Description

Product Description:

ST 180 water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and

civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc..

It is especially suitable for water intake in mountainous and rocky strata.

Features:

  • Drilling depth: 180m
  • Drilling diameter: 105-305mm
  • Engine Power: XIDONG55Kw
  • Competive Price
  • Support customization
  • Video Instrcution and Installation
  • Professtional After-Sales Team

Technical Parameters:

Product Name
T 180 RUBBER CRAWLER MOUNTED WATER WELL DRILLING RIG
Drilling Hole Diameter 105-305mm
Drilling Depth 180m
Drill pipe length 3m
Drill pipe diameter 76mm
Shaft Pressure 4T
Lifting force 16T
Lifting speed 20m/min
Fast forward speed 40m-min
Maximum turning torque 5900
Maximum rotation speed 85/170r/min
Air Consumption 16-55m³/min
Engine Xidong 55 KW
Overall dimension 3.4*1.8*2.3m
Weight 4.5T
Drilling method

top drive hydraulic rotation and propulsion, DTH impactor or

Mud drilling

Support and Services:

Our Pneumatic Drilling Rig product comes with a comprehensive technical support and service package to ensure optimal performance and uptime. Our team of experienced technicians is available to provide on-site installation and commissioning support, as well as ongoing maintenance and repair services.

We also offer training services to equip your team with the knowledge and skills needed to operate and maintain the rig effectively. Our technical support team is available 24/7 to provide remote assistance and troubleshooting, ensuring that any issues are resolved quickly and efficiently.

Furthermore, we provide a range of spare parts and accessories to ensure that your drilling rig continues to perform at its best. Our team can provide expert advice on selecting the right parts and accessories for your specific needs, and we offer fast and reliable delivery to minimize downtime.

180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine

180m Depth Pneumatic Water Well Drilling Rig with 55kw Diesel engine
