260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
Specifications
Brand Name :
SHITAN
Model Number :
ST260
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
500set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Type :
Rotary Drilling Rig
Warranty :
1 year
Key Selling Points :
High working efficiency
Video outgoing-inspection :
Provided
Drilling diameter :
105-300mm
Rotary speed :
30/120r/min
Transportation method :
Sea freight
Max drilling depth :
200m
Rod diamete :
76/89mm
Power :
65kw
Maximum rotation speed :
85/170r/min
Description
260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
This drilling rig is equipped with a 73KW engine, capable of achieving a maximum drilling depth of 260 meters and a hole diameter of 105-305mm. It supports three drilling modes and is suitable for both loose strata and bedrock formations in Southeast Asia. With a penetration rate of 10-35m/h, a climbing angle of 30°, and a travel speed of 2.5km/h, it offers flexible mobility for mountainous and construction site operations, making it an ideal equipment for industrial, civil, and geothermal drilling.
Technical Specifications
Type Water Well Drilling Rig
Usage Agricultural/Industrial/Construction Water
Drilling Diameter Range Max 300mm
Maximum Drilling Depth 0-260 meters
Place of Origin Hebei, China
Engine Power 73KW
Dimensions 4m × 1.8m × 2.3m
Weight 6T
Advanced Features
1. Supports three methods: top drive hydraulic rotation, down the hole impact, and mud drilling, with strong adaptability to geological formations
2. The working wind pressure is 1.25-3.5Mpa, which can be applied to loose layers and bedrock formations
3. The footage efficiency is 10-35m/h, and the construction efficiency far exceeds that of similar equipment
4. Maximum turning torque of 6900N · m, sufficient drilling power
5. 18T lifting force+1.2T auxiliary winch, making heavy operations easier
6. Walking speed of 2.5km/h, climbing angle of 30 °, flexible mountain movement

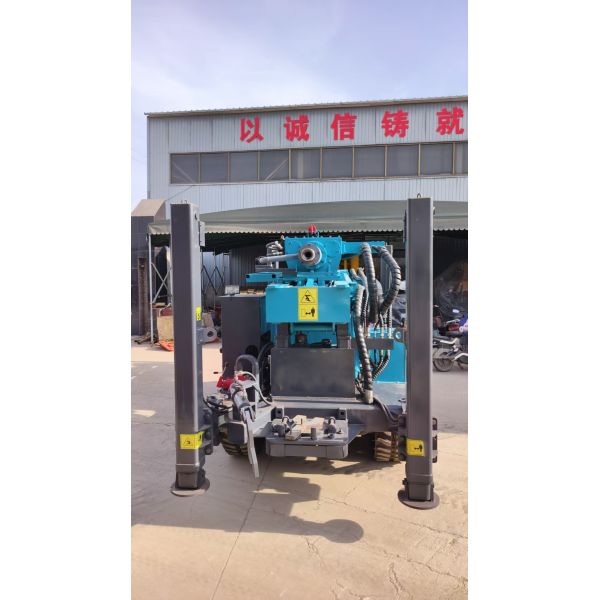

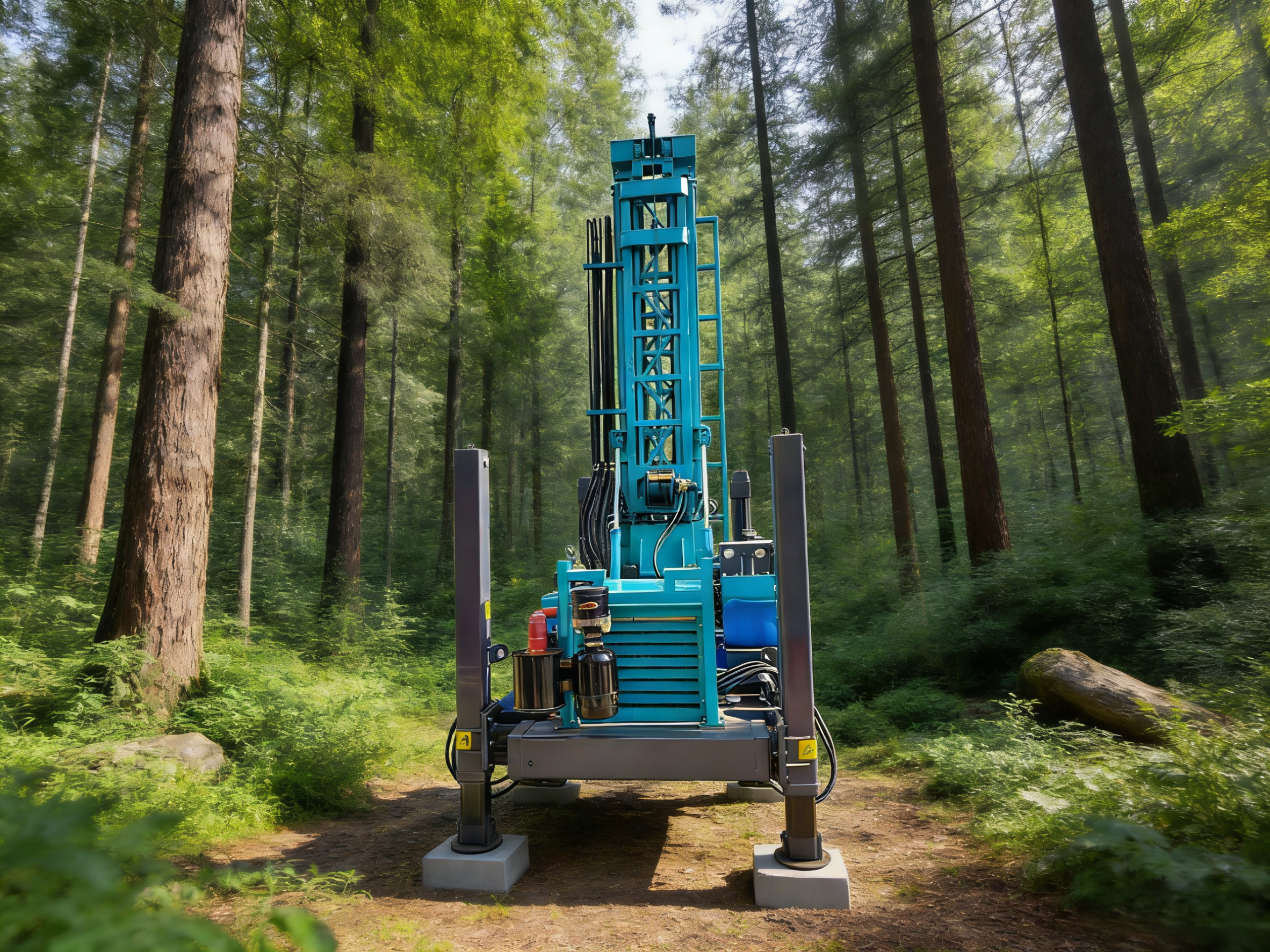

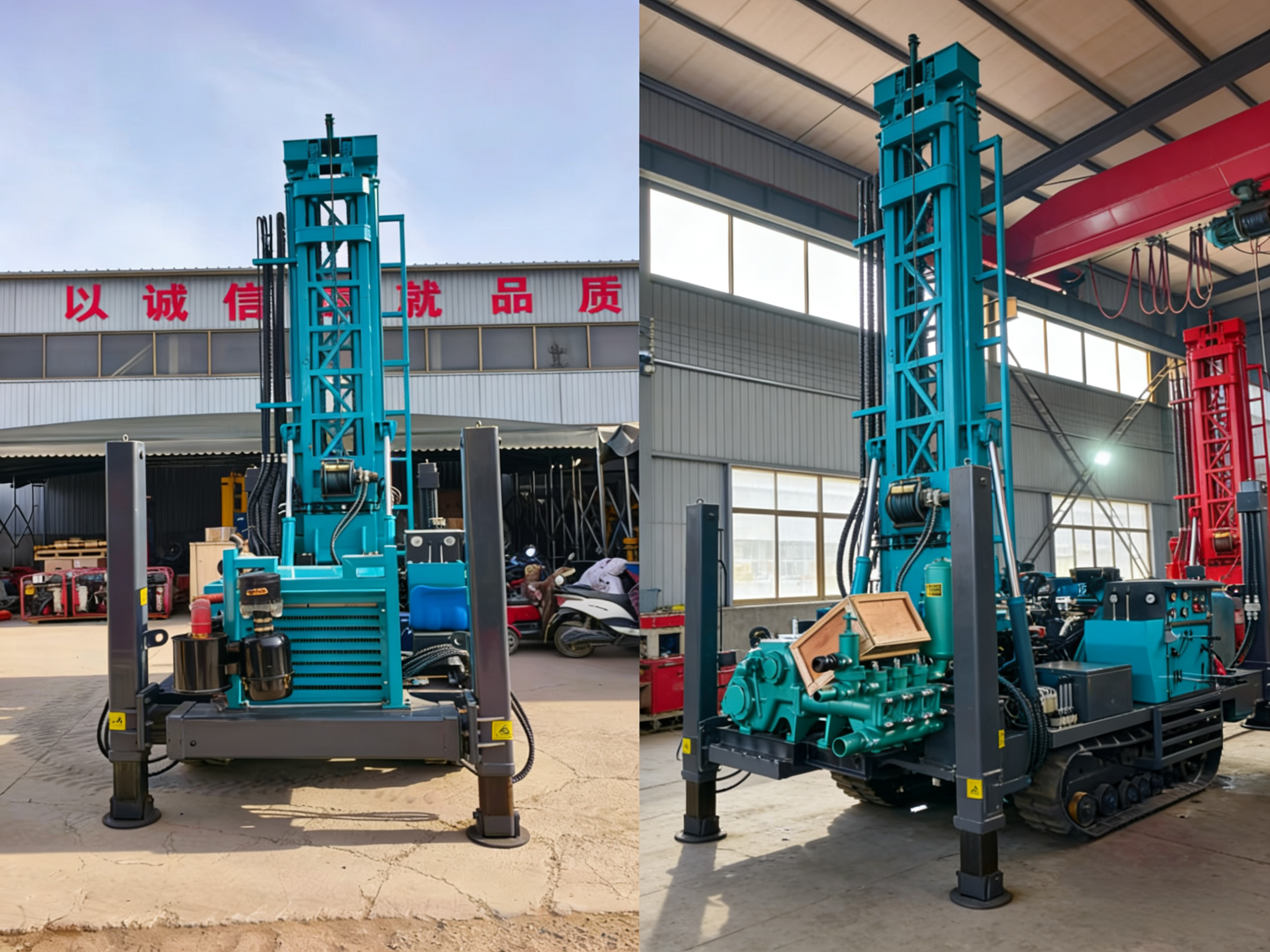

Product Gallery



260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia

260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia

260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia

260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia
