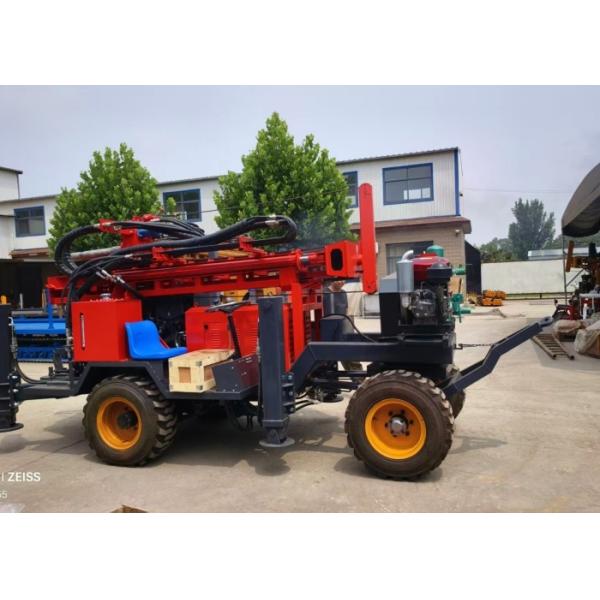

Strong Powerful Borewell Machine Drilling Large Torque Wheels Mounted
Strong Powerful Borewell Machine Drilling Large Torque Wheels Mounted
Strong Powerful Borewell Machine Drilling Large Torque Wheels Mounted
Strong Powerful Borewell Machine Drilling Large Torque Wheels Mounted
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST 350
Certification :
ISO/CE/COC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Product Name :
Diesel Engine Deep Water Well Drilling Machines For Farming Irrigation Boreholes
Machine Type :
Water Borewell Drilling Rig
Hole Diameter :
100-350 mm
Drilling Depths :
350 meters
Drilling Rod :
89/76mm
Diesel Engine :
Yuchai Brand
Warranty :
12 months
Mud Pump :
BW 200,
After sale service :
Video Support
Color :
Optional
Description
Deep Water Well Drilling Machines For Farming Irrigation Boreholes

Professional-grade drilling rig designed for demanding geological conditions with powerful pneumatic operation and deep drilling capabilities.

Key Features
  • Designed for deep well drilling up to 350 meters
  • Pneumatic drive system for powerful performance
  • Suitable for hydrogeological exploration and water well drilling
  • Excellent adaptability for complex geological conditions
  • ISO certified with 12-month warranty
Product Specifications
Attribute Value
Model Number wheels-mounted drilling rig
Machine Type Water Borehole Drilling
Certification ISO/CE
Hole Diameter Customized (90-300mm)
Drilling Depths 350 meters
Condition New
Weight 12 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min, 20-100m3/min
After sale service  onlin video support
Technical Details

Power: Diesel
Dimensions: 6400MM * 2250MM * 2700MM
Weight: 5800KG
Rotary Speed: 0-90rpm
Travelling Speed: 0-2.5km/h
Drilling Rods: 76*2m + 76*3m

Equipment Components
  • Pneumatic System: Provides power to drive the rotation and impact of the drill bit
  • Drill Rod System: Multiple sections of drill rods for gradual penetration
  • Drill Bit: Various types available based on geological conditions
  • Control System: Adjusts drilling parameters like rotation speed and impact force
  • Debris Removal System: Uses compressed air or mud to keep borehole clean
Safety Precautions
  • Operators must undergo professional training
  • Wear safety helmets, gloves, and other protective equipment
  • Inspect surrounding environment before operation
Product Images
