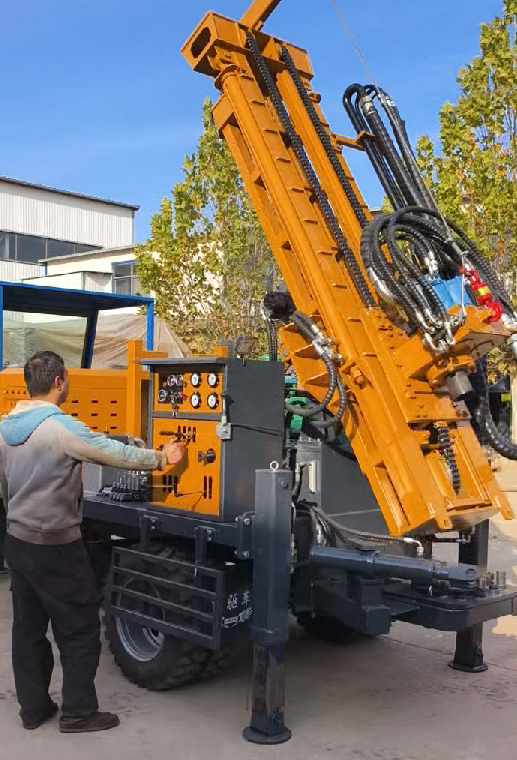

0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
Specifications
Brand Name :
SHITAN
Model Number :
ST200s
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
500set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Type :
Rotary Drilling Rig
Warranty :
1 year
Key Selling Points :
High working efficiency
Video outgoing-inspection :
Provided
Drilling diameter :
105-300mm
Rotary speed :
30/120r/min
Transportation method :
Sea freight
Max drilling depth :
200m
Rod diamete :
76/89mm
Power :
65kw
Description
0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
Ideal for industrial, civil and geothermal drilling, the ST200 4WD rig combines power and versatility. Boasting 200m maximum drilling depth and 105-300mm diameter, it adapts seamlessly to loose strata and bedrock. The 65KW engine drives 4T shaft pressure and 18T lifting force, with 20m/min fast lifting speed boosting work efficiency to 10-35m/h. Featuring hydraulic top drive rotary technology and medium/high air pressure hammer compatibility, it supports DTH and mud drilling. Its compact 4.5m×1.8m×2.1m dimension, 5.5T weight and 21° climbing ability enable easy transportation. Optional mud pumps, generators expand functionality, backed by reliable performance for global drilling demands.
Technical Specifications
Type Rotary Drilling Rig
Usage Water Well
Drilling Diameter 300 mm, 100mm, 200 mm, 75mm
Drilling Diameter 105-300mm
Place of Origin Heibei,China
Core Components Motor, Pump, Engine
Moving Speed 21 km/h
Video outgoing-inspection Provided
Advanced Features

Full hydraulic control ensures convenience and flexibility

The rig’s speed, torque, feeding axial pressure, reverse axial pressure, feeding rate, and lifting speed are infinitely adjustable. This allows seamless adaptation to diverse drilling tool requirements and varied construction method demands.

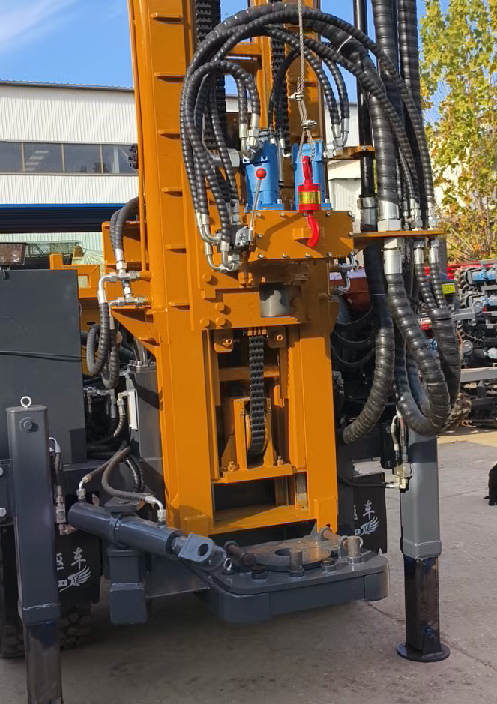

Top-drive rotary feeding & lifting system

Facilitates quick connection and disassembly of drill pipes, significantly reducing auxiliary operation time. It also enables hassle-free pipe-following drilling operations for enhanced usability.

Multifunctional drilling capabilities

Supports multiple drilling technologies: down-the-hole drilling, air reverse circulation drilling, air-lift reverse circulation drilling, cutting drilling, cone drilling, casing drilling, and under-development core drilling. Customizable with mud pumps, foam pumps, and generators as per user needs; various winches are included as standard configurations.

High operational efficiency

Integrating full hydraulic control and top-drive rotary feeding/lifting, the rig is compatible with diverse drilling techniques and tools. Its user-friendly operation, rapid drilling speed, and minimized auxiliary time collectively deliver exceptional work efficiency.

Cost-effective performance

Adopts DTH hammer drilling technology for rock formations—recognized for high drilling efficiency and the lowest per-meter drilling cost. This ensures optimal cost control for long-term construction projects.
Key Benefits
  • Professional technical team provides customized drilling solutions
  • Comprehensive after-sales system ensures timely repair and maintenance
  • Ample spare parts supply prevents project delays
  • Advanced production equipment ensures high precision and consistency
  • Experienced assembly team conducts rigorous whole-machine debugging
  • Free operation training for quick and easy equipment operation
  • Direct manufacturer supply offers better value and worry-free service
Product Gallery
0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine


0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine

0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine



0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine


0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine

0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine

0-300M Truck-mounted Drilling Rig For Water Well With Essential Components Pump Motor Engine
