200m Deep Tire Water Well Drilling Rig With 300mm Diameter
200m Deep Tire Water Well Drilling Rig With 300mm Diameter
200m Deep Tire Water Well Drilling Rig With 300mm Diameter
200m Deep Tire Water Well Drilling Rig With 300mm Diameter
Specifications
Brand Name :
SHITAN
Model Number :
ST200s
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
500set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Drilling Hole Diameter :
105-300mm
Type :
Rotary Drilling Rig
Use :
Water Well
Drilling Depth :
Max.200m
Warranty :
1 year
Core Components :
motor, Pump, Engine
Key Selling Points :
High working efficiency
Video outgoing-inspection :
Provided
Fast fonwarding speed :
5900
Rotary speed :
30/120r/min
Description

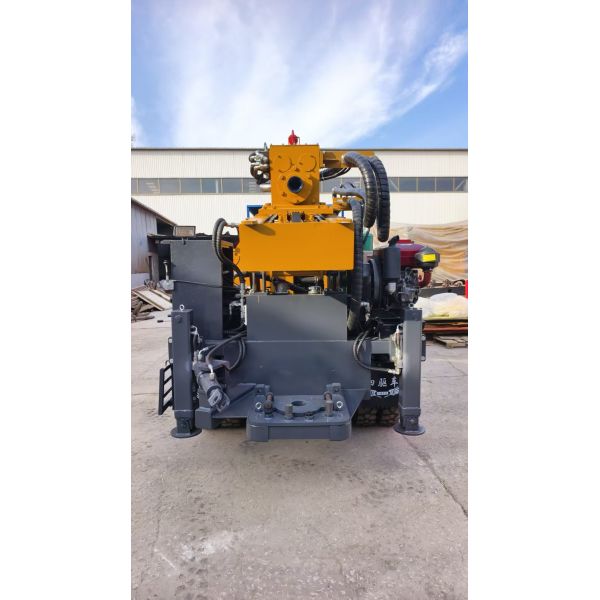

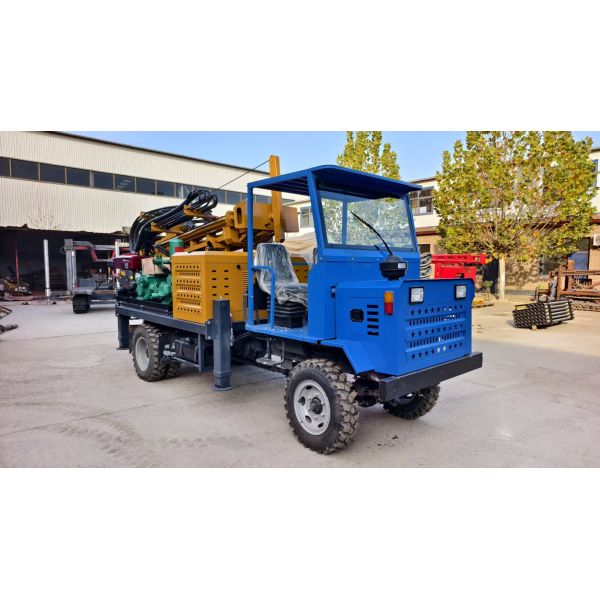

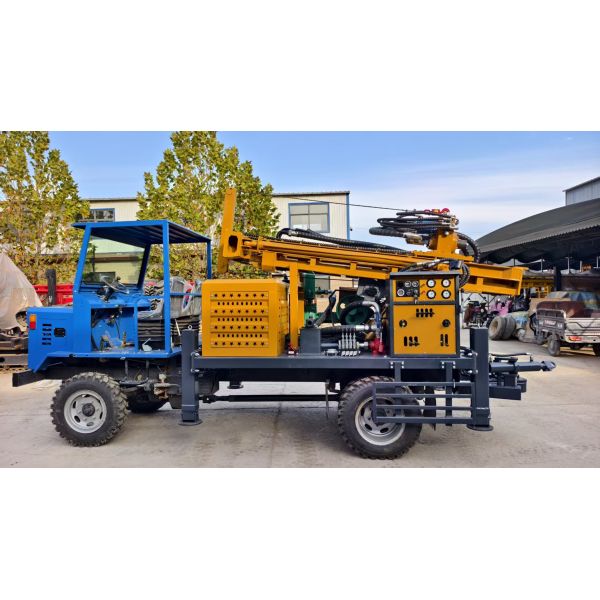

ST200 Water Well Drilling Rig - 200m Depth with 300mm Diameter
The ST200 drilling rig represents advanced engineering in water well drilling technology, combining a high-performance drilling machine with a four-wheel drive vehicle for exceptional mobility and operational efficiency.
This versatile water well drilling rig supports both air compressor and mud pump drilling methods, enabling large borehole capabilities and rapid drilling depths to meet diverse drilling requirements across various applications.
Technical Specifications
Product Name ST200 Water Well Drilling Rig
Maximum Drilling Depth 200m
Drilling Method Air compressor or mud pump
Drilling Diameter 105-300mm
Air Pressure 1.25-3.5Mpa
Air Consumption 16-55m³/min
Moving Speed 21 km/h
Dimensions 4.5m × 1.8m × 2.1m
Main Shaft Pressure 4T
Key Features & Benefits
  • 4T axial pressure ensures superior drilling verticality and exceptional hole quality
  • 3m long drill rod with 76mm recommended diameter optimizes drilling efficiency and operational stability
  • 1T auxiliary winch lifting force enhances convenience for auxiliary operations
  • 1m high outrigger travel provides stable support during drilling operations
  • Compact footprint (4.5m × 1.8m × 2.1m) minimizes space requirements
  • Four-wheel drive vehicle integration enables rapid travel between sites
  • Dual drilling method support (air compressor and mud pump) for versatile applications
Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
