New Four-wheel Drive Water Well Drilling Rig For Agriculture
New Four-wheel Drive Water Well Drilling Rig For Agriculture
New Four-wheel Drive Water Well Drilling Rig For Agriculture
New Four-wheel Drive Water Well Drilling Rig For Agriculture
Specifications
Drilling Hole Diameter :
105-300mm
Type :
Rotary Drilling Rig
Use :
Water Well
Drilling Depth :
Max.200m
Warranty :
1 year
Core Components :
motor, Pump, Engine
Key Selling Points :
High working efficiency
Video outgoing-inspection :
Provided
Brand Name :
SHITAN
Model Number :
ST200s
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T,Western Union
Supply Ability :
500set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Description

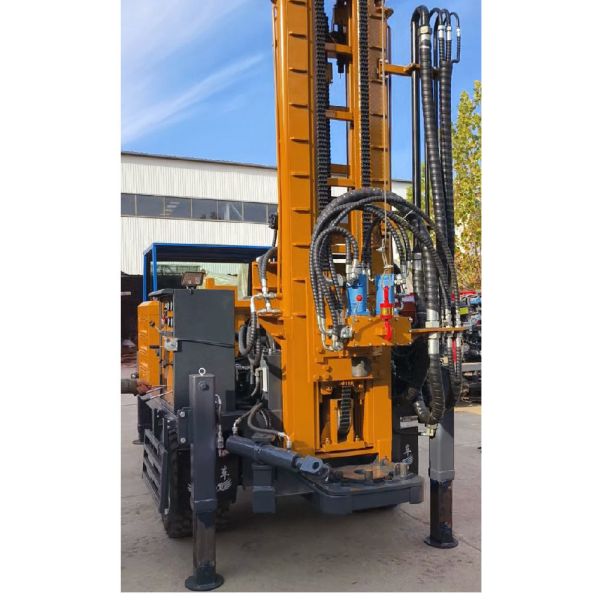

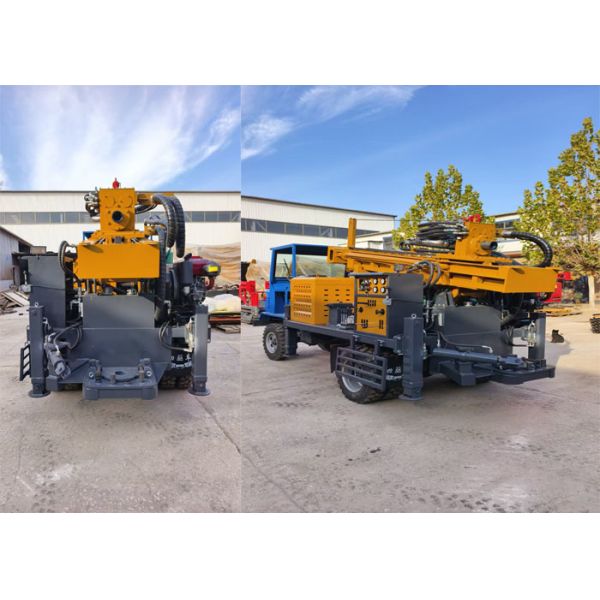

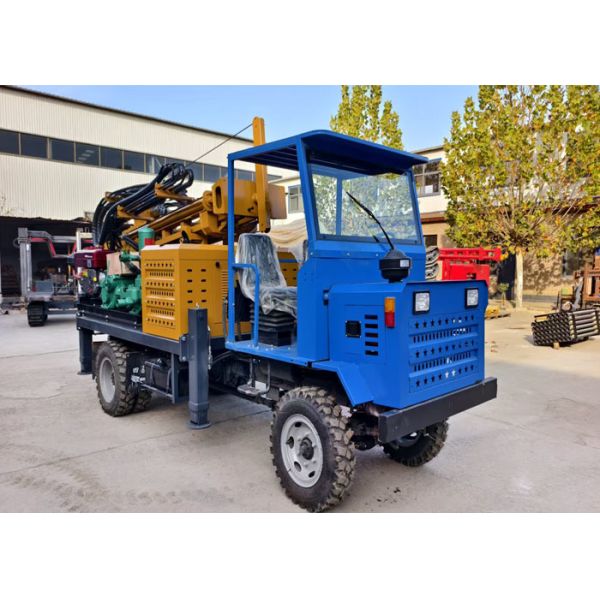

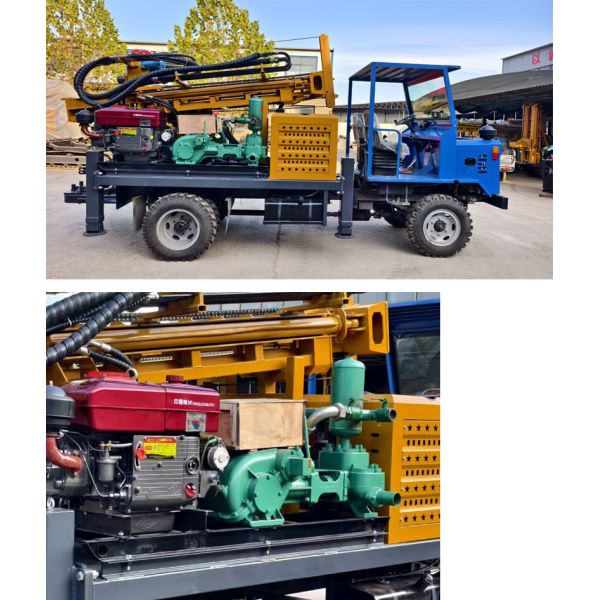

New Four-wheel Drive Water Well Drilling Rig For Agriculture
Product Overview
The ST200 four-wheel drive water well drilling rig is engineered for agricultural applications, capable of drilling to depths of 200m with diameters ranging from 105-300mm. This versatile rig handles both loose layers and bedrock formations, powered by a robust 65KW engine that delivers drilling efficiency of 10-35m per hour. Its high mobility and adaptability make it suitable for civil, industrial, and geothermal drilling operations.
Technical Specifications
Product Name Four-wheel Drive Water Well Drilling Rig
Maximum Drilling Depth 200m
Drilling Rod Diameter 76mm/89mm
Drilling Diameter 105-300mm
Main Shaft Pressure 18T
Lifting Force 20m/min
Moving Speed 21
Dimensions 4.5m * 1.8m * 2.1m
Weight 5.5T
Key Features
  • Maximum drilling depth of 200m for deep water extraction and geothermal applications
  • Wide drilling diameter range of 105-300mm for various drilling scenarios
  • Four-wheel drive design ensures flexible movement and high relocation efficiency
  • 18T super-large lifting force provides stable and smooth drill pipe operation
  • Manufactured in professional facilities for reliable performance and durability
Packaging & Shipping
  • ST200 Drill Rig
  • Drill Bits, Drill Pipes, Tools and Accessories
  • Comprehensive Instruction Manual
  • Products shipped within 3-7 business days after order confirmation
  • Shipping costs calculated based on delivery destination
  • Tracking information provided upon shipment
  • Delivery times may vary depending on destination
Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
