Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata
Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata
Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata
Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST 260
Certification :
ISO/CE/COC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Product Name :
Deep Borehole Drilling Equipment
Machine Type :
Water Borewell Drilling Rig
Hole Diameter :
100-350 mm
Drilling Depths :
180 meters
Condition :
New
Drilling Rod :
76/89mm
Warranty :
12 months
Rotation torque :
7500Nm, 983 N.m, 4200N.m, 3400mm
After sale service :
Video Support
Color :
Yellow,Red and Blue
Description
Large Torque Diesel Engine Powerful Borewell Drilling Equipment High Efficiency 260 Meters
Product Description
ST 260 Pneumatic Drilling Rig - Premium Blasting Borehole Solution Designed for Rocky Strata. This high-performance rig is specialized in underground deep drilling (max. 180m), adopting advanced pneumatic technology to achieve superior efficiency in rock penetration for blasting projects.
Key Features
  • Professional deep well drilling solution: The rig can drill up to 260 meters, powered by a pneumatic drive system for strong performance.
  • Well-suited for hydrogeological exploration and water well drilling, boasting great adaptability to complex geological conditions.
  • Backed by ISO certification and a 12-month warranty, it offers peace of mind for every drilling project.
Product Specifications


Parameter Techincal Data
Model Number Wheels-mounted drilling rig
Machine Type Drilling Equipment
Certification ISO, CE
Hole Diameter Customized (90-300mm)
Drilling Depths 260 meters
Condition New
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min, 20-100m3/min
Power Source Diesel Engine (150HP)
Drilling Speed 0-120 rpm
Travel Speed 5-10 km/h
Technical Details
  • Equipped with diesel power, this rig features dimensions of 6400MM×2250MM×2700MM and a weight of 5800KG. It offers a rotary speed range of 0-90rpm, travelling speed of 0-2.5km/h, and is compatible with 76×2m + 76×3m drilling rods for versatile operations.
Equipment Components
  • Pneumatic System: Provides power to drive the rotation and impact of the drill bit
  • Drill Rod System: Multiple sections of drill rods for gradual penetration
  • Drill Bit: Various types available based on geological conditions
  • Control System: Adjusts drilling parameters like rotation speed and impact force
  • Debris Removal System: Uses compressed air or mud to keep borehole clean
Safety Precautions
  • Operators must undergo professional training
  • Wear safety helmets, gloves, and other protective equipment
  • Inspect surrounding environment before operation
Product Images

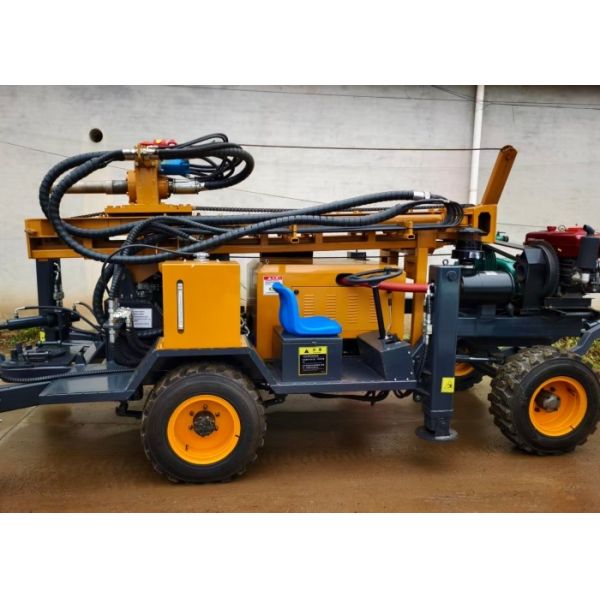

Pneumatic Drilling Rig with 100-350mm Hole Diameter and Pneumatic Drive System for Rocky Strata
