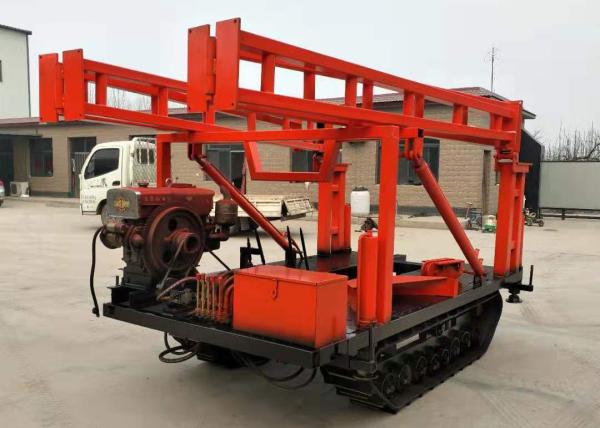

We offer customized tracked chassis undercarriage systems with loading capacity up to 10 tons. These systems are widely used in construction machinery, agricultural equipment, gardening machinery, wheelchairs, drilling machinery, engineering machinery, and mining applications.

• Less ground damage: Rubber tracks cause less damage to roads than steel tracks and reduce rutting on soft ground
• Low noise operation: Ideal for congested areas with significantly less noise than steel tracks
• Higher speed capability: Rubber tracks allow for faster travel speeds compared to steel tracks
• Reduced vibration: Insulates machine and operator from vibration, extending equipment life and reducing fatigue
• Low ground pressure: Approximately 0.14-2.30 kg/CMM, making it ideal for wet and soft terrain
• Superior traction: Can pull twice the load of wheel vehicles of the same weight

The crawler chassis assembly is designed for specialized applications including parade vehicles, tanks, and armored vehicles. The rubber track walking system offers ground protection, low noise operation, minimal vibration, and comfortable operation, making it suitable for high-speed applications and frequent transfers.

Note: Service life averages about 2000 hours but varies significantly based on operating conditions. Harsh environments like rocky terrain may reduce lifespan by half, while favorable conditions may double it.

• Avoid sharp turns on concrete or hard surfaces to prevent track core wear
• Cross ridges at low speed and right angles; use springboards for heights over 10cm
• Minimize prolonged operation and sharp turns on gravel roads to prevent accelerated wear
• Avoid working in muddy fields to prevent track slippage and debris accumulation
• Immediately stop and remove any foreign objects caught between track and underframe
• Clean tracks thoroughly after exposure to beach environments or chemical-treated fields
