3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine
3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine
3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine
3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine
Specifications
Brand Name :
Shitan
Model Number :
Shitan T1
Certification :
ISO
Place of Origin :
Jinzhou ,China
MOQ :
1 set
Price :
Customzied Quotation list
Payment Terms :
T/T,Western Union
Supply Ability :
1000 Sets/month
Delivery Time :
5 days after advance payment
Packaging Details :
1*20 FCL
Product Name :
Large Loading Capacity Crawler Track Undercarriage Customized For Drilling Rig Equipment
Loading Capacity :
Customized
Raw Material :
Alloy Steel
OEM :
Acceptable
Power :
Diesel Engine
Warranty :
12 month
After sale service :
Video Support
Application :
Drilling Rigs
Speed :
Customized
Description
Large Loading Capacity Crawler Track Undercarriage for Drilling Rig Equipment
Product Specifications
Attribute Value
Product Name Large Loading Capacity Crawler Track Undercarriage Customized For Drilling Rig Equipment
Loading Capacity Customized
Raw Material Alloy Steel
OEM Acceptable
Power Diesel Engine
Brand Name Shitan
Warranty 12 month
After sale service Video Support
Application Drilling Rigs
Speed Customized
Product Description

This Crawler Undercarriage is specially designed for small equipment, featuring a low speed, high torque motor for greater driving force. The crawler track and chain plate are fixed with screws for easy maintenance, and it includes a mechanical brake to prevent slipping on ramps. Crossbeam flange connection allows for easy disassembly and assembly.

Technical Details
Type 1.5T Bucket size 1500*1100*500 mm
Size 2400*1100*1400mm Crawler material Rubber material
Track ground length 1500mm Loading & unloading method Hydraulic dump
Motor size 186 Gear type drawbar
Gear +3 forward gear +1 reverse gear Height from bucket bottom to ground 500 mm
Steering method Clutch brake steering Start method Electric start
Standing slope angle 35 degree Crawler width 720mm
Key Advantages
  • Excellent Stability: The crawler structure provides a large contact area with the ground, ensuring stable operation in various applications.
  • Efficient Operation: While maintaining lower speeds than other chassis types, it delivers fast running speeds suitable for demanding applications.
  • Durable Performance: Engineered for long-lasting operation through structural and performance advantages.
Applications

The crawler chassis assembly is ideal for specialized applications including, tanks, and armored vehicles. Its rubber track system offers ground protection, low noise, reduced vibration, and comfortable operation, making it suitable for high-speed applications requiring frequent transfers.

Service life averages approximately 2000 hours, varying with environmental conditions. Harsh environments like rocky terrain may reduce lifespan, while favorable conditions can extend it.

Operation Guidelines
  • Avoid sharp turns on concrete or hard surfaces to prevent track wear and twisting.
  • Cross ridges at low speed perpendicularly, using a springboard for heights over 10cm.
  • Minimize prolonged operation and sharp turns on gravel roads to prevent accelerated wear.
  • Avoid working in muddy fields to prevent slipping and debris accumulation.
  • Immediately stop and remove any foreign objects caught between track and underframe.
  • Clean tracks thoroughly after exposure to beach environments or chemical-treated fields.

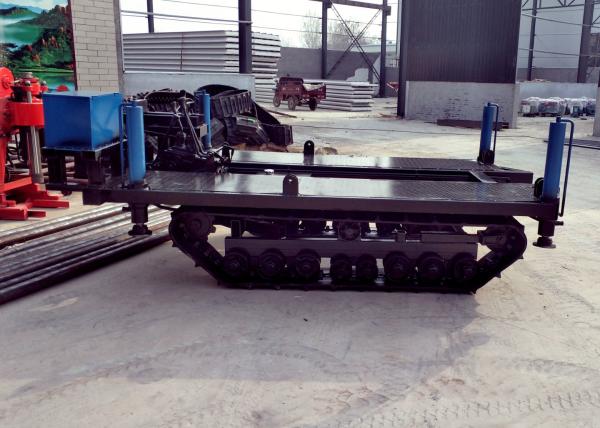

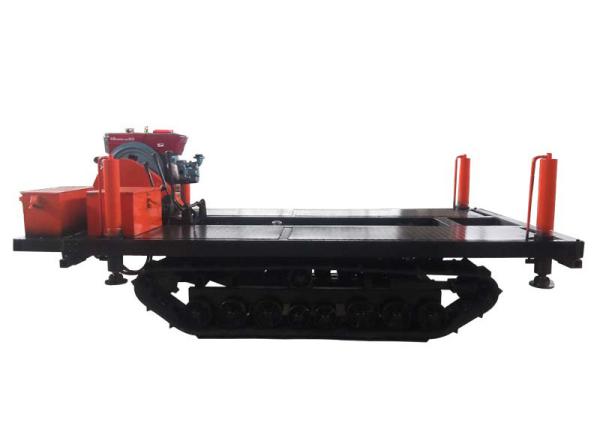

Product Images
3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine 3-5 MT Loading Capacity Crawler Track Undercarriage For Tractor Mounted Drilling Machine
