High Strength Construction Rubber Crawler Track Undercarriage For Transportation
High Strength Construction Rubber Crawler Track Undercarriage For Transportation
High Strength Construction Rubber Crawler Track Undercarriage For Transportation
High Strength Construction Rubber Crawler Track Undercarriage For Transportation
Specifications
Product Name :
Construction Rubber Crawler Track Platform Undercarriage For Transportation
Loading Capacity :
Customized
Raw Material :
Alloy Steel
OEM :
Acceptable
Power :
Diesel Engine
Brand Name :
SHITAN
Warranty :
12 month
After sale service :
Video Support
Application :
Drilling Rigs
Speed :
Customized
Model Number :
Shitan T1
Certification :
ISO
Place of Origin :
Jinzhou ,China
MOQ :
1 set
Price :
Customzied Quotation list
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Sets/month
Delivery Time :
5 days after advance payment
Packaging Details :
1*20 FCL
Description
High Strength Construction Rubber Crawler Track Undercarriage For Transportation
Product Specifications
Attribute Value
Product Name Construction Rubber Crawler Track Platform Undercarriage For Transportation
Loading Capacity Customized
Raw Material Alloy Steel
OEM Acceptable
Power Diesel Engine
Brand Name Shitan
Warranty 12 month
After sale service Video Support
Application Drilling Rigs
Speed Customized
Product Overview

This Crawler Undercarriage is specially designed for small equipment, featuring a low speed, high torque motor for greater driving force. The crawler track and chain plate are fixed with screws for easy maintenance, and it includes a mechanical brake to prevent slipping on ramps. The crossbeam flange connection allows for easy disassembly and assembly.

Technical Specifications
Type 1.5T Bucket size 1500*1100*500 mm
Size 2400*1100*1400mm Crawler material Rubber material
Track ground length 1500mm Loading & unloading method Hydraulic dump
Motor size 186 Gear type drawbar
Gear +3 forward gear +1 reverse gear Height from bucket bottom to ground 500 mm
Steering method Clutch brake steering Start method Electric start
Standing slope angle 35 degree Crawler width 720mm
Key Features
  • Constructed with natural rubber for superior wear and tear resistance
  • Strong adhesion between rubber and steel frame for durability
  • Convenient replacement and long service life
  • Suitable for various vehicles including excavators, pavers, and bitumen transportation trucks
Applications

This undercarriage is widely used in various machinery including excavators, mobile crushers, drilling rigs, mine machinery, fire-fighting robots, underwater dredging equipment, aerial working platforms, transport lifting equipment, agricultural machinery, garden machinery, and other specialized working machinery.

Operation Guidelines
Avoid sharp turns on concrete or hard surfaces to prevent track core wear and belt twisting.
When crossing ridges over 10cm, use a springboard to prevent track damage or detachment.
Minimize prolonged operation and sharp turns on gravel roads to reduce accelerated track wear.
Avoid working in muddy fields to prevent track slippage and debris accumulation.
Immediately stop operation if foreign objects enter between track and underframe.
Clean tracks thoroughly after working on beaches or chemically treated fields.

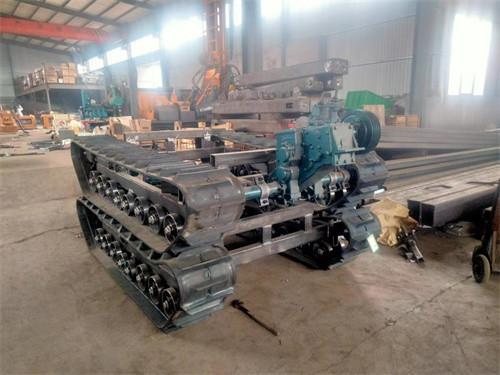

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

High Strength Construction Rubber Crawler Track Undercarriage For Transportation High Strength Construction Rubber Crawler Track Undercarriage For Transportation High Strength Construction Rubber Crawler Track Undercarriage For Transportation High Strength Construction Rubber Crawler Track Undercarriage For Transportation High Strength Construction Rubber Crawler Track Undercarriage For Transportation High Strength Construction Rubber Crawler Track Undercarriage For Transportation High Strength Construction Rubber Crawler Track Undercarriage For Transportation
