Specifications
Model Number :
CustomizableTrack mounted chassis
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Delivery Time :
Within 3-7workday
Payment Terms :
L/C, D/A, T/T, Western Union
Brand Name :
ShiTan
Packaging Details :
Wooden Box
Supply Ability :
1000set
Type :
Customizable Track mounted chassis
Usage :
Carrying equipment like drill rig/Air compressor
Carrying capacity :
According to customer needs
Dimension(L*W*H) :
According to customer needs
Outriggers :
0.5m/1m/1.5m
Travel mode :
hydraulic travel/gearbox travel
Power :
diesel engine
Climbing ability :
30
Description

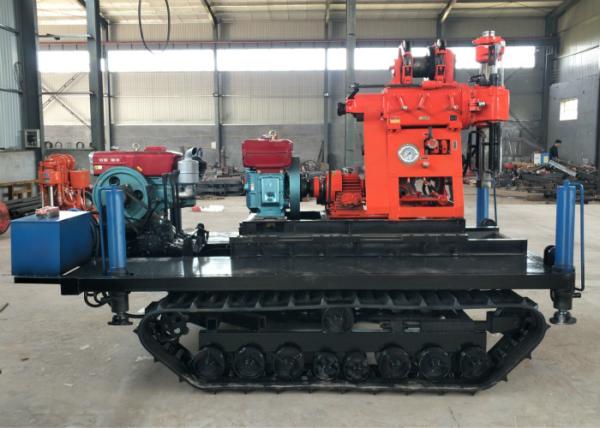

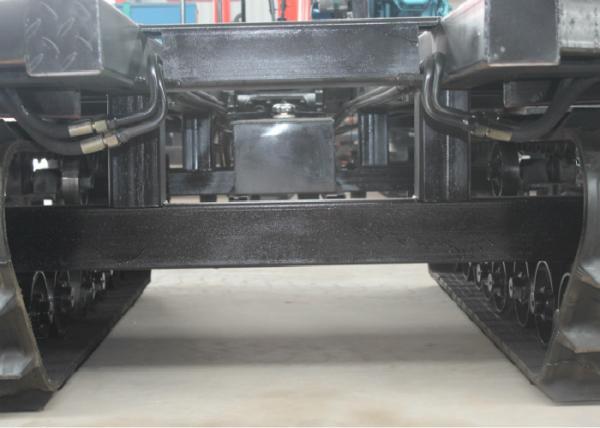

Track Crawler Chassis

We are a professional crawler chassis factory. We can customize crawler platforms of different load capacities and sizes according to customer needs. They can carry 5-100 tons of cargo or machinery. Our crawler platforms support hydraulic travel and transmission travel, and can provide high-quality solutions for global customers.

Key Features

  • High Adaptability: Supports customization in size, load capacity, and configuration to meet diverse project requirements.

  • Robust Performance: Theoretical speed of 0–10 km/h with 4-speed gearbox (3 forward, 1 reverse) and dual-range transmission (high/low speed).

  • Superior Terrain Capability: Climbs slopes up to 20° (ascend/descend) with a 25° side tilt angle, ideal for rough or uneven terrain.

Parameter Table

Specification 8-Track Chassis 7-Track Chassis Tracked Platform
Number of Tracks 8 7 5
Speed 0–10 km/h (4 gears: 3F/1R) 0–10 km/h (4 gears: 3F/1R) 0–10 km/h (4 gears: 3F/1R)
Transmission Dual-range (high/low speed) Dual-range (high/low speed) Dual-range (high/low speed)
Gradeability 30° ascent/descent 30° ascent/descent 30° ascent/descent
Tilt Angle 25° 25° 25°
Track Size (LWH) 350*90*54 mm 350*90*48 mm 280*72*46 mm
Track Contact Length 1.6 m 1.6m 1.3m
Platform Size (LWH) 3.3*1.85*0.5 m 3.2*1.85*0.5 m 2.0*1.5m*0.5 m
Load Capacity 4 tons 3 tons 1 ton
Cylinder Stroke/Height 0.5m/1m/1.5m 0.5m/1m/1.5m 0.5 m/1m

Packaging

  • Waterproof wooden crates

  • Customized lashing points for secure transit

FAQ

To make sure the offered steel crawler undercarriage is suitable for your application, please offer the following details:
1. Rubber or steel track undercarriage .
2. What is the payload of undercarriage .
Note: it is the weight of machine excluding the weight of undercarriage.
3. length of track undercarriage (mm).
4. width of each side of track undercarriage (mm).
5. height of track undercarriage (mm).
6. total width of track undercarriage (mm).
7. working flow rate per each side of undercarriage (L/min).
8. working pressure (MPA).
9. travelling speed (km/hr).
10. climbing capacity.
