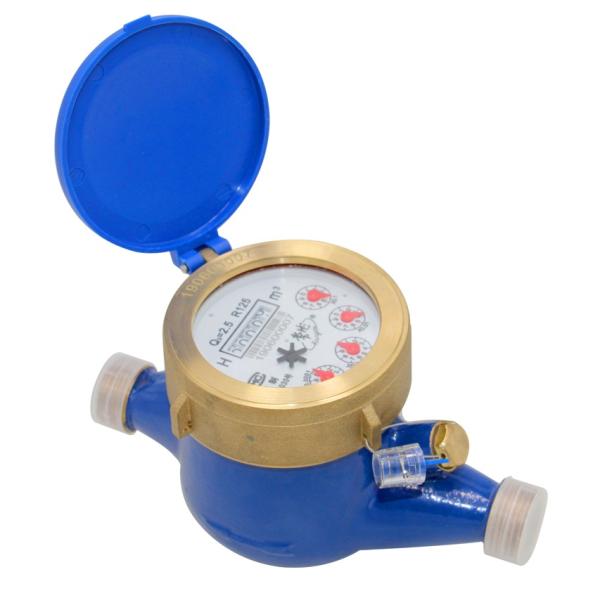

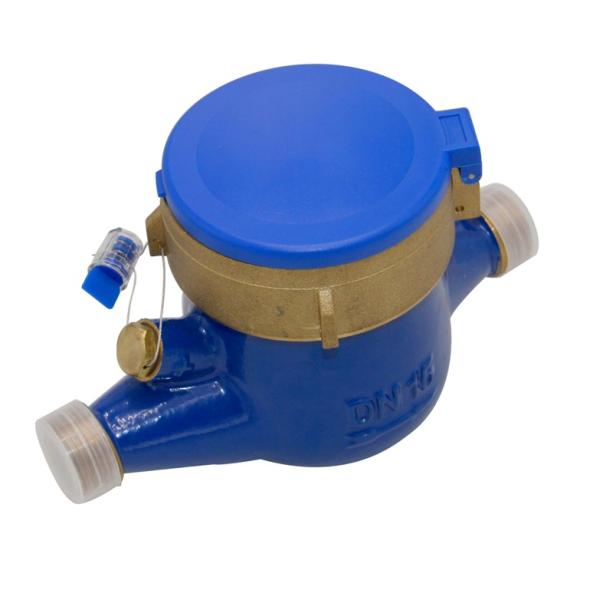

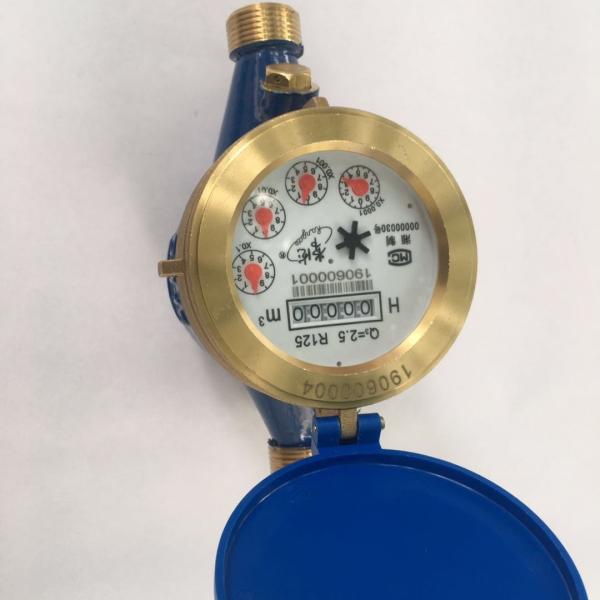

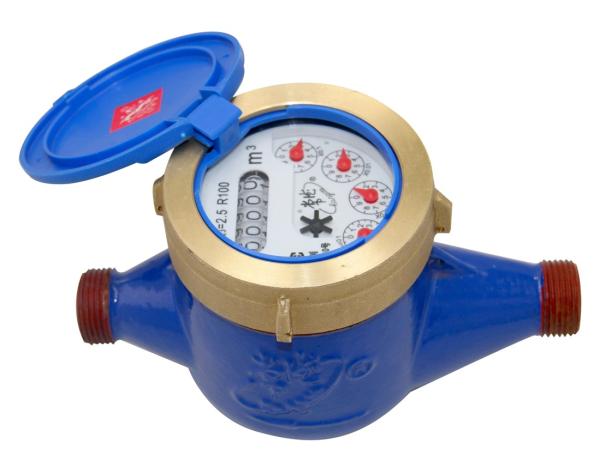

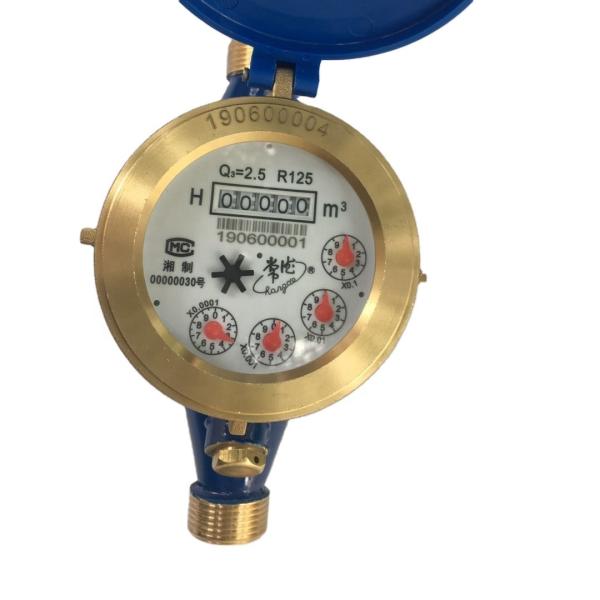

DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water
Specifications
warranty :
1YEAR, 1 year
customized support :
OEM
Place of Origin :
Hunan, China
Brand Name :
Changde Brand
Model Number :
LXSG-15-50
type :
Multi-jet meters
Name :
Dry dial class B/C Water meter
Material :
brass
Type name :
Vane wheel cold water meter
Certificate :
ISO4064 ISO9001:2008
Installation :
Horizontal
Water temperature :
≤30℃
Working pressure :
≤1MPa
Normal Size :
15mm~25mm
Description

DN 15 -50 Multi-jet dry dial class B/Class C meter for cold and hot water

Product Features

1 High accuracy, Dry type, magnetic drive

2 dry counter and measured water can keep the indication clear for a long time.

3 Pulse output option

Working condition(s)

Water temperature T30(T50 available), Working pressure ≤1MPa.(1.6Mpa available)

Accuracy

Low region max. allowable error: From Q1 inclusive up to but excluding Q2 is±5%.

High region max. allowable error: From Q2 inclusive up to and including Q4 is±2%

Dimensions and weight

DN 15 -50 Multi-jet Dry Dial Class B/Class C Meter for Cold and Hot Water

Technical Data

Diameter

(DN)

Q max

(Q4)

Q n

(Q3)

Qt(Q2)

Q2/Q1=1.6 m3/h

Q min(Q1)

Specific value Q3/Q1 m3/h

Min.

seale mark

Max.reading

Q4/Q3=1.25 m3/h

R80

R100

R125

R160

R80

R100

R125

R160

m3

m3

15

3.125

2.5

0.05

0.04

0.032

0.025

0.032

0.025

0.02

0.016

0.00005

99999

20

5

4

0.08

0.064

0.05

0.04

0.05

0.04

0.032

0.025

0.00005

99999

25

7.875

6.3

0.126

0.1

0.08

0.063

0.08

0.063

0.5

0.4

0.00005

99999

32

12.5

10

0.2

0.16

0.125

0.1

0.125

0.1

0.08

0.063

0.00005

99999

40

20

16

0.32

0.256

0.2048

0.16

0.2

0.16

0.128

0.1

0.00005

99999

50

31.25

25

0.5

0.4

0.32

0.25

0.3125

0.25

0.2

0.156

0.00005

99999
