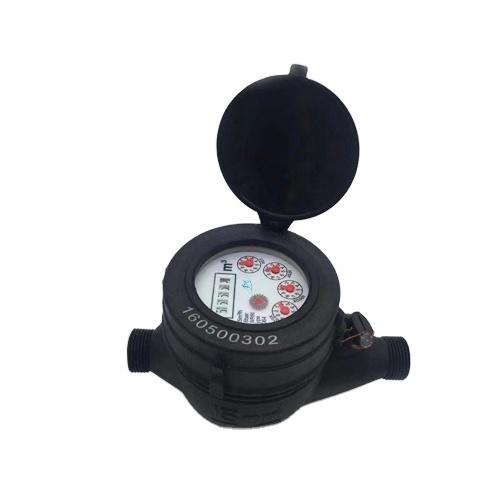

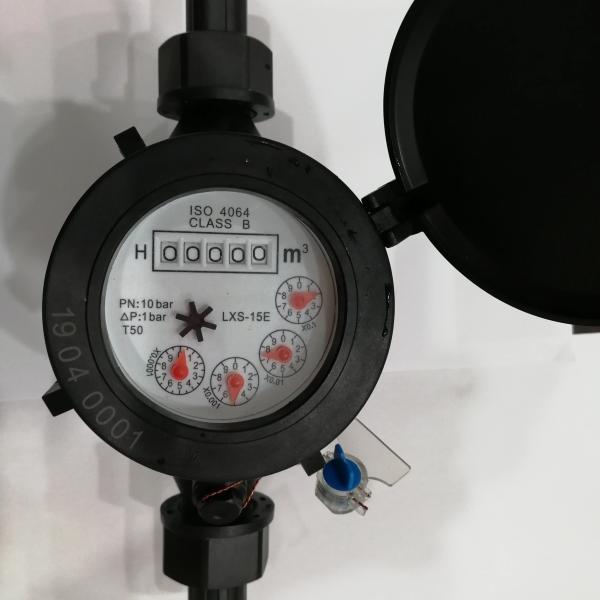

1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
1/2 Inch-1'' CLASS B Multi Jet Dry Type Plastic Water Meter
Specifications
warranty :
1 year, 1 year
customized support :
OEM
Place of Origin :
Hunan, China
Brand Name :
Changde Brand
Model Number :
LXSG-15-50
type :
Multi-jet meters
Name :
Dry dial class B Water meter
Material :
brass
Type name :
Vane wheel cold water meter
Certificate :
ISO4064 ISO9001:2008
Installation :
Horizontal
Water temperature :
≤30℃
Working pressure :
≤1MPa
Normal Size :
15mm~25mm
Description

1/2 inch CLASS B Multi jet dry dial plastic water meter

Product Description

Brief introduction:

The dry dial water meter is mainly composed of a meter case, a cover, a counting mechanism, a measuring mechanism, etc. The counting mechanism and impeller are completely isolated by magnetic transmission, and the reading part of the wheel is dry and keeps the reading part clear for a long time by using water.Anti-fog, anti-fouling and other characteristics.

Characteristic:

High accuracy, accurate measurement, convenient maintenance, technical index up to GB/T778.1~3-2007 standard, dry counter and measured water can keep the indication clear for a long time.

Special Features

Name:

Dry dial class B Water meter

Material:

Iron

Type name

Vane wheel cold water meter

Certificate

ISO4064 ISO9001:2008

warranty

 1 year

Installation

Horizontal

Water temperature

≤30℃

Working pressure

≤1MPa

Normal Size

15mm~50mm

Dimensions and weight

Diameter

(DN)

Length

(mm)

Width

(mm)

Height(mm)

Connection thread

Weight

(Kg)

L

L1

B

H

d

D

15

259

165

104

113

R1/2

G3/4 B

0.55

20

299

190

104

113

R3/4

G1 B

0.65

25

345

225

110

124

R1

G1 1/4 B

0.72

Technical Data

Diameter

(DN)

Q max

(Q4)

Q n

(Q3)

Qt(Q2)

Q2/Q1=1.6 m3/h

Q min(Q1)

Specific value Q3/Q1 m3/h

Min.

seal mark

Max.reading

Q4/Q3=1.25 m3/h

R80

R100

R125

R160

R80

R100

R125

R160

m3

m3

15

3.125

2.5

0.05

0.04

0.032

0.025

0.032

0.025

0.02

0.016

0.00005

99999

20

5

4

0.08

0.064

0.05

0.04

0.05

0.04

0.032

0.025

0.00005

99999

25

7.875

6.3

0.126

0.1

0.08

0.063

0.08

0.063

0.5

0.4

0.00005

99999
