Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SWF4S-1TM
Type :
Loudspeaker
Application :
Audio & Video
Gender :
Female
Industrial electronics :
accessories
MOQ :
10 pieces
Price :
CN¥22.78/pieces 10-99 pieces
Description
Products Description

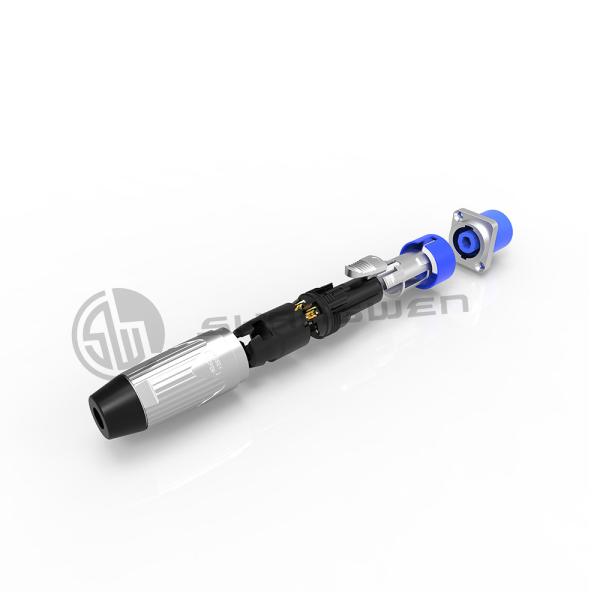

4Pin Loudspeaker plug-Metal material
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Model:SWF4S-1TM
The extremely rugged metal case and fiberglass reinforced V-0 material inner core are designed for harsh environments
Sophisticated "quick lock" system
A large welding contact is attached, suitable for lines up to 6mm²(AWG10)
Equipped with internal gasket, protection class up to IP54 in connection state
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
1.Product parameters
Connection Type
Speaker
Gender
Female
2.Electrical parameters
Contact resistance
<2mΩ
Dielectric strength
2.8kVac
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
9-16mm
Service life
>5000 mating cycles
Wire size
6 mm²
Wire size
10AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Insert
Polyamide (PA 66 )
Shell
Zinc diecast,Nickel plating
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 V-0
Protection class
IP54
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
6.Assembly reference
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Application area
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Company Information
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Patent & Certification
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Exhibition activities
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Packaging reference
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
Payment and logistics
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
FAQ
Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
