Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SWM4S-2Z-2
Type :
Loudspeaker
Application :
Audio & Video
Gender :
Male
Industrial electronics :
accessories
MOQ :
10 pieces
Price :
CN¥19.98/pieces 10-99 pieces
Description
Products Description
4Pin Loudspeaker chassis

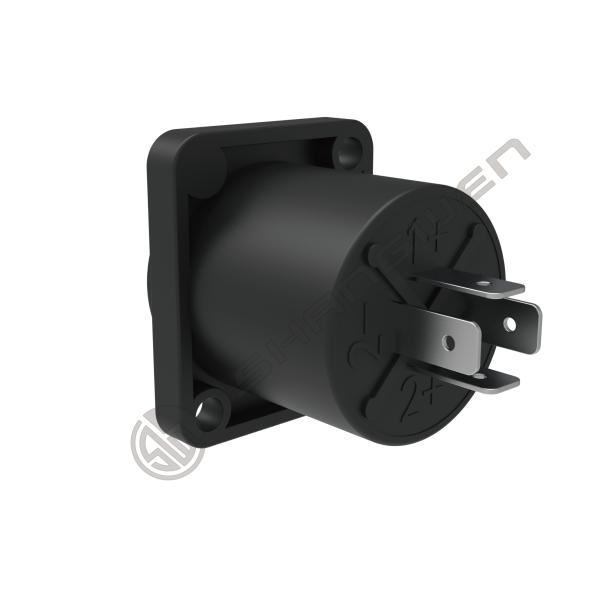

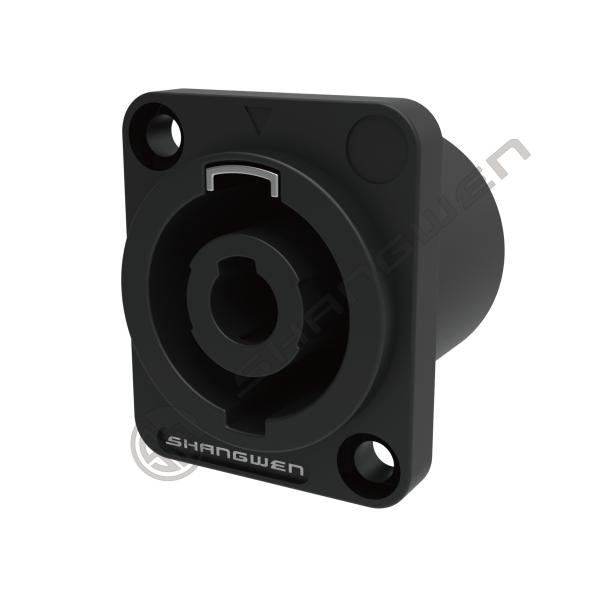

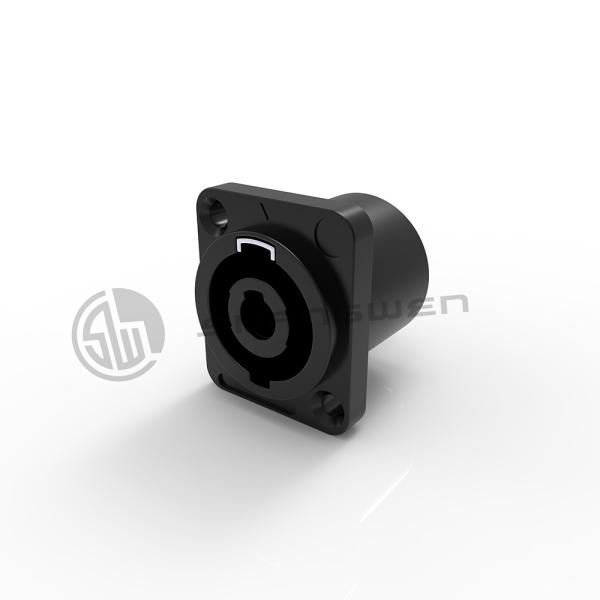

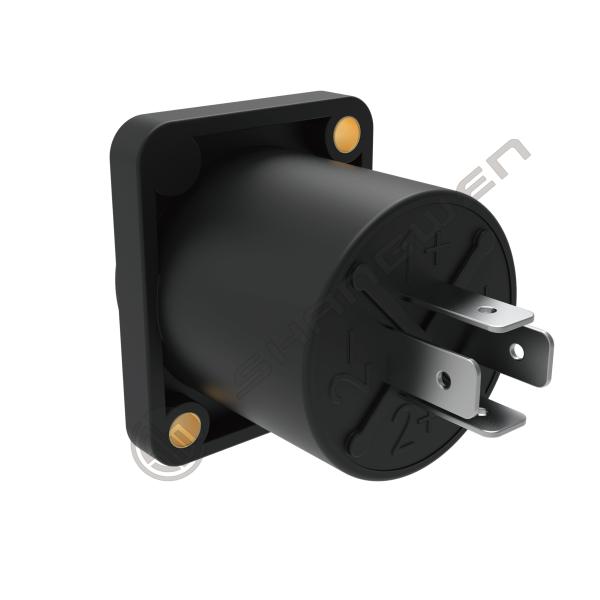

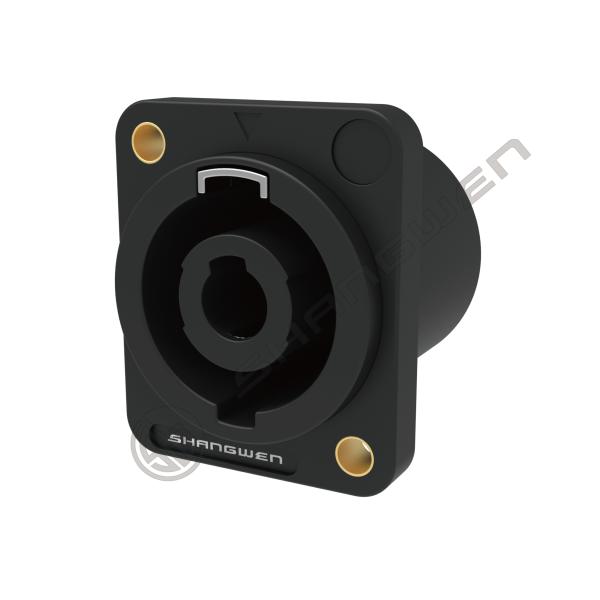

D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Model:SWM4S-2Z-2
Up to 30A rms current rating
Precise keyway for secure mating
Metal insert in locking area
Glass reinforced materials make it extremely robust and dependable Accurate twist lock latching system Airtight design - optimized for speaker applications
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
≤3mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Service life
>5000 mating cycles
Chassis shape
D
Layout
two thru holes
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Shell
Polyamide (PA 6 30 % GR)
Flame-retardant grade
UL 94 HB
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Application area
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Company Information
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Patent & Certification
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Exhibition activities
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Packaging reference
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
Payment and logistics
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
FAQ
D-Shape 4-Pin Industrial Electronics Loudspeaker Chassis Latch Lock Plastic Copper Male Bronze Pillar Speaker Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
