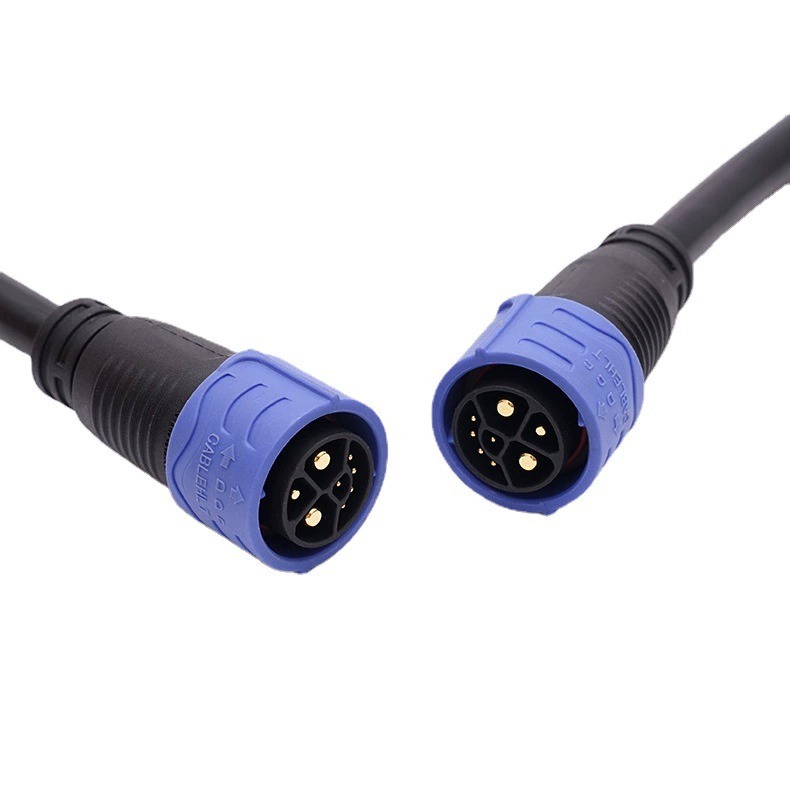

M25 5 Pin Self Locking Waterproof Power Connector 30A 300V IP67 Quick Lock Circular Plug
M25 5 Pin Self Locking Waterproof Power Connector 30A 300V IP67 Quick Lock Circular Plug
M25 5 Pin Self Locking Waterproof Power Connector 30A 300V IP67 Quick Lock Circular Plug
M25 5 Pin Self Locking Waterproof Power Connector 30A 300V IP67 Quick Lock Circular Plug
M25 5 Pin Self Locking Waterproof Power Connector 30A 300V IP67 Quick Lock Circular Plug
M25 5 Pin Self Locking Waterproof Power Connector 30A 300V IP67 Quick Lock Circular Plug
Specifications
Supply Ability :
Can produce 10 million sets of wire harnesses annually
Brand Name :
kenhon
Withstand Voltage :
≥1000V AC (1 minute duration)
Model Number :
M25 Waterproof Plug
IP Protection Rating :
IP67
Payment Terms :
L/C,D/A,D/P,T/T
Price :
2 USD -5 USD
Contact Resistance :
≤5mΩ - 10mΩ
Certification :
UL,CE certification
Contact Material :
Phosphor Bronze, Gold Plated
MOQ :
100 sets
Delivery Time :
7-15 days
Housing Material :
Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Place of Origin :
Shenzhen, Guangdong, China
Rated voltage :
300V-600V
Packaging Details :
10*10*10
Description
M25 5 Pin Self Locking Waterproof Connector 30A 300V IP67 Male Female Quick Lock Circular Plug
Product Overview

The Fast-Lock M25 Weatherproof Connector is a rugged circular power and signal interface featuring a 25 mm threaded coupling body with push-twist self-latching mechanism. Engineered for quick installation without tools, heat-shrink tubing, or junction enclosures, it occupies the medium-to-large tier in the fast-lock outdoor connector range.

The fast-lock bayonet coupling requires simple alignment, pressing inward, and a 30-60° rotation to securely lock in place. Available in field-terminable screw-clamp and solder-pot versions or pre-molded cable assemblies for immediate use.

Key Advantages
  • Rapid coupling in seconds with one-handed operation
  • High power density: 50A/500V capacity in compact M25 form factor
  • Genuine IP67/IP68 protection when coupled
  • On-site cut-to-length capability with screw-terminal inserts
  • Keyed polarization prevents misconnection
  • Industrial-grade contacts with low resistance and high cycle life
  • V0 flame rating and wide temperature range (-40°C to +105°C)
Technical Specifications
Parameter Specification
Coupling Size M25 × 1.5 round body
Locking Style Fast-lock bayonet / push-lock
Pin Configuration 2-8 power, up to 22 mixed
Rated Current 35A (4-pin) - 50A (2/3-pin)
Rated Voltage 500V AC / 600V DC maximum
Contact Resistance ≤ 5 mΩ
Protection Level IP67 standard / IP68 optional
Cable Diameter 6-16 mm
Wire Gauge 0.5-6 mm² (20-10 AWG)
Operating Temperature -40°C to +105°C
Shell Material PA66+GF, PPA, UL94-V0
Mating Cycle Life ≥ 500 (plastic) / 3000 (premium)
Certifications CE, RoHS, UL/CCC/TUV options
Competitive Advantages

vs. Threaded M25 Cable Gland: 80% faster installation, reusable, smaller footprint

vs. M20 Fast-Lock: Higher current capacity, wider cable range

vs. Anderson/SB50 Connectors: Fully sealed, polarized, professional appearance

vs. Pre-molded Cordsets: Custom lengths on-site, repairable, reduced inventory

Applications
  • Outdoor LED lighting and signage systems
  • E-bike and scooter battery disconnects
  • Solar and off-grid power systems
  • Industrial equipment and machinery
  • Marine, RV, and agricultural applications
  • Stage and event production equipment
