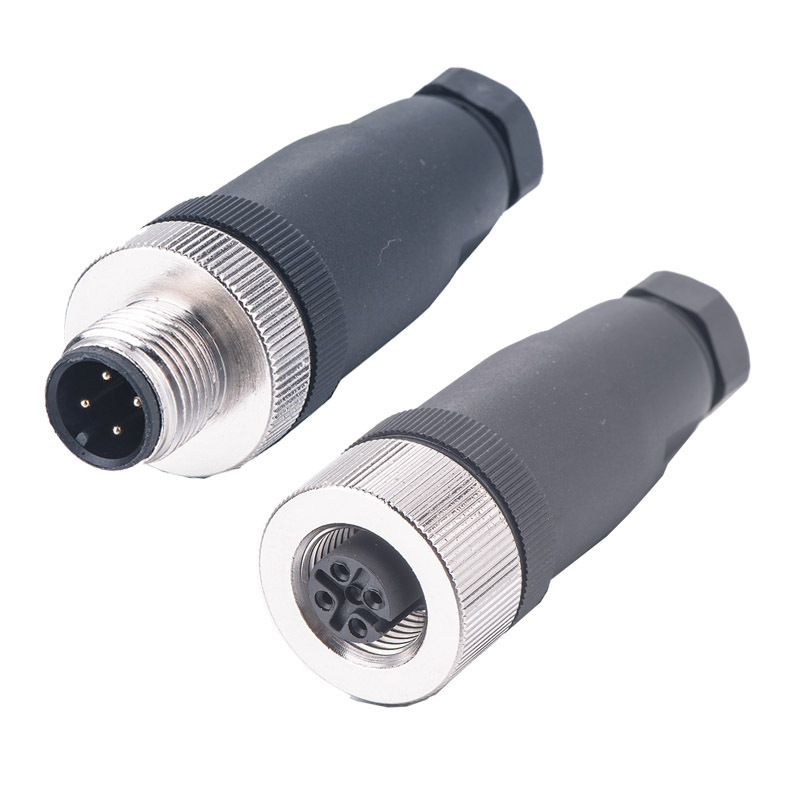

M12 Circular Waterproof Cable Connector IP68 2A 4 5 8 Pin Male Female Straight Plug
M12 Circular Waterproof Cable Connector IP68 2A 4 5 8 Pin Male Female Straight Plug
M12 Circular Waterproof Cable Connector IP68 2A 4 5 8 Pin Male Female Straight Plug
M12 Circular Waterproof Cable Connector IP68 2A 4 5 8 Pin Male Female Straight Plug
M12 Circular Waterproof Cable Connector IP68 2A 4 5 8 Pin Male Female Straight Plug
M12 Circular Waterproof Cable Connector IP68 2A 4 5 8 Pin Male Female Straight Plug
Specifications
Supply Ability :
Can produce 10 million sets of wire harnesses annually
Model Number :
M12 Assembly Plug
Withstand Voltage :
≥1000V AC (1 minute duration)
Payment Terms :
L/C,D/A,D/P,T/T
Price :
2 USD -3 USD
Housing Material :
Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Certification :
UL,CE certification
Contact Material :
Phosphor Bronze, Gold Plated
MOQ :
100 sets
Delivery Time :
7-15 days
Contact Resistance :
≤5mΩ - 10mΩ
Brand Name :
kenhon
Rated voltage :
300V-600V
Place of Origin :
Shenzhen, Guangdong, China
IP Protection Rating :
IP67
Packaging Details :
10*10*10
Description
M12 Waterproof IP68 2A 4/5/8 Pin Adapter Circular Connector
Semi-Plastic Straight Plug PG7/9/11 Male Female Assembly
Product Overview
The M12 Field-Terminable Plug serves as the on-site cable-end counterpart to standard factory-molded M12 cordsets. Instead of purchasing pre-manufactured cables with fixed lengths, you can use your own cable, expose the conductors, fasten them into the contact holder using a screwdriver (or solder/crimp method), and secure the plug housing with an M12×1.0 threaded coupling ring.
Compliant with IEC 61076-2-101 (sensor/actuator) and IEC 61076-2-109 (X-coded Ethernet), this solution fits any standard M12 panel receptacle or mating plug and achieves IP67 sealing when properly tightened with O-ring and cable gland.
Ideal for maintenance crews, custom equipment fabricators, and system integrators who need quick field repairs or custom cable lengths without extended lead times.
Key Benefits
  • Trim any cable to exact length on location - no restrictions to fixed stock lengths
  • Quick field repairs - restore damaged sensor cables in minutes instead of waiting for replacements
  • IP67 sealed when mated with PG7/PG9 gland - protects against dust, oil vapor, coolant spray, and immersion
  • Keying prevents incorrect connections - physically incompatible keyways ensure proper mating
  • Multiple current ratings - 4A on 2-5 pin, 2A on 6-8 pin, 1.5A on 12/17 pin configurations
  • Flexible termination options - screw, solder, or insulation displacement methods
  • Reduced inventory requirements - covers dozens of pre-molded stock-keeping unit combinations
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101 / 2-109
Coupling M12 × 1.0 threaded
Pin Count 2-17 (common 3/4/5/8)
Coding A / B / D / X / T / L / S
Rated Current 4A (2-5 pin), 2A (6-8), 1.5A (12/17), 12A (T 2-pin)
Rated Voltage 250V (2-4 A-code), 60V (5-pin), 30V (6-17), 60V DC (T)
Contact Resistance ≤ 5 mΩ
Protection Level IP67 when mated (IP68 optional)
Cable Outer Diameter PG7 4-6 mm / PG9 6-8 mm
Operating Temperature -40°C to +85/+105°C
Certifications CE, RoHS, REACH
Competitive Advantages
Versus pre-molded M12 cordsets: Zero factory lead time for custom lengths, 50-60% fewer stock-keeping units, field-repairable, no wasted cable offcuts
Versus open screw-terminal plus heat shrink: Coded keying prevents miswiring, IP67 sealed, vibration-proof threaded lock, industrial mating life
Versus inexpensive generic field plugs: IEC-standard dimensions mate with every major brand, gold contacts resist corrosion in humid environments
Applications
  • Factory automation: proximity and photoelectric sensors, valve islands, IO-Link masters
  • Industrial Ethernet: D-code 100 Mbps PROFINET/EtherNet/IP, X-code Gigabit applications
  • Machine building and retrofit: custom machinery and laboratory automation
  • Field repair and maintenance: quick termination of damaged sensor cables on production floor
