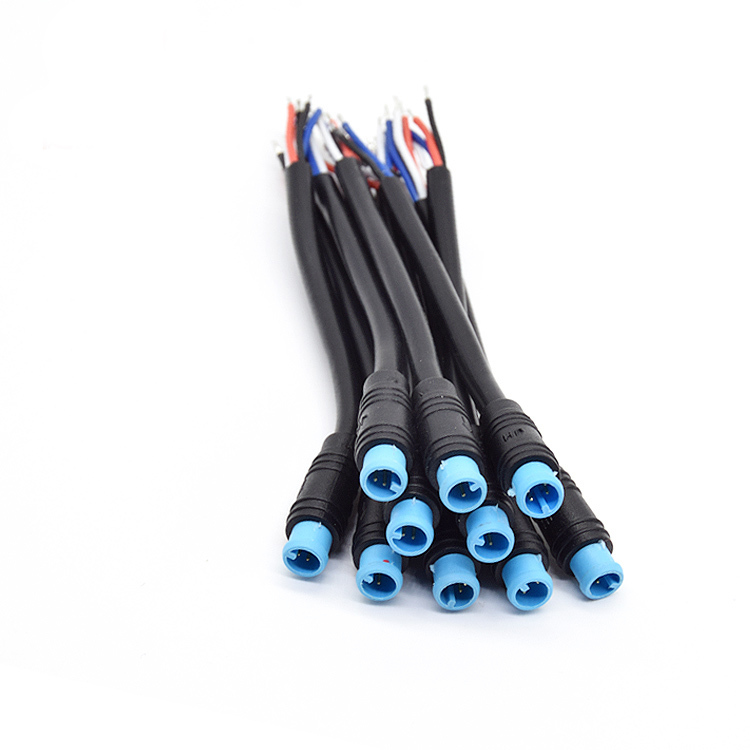

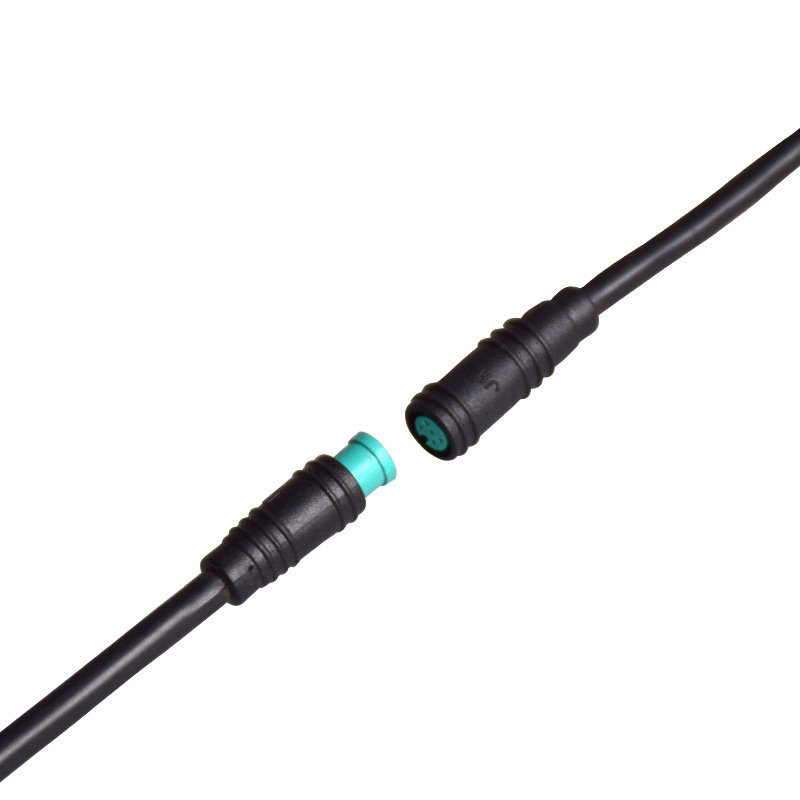

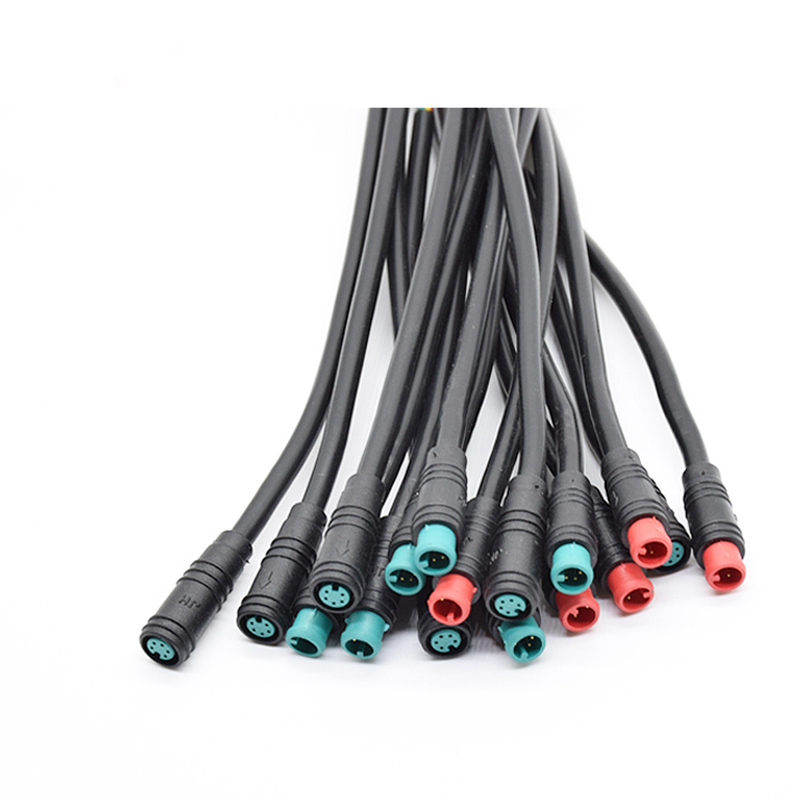

4P 6 Core M6 M7 M8 Male Female Cable Connector Plug IP65 Waterproof For Electric Bike
4P 6 Core M6 M7 M8 Male Female Cable Connector Plug IP65 Waterproof For Electric Bike
4P 6 Core M6 M7 M8 Male Female Cable Connector Plug IP65 Waterproof For Electric Bike
4P 6 Core M6 M7 M8 Male Female Cable Connector Plug IP65 Waterproof For Electric Bike
4P 6 Core M6 M7 M8 Male Female Cable Connector Plug IP65 Waterproof For Electric Bike
4P 6 Core M6 M7 M8 Male Female Cable Connector Plug IP65 Waterproof For Electric Bike
Specifications
Supply Ability :
Can produce 10 million sets of wire harnesses annually
Model Number :
M6 waterproof plug
Withstand Voltage :
≥1000V AC (1 minute duration)
MOQ :
100 sets
Delivery Time :
7-15 days
Contact Resistance :
≤5mΩ - 10mΩ
Payment Terms :
L/C,D/A,D/P,T/T
Price :
1 USD -2 USD
Housing Material :
Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Certification :
UL,CE certification
Contact Material :
Phosphor Bronze, Gold Plated
Brand Name :
kenhon
Rated voltage :
300V-600V
Place of Origin :
Shenzhen, Guangdong, China
IP Protection Rating :
IP65
Packaging Details :
10*10*10
Description
High Quality IP65 Waterproof 4P 6-core M6/M7/M8 Cable Connector Plug for Male and Female Electric Bike Connectors
Product Overview

The M6 Waterproof Plug is the smallest member of the threaded circular connector family, built on an M6×0.5 (≈6 mm nut OD) coupling thread. Despite its compact size, it delivers IP67 (optional IP68) sealing and serves as the ideal micro interface for ultra-compact sensors, mini photoelectric switches, medical probes, e-bike/scooter signal lines, and small LED/decorative lighting applications where M8 connectors are too bulky.

Available as molded-with-cable pairs (PVC/PUR/TPE jacket) or field-assemblable screw/IDC plugs, with 2-6 pin configurations, gold-plated brass contacts, and PA66+GF or nickel-plated zinc shells.

Key Benefits
  • Ultra-Compact Design: 6 mm max OD with coupling nut ≈6 mm, body length 25-30 mm, weight ~2 g (plastic) / ~5 g (metal)
  • Superior Protection: IP67 standard / IP68 optional (mated) with silicone O-ring face, threaded M6×0.5 lock, and rear grommet
  • Optimized Performance: 1-5 A / 250 V class rating, perfectly matched to 5/12/24 VDC sensor, LED strip, and e-bike signal loads
  • Easy Installation: No soldering required with screw-terminal or IDC connections accepting 0.2-0.3 mm² (24-22 AWG) wire
  • Premium Contacts: Gold-plated brass with ≤5 mΩ contact resistance, insulation ≥100 MΩ@500 V DC
  • Secure Connection: Keyed/polarized inserts prevent reverse connection on DC LED and sensor lines
  • Cost Effective: 30% smaller, lighter, and more affordable than M8 solderless connectors
Technical Specifications
Parameter Specification
Coupling M6 × 0.5 threaded (≈6 mm nut OD)
Pins 2 / 3 / 4 / 5 / 6
Rated Current 1 A - 5 A (2-pin big build 5 A, typical 2 A)
Rated Voltage 250 V AC max (signal builds 40-60 V DC)
Contact Resistance ≤ 5 mΩ
Insulation Resistance ≥ 100 MΩ @ 500 V DC
Withstand Voltage 1500 V AC / 1 min
Protection Rating IP67 std / IP68 opt (mated)
Cable OD 3.0-4.5 mm
Wire Gauge 0.2-0.3 mm² (24-22 AWG); ≤0.75 mm² on 5 A build
Operating Temperature -40 °C … +85 / +105 °C (PUR/TPU)
Shell Material PA66+GF V0 / Ni-Zn brass
Mating Cycles ≥ 1500
Certifications CE, RoHS, REACH
Competitive Advantages
  • vs M8 Plug: 25% smaller OD (6 mm vs 8 mm), lighter, more cost-effective
  • vs JST/PH 2.0 Header: Threaded M6 lock + O-ring provides IP67 protection and vibration resistance
  • vs Heat-Shrink Butt Splice: Reusable, keyed, inspectable, with 1500-cycle rating
  • vs Custom Molded Harness: Field-screw M6 allows exact length customization without minimum order quantities
Applications
  • Micro sensors: miniature proximity/photoelectric switches, pressure sensors, encoder taps
  • E-mobility signals: e-bike/scooter throttle, brake, indicator, BMS communication lines
  • Medical & instruments: patient probe leads, portable diagnostic tools, lab automation
  • Small LED & decorative lighting: mini LED strip joints, solar garden light links
  • Robotics: robot finger/joint sensors, drone gimbal micro harness, AGV micro-switches
  • Outdoor equipment: weather station sensors, irrigation controller valve signals
