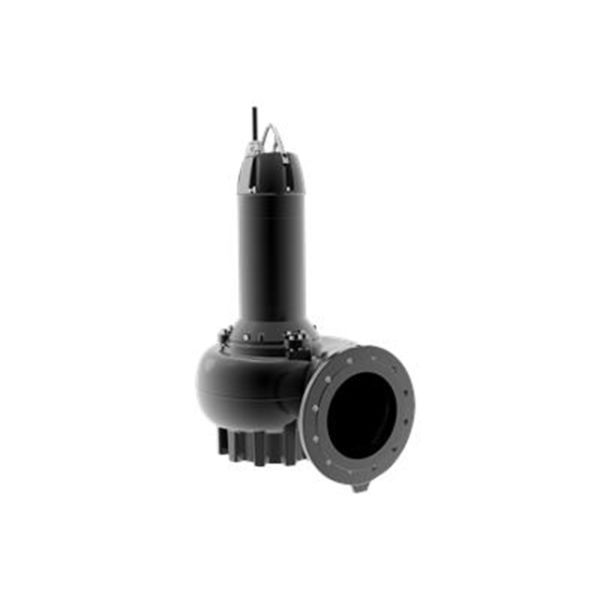

SL1.95.100.220.4.52H.N.51D.A
The non-self-priming single-stage centrifugal pump is designed for handling wastewater, process water, and unfiltered raw sewage. This pump is designed for both intermittent and continuous operation when installed submersibly. The revolutionary S-tube® impeller provides circular passages and can handle solids with a size of 95 millimeters, making it suitable for wastewater with a dry matter content of up to 3%. The SmartTrim impeller clearance adjustment system enables the pump to maintain optimal performance. For installation on an automatic coupling system, the Grundfos SmartSeal gasket system provides a leak-proof connection. The pump is equipped with an efficient Grundfos motor based on an IE3 motor assembly.

Submersible sewage pump SL1.95.100.220.4.52H.N.51D.A Number: 99760566 Suitable for Commercial sewage treatment Industrial wastewater Sewage transportation Flood control and drainage Sewage treatment Sewage pump

Controller

• Humidity Sensor: With humidity sensor

Liquid

• Liquid Temperature Range: 10 .. 40 °C
• Liquid Temperature during Operation: 20 °C
• Density: 998.2 kg/m³

Technology

• Maximum Flow: 83.1 liters per second
• Type of Impeller: S - TUBE
• Max. Particle: 95 mm
• Approvals: CE, EAC, RCM
• Curve Tolerance: ISO9906:2012 3B
• Cooling Jacket (Yes/No): N
• Lifting Height Class: H

Materials

• Pump Housing: Cast iron
• Pump Housing Standard: EN 1561 EN - GJL - 250
• Impeller: Cast iron
  • Standard: EN 1561 EN - GJL - 250
  • Standard: ASTM A48 - 35B
• Motor: Cast iron
  • Standard: EN 1561 EN - GJL - 250
• Shaft Seal: SIC
• Secondary Shaft Seal: SIC/CARBON

Installation

• Ambient Temperature Range: - 20 .. 40 °C
• Maximum Operating Pressure: 8 bar
• Flange Standard: DIN
• Inlet Size: DN 150
• Outlet Size: DN 100
• Pressure Class: PN 10
• Maximum Installation Depth: 20 m
• Automatic Hook - on Device: 96102241
• Structural Range: 52

Electrical Data

• Power Input P1: 25 kW
• Rated Power - P2: 22 kW
• Power Supply Frequency: 50 Hz
• Rated Voltage: 3 x 380 - 415/660 - 690 V
• Voltage Tolerance: +10/-10 %
• Maximum Number of Starts per Hour: 20
• Rated Current: 45 - 41/26 - 25 A
• Maximum Current: 43 A
• Starting Current: 243 A
• No - load Rated Current: 20.1 A
• Rated Driver Speed: 1476 revolutions per minute
• Motor Full - load Efficiency: 88 %
• Motor Efficiency at 3/4 Load: 88 %
• Motor Efficiency at 1/2 Load: 86 %
• Number of Motor Poles: 4

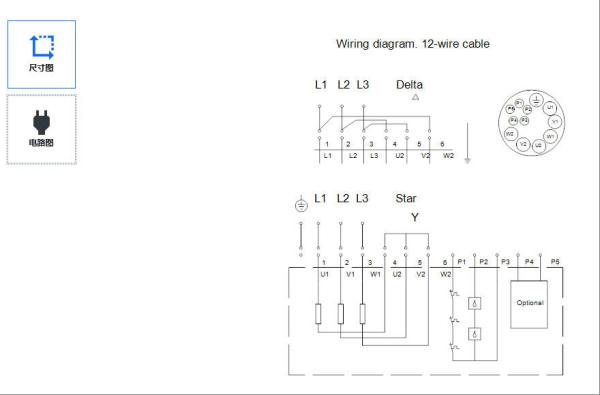

• Starting Method: Y/D
• Enclosure Rating (IEC 34 - 5): IP68
• Insulation Class (IEC 85): H
• Explosion - proof: N
• Power Supply Model: S1BN8 - F
• Length of Power Cable: 10 m
• Coil Resistance: 0.390 Ohm
• Power Factor: 0.85
• Power Factor at 1/2 Load: 0.70
• Power Factor at 3/4 Load: 0.76

Others

• Net Weight: 321 kg
• Gross Weight: 349 kg
• Transport Volume: 1.04 m³
