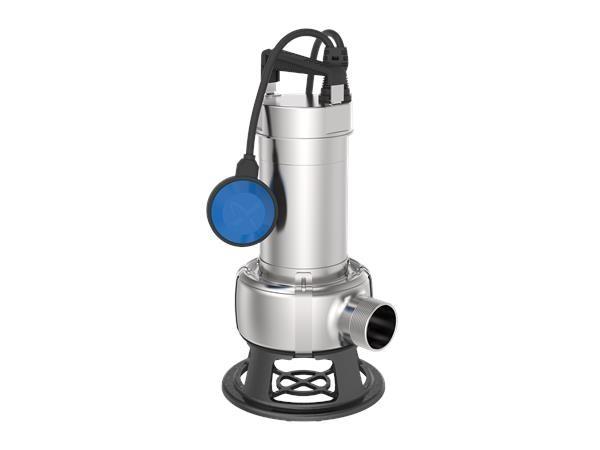

GRUNDFOS AP35B.50.08.A1V

UNILIFT AP35B is a stainless steel submersible pump designed to extract wastewater with a maximum particle size of 35 mm. It can be installed on an automatic coupling device for maintenance and other purposes.

UNILIFT AP35B.50.08.A1V is a vertical single-stage stainless steel submersible pump with an integrated submersible 1-phase motor. Rated flow rate: 5.83 L/S Rated head: 13m Liquid temperature range: 0-40 ° C Liquid temperature during operation: 20 ° C Application scenarios:Commercial wastewater treatment,Domestic sewage treatment

UNILIFT AP35B.50.08.A1V
Submersible wastewater pump
Vertical single-stage stainless steel submersible pump with integrated submersible 1-phase motor.
The pump is equipped with a ring frame and a handle, as well as a 10 meter power cable and a level switch for self starting and stopping.
The impeller is a VORTEX impeller that allows 35 millimeters to pass freely. This makes it suitable for extracting surface water, groundwater, wastewater, and similar types of water.
The pump has a dual axis seal and an intermediate oil reservoir pre filled with non-toxic premium oil.
The insulation level of the motor is F and it is equipped with a thermal overload protection device. Its ball bearings have deep grooves coated with grease, which gives it a long service life.

Liquid:
Liquid temperature range: 0-40 ° C
Liquid temperature during operation: 20 ° C
Density: 998.2 kg/m³

Technology:
Maximum flow: 5.83 L/S
Type of impeller: VORTEX
Max. Particle: 35 millimeters
Approvals: CE,RCM,VDE,LGABG,EAC,TUVRHWID,MORO,UKCA,SEPRO

Material Science:
Pump casing: Stainless steel
Pump housing: EN 1.4301
Pump casing: AISI 304
impeller: Stainless steel
EN 1.4301
AISI 304

Installation:
Environmental temperature range: 0-40 ° C
Interface model: Rp
Size of connection: 2 inch
Maximum installation depth: 7 meters
Automatic hooking device: Y
Place of installation: Indoor/outdoor

Electrical data:
Power input P1: 1.25 kW
Motor model: PSC
Rated power - P2: 0.71 kW
Power frequency: 50 Hz
Rated voltage: 1 x 230 V
Rated current: 5.44A
Cos phi - Power Factor: 0.98
Rated driver speed: 2795RPM
Capacitor size - operation: 16 µ F/400 V
Encapsulation level (IEC 34-5): IP68
Insulation class (IEC 85): F
Length of power cable: 10 meters
Cable plug type: NONE

other:

Net weight: 12 KG
Gross weight: 12.6 KG
