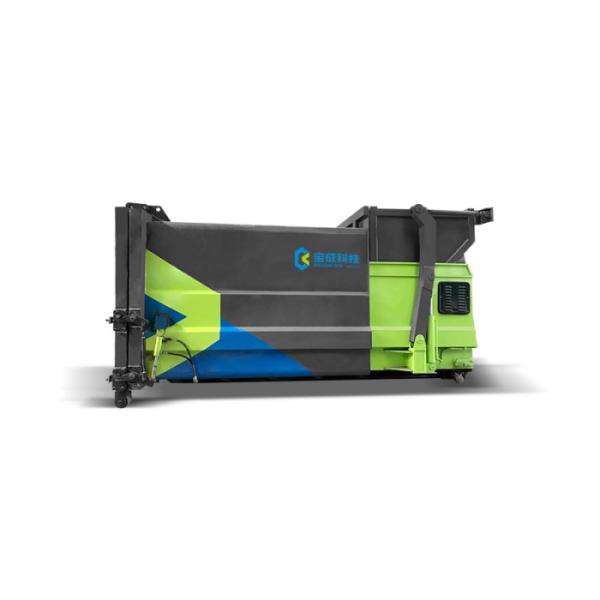

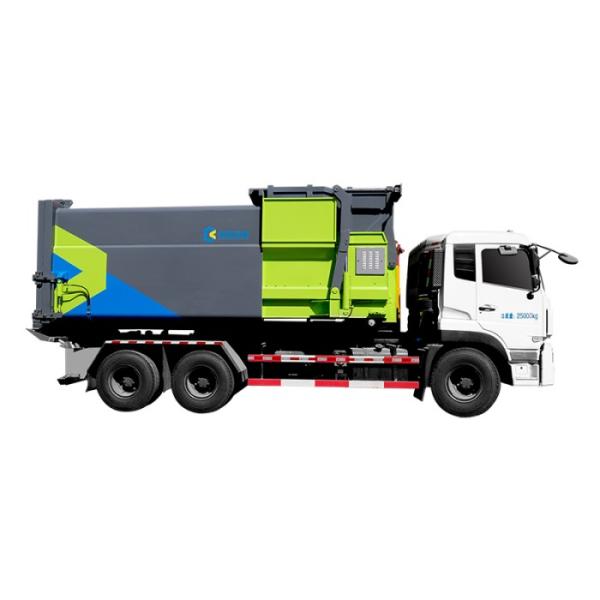

10m3 3.5tons Truck Mobile Garbage Compactor Mobile Trash Compactor LYM-8000F

Specifications

Brand Name :

Bioclean

Model Number :

LYM-8000F

Place of Origin :

Ningbo, China

MOQ :

1 Piece

Price :

USD 1200-2000

Payment Terms :

T/T

Supply Ability :

2000unit/Year

Delivery Time :

15-45work days

Packaging Details :

Wooden Case /Iron Frame/Container/SKD /CKD

Certification :

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Minimum Construction Size(LxWxH) :

7800×4000×4000mm

Overall Dimensions(LxWxH) :

4880×2250×2040mm

Rated Pressure of Hydraulic System :

20Mpa

Maximum Compression Force :

230kN

Garbage Bin Capacity :

10m³

Maximum Loaded Garbage Weight :

>6t

Pushing Stroke :

1250mm

Pushing Speed :

3.2m/min

Matching Power Supply Voltage :

220v/380v

power :

3kW

Total Weight :

3.5t

Effective Volume of Feeding Hopper :

2.2m³

Description

The 10m³ 3.5tons mobile garbage compactor is an all-in-one sanitation device, collecting, compressing and storing waste. Its compact design merges compaction mechanism and storage bin, no need for separate transfer vehicles.

Ideal for small communities/residential areas, handling daily waste easily. Good for commercial pedestrian streets/small business districts, moving flexibly on narrow roads. Fits schools/small factories with steady waste. Works in urban villages/old neighborhoods, moving freely where large vehicles can’t, saving space and boosting efficiency.

Minimum Construction Size	mm	7500×4000×4000
Overall Dimensions	mm	4880×2250×2040
Rated Pressure of Hydraulic System	MPa	20
Maximum Compression Force	kN	230
Garbage Bin Capacity	m³	10
Maximum Loaded Garbage Weight	t	>6
Pushing Stroke	mm	1250
Pushing Speed	m/min	3.2
Matching Power Supply Voltage	V	220/380
Power	kW	3
Total Weight	t	3.5
Effective Volume of Feeding Hopper	m³	2.5

Product Composition

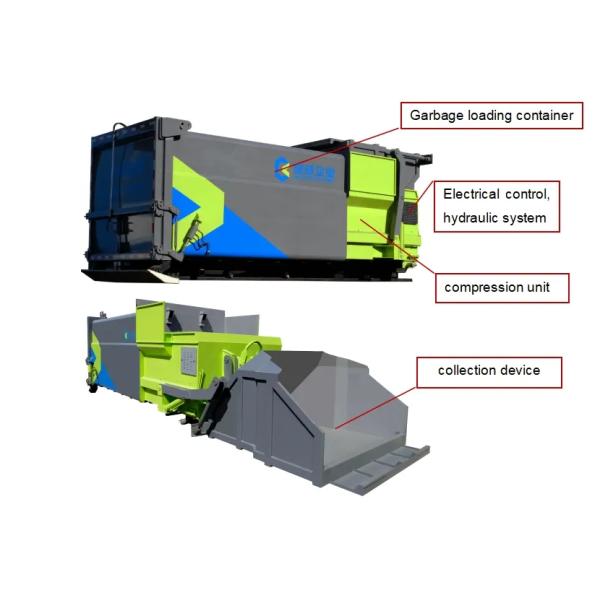

The components of the mobile garbage compactor include: garbage loading container, electrical control system, hydraulic system, compression unit, and collection device.

10m3 3.5tons Truck Mobile Garbage Compactor Mobile Trash Compactor LYM-8000F

(1) Garbage loading container: Integrates box shell, compression storage bin (2/3 capacity), and gravity-operated rear door locked by dual hydraulic cylinders. Quick-connect oil circuit enables truck-mounted operation.

(2) Collection device: Hopper-type with dual tilting cylinders flips waste into receiving bin. Optional barrel-turning mechanism available.

(3) Compression unit: Features foldable frame and compression cylinder. Pushing plate transfers waste to storage bin.

(4) Electrical control: Touchscreen PLC interface on left side for programming; wired remote handle for daily operation.

(5) Hydraulic system: Pump-valve configuration with over-range alarm. Fast-moving circuit optimizes efficiency, stability, and power consumption. Valves execute precise actions via electrical commands. (Word count reduced by ~40% while retaining technical details)

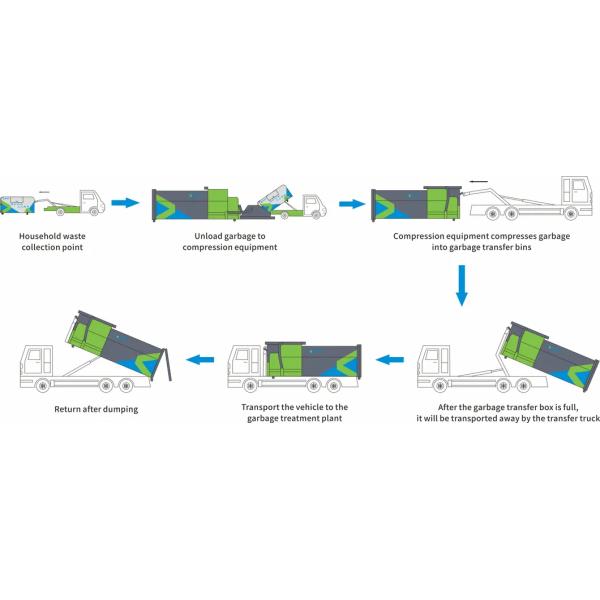

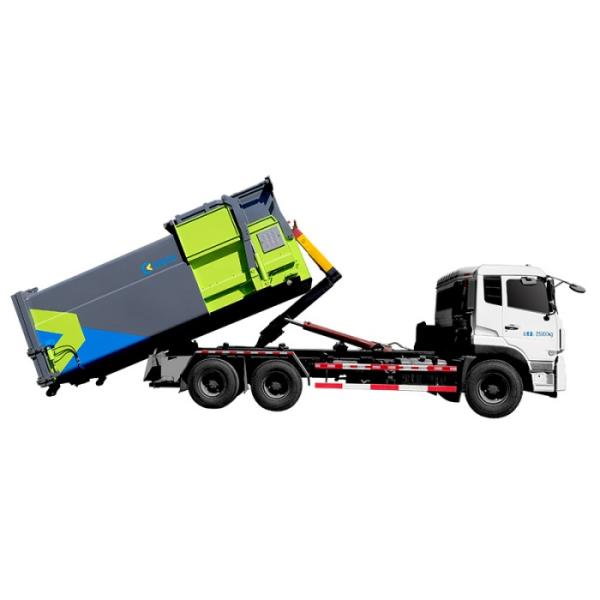

Operation Process

10m3 3.5tons Truck Mobile Garbage Compactor Mobile Trash Compactor LYM-8000F

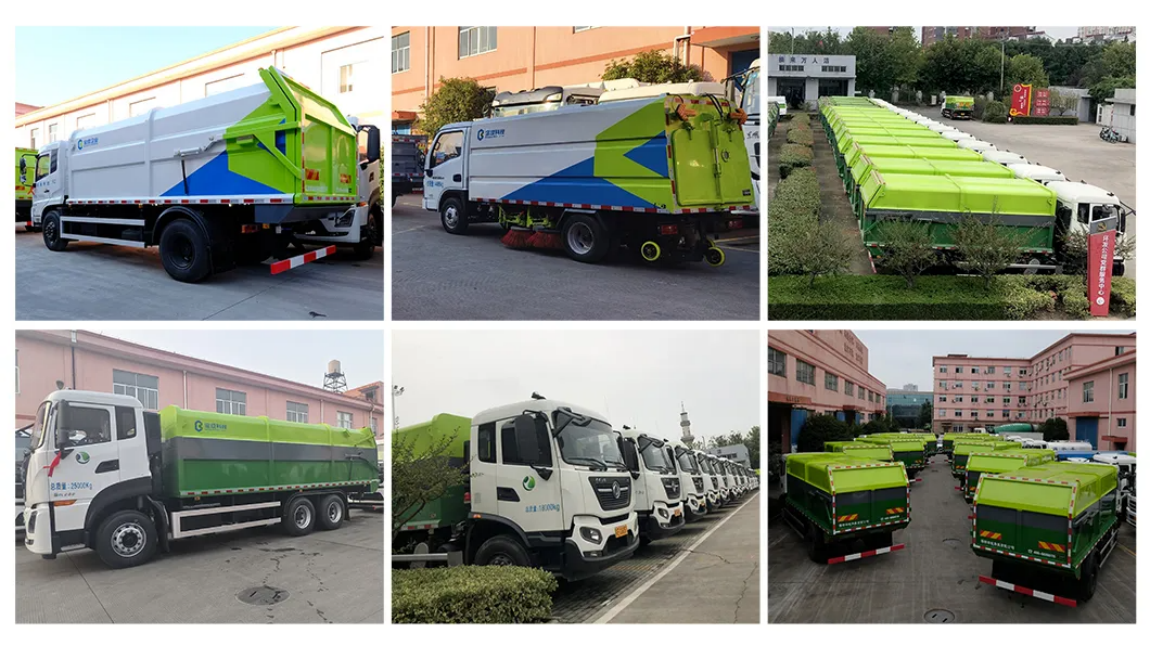

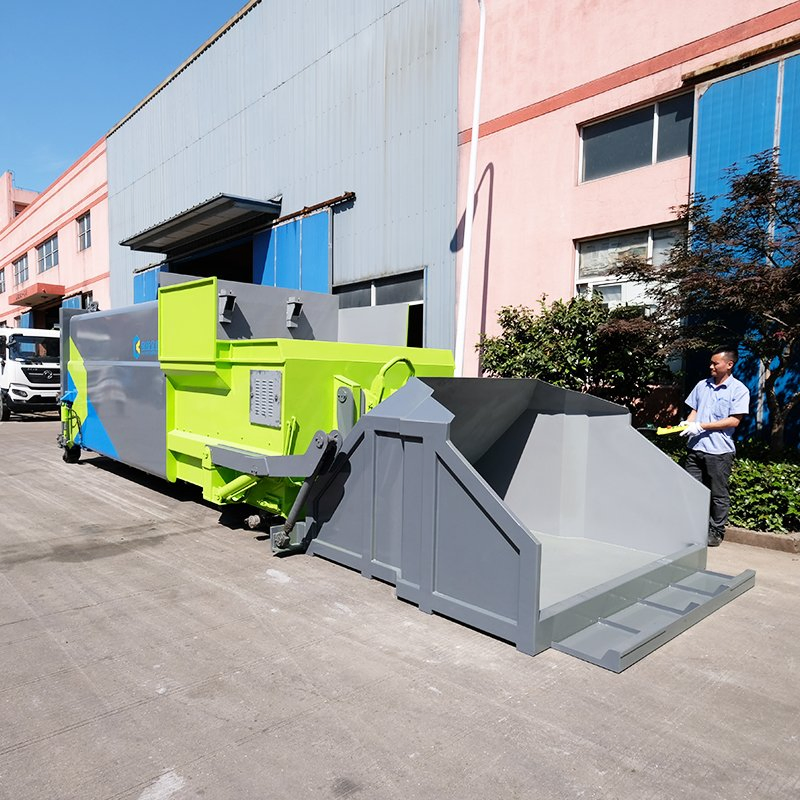

Actual Photos

10m3 3.5tons Truck Mobile Garbage Compactor Mobile Trash Compactor LYM-8000F
