Specifications
Brand Name :
Bioclean
Model Number :
LYM-13000F
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
2000unit/Year
Delivery Time :
15-45work days
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
External dimensions(LxWxH) :
6010×2500×2470mm
Architectural requirements(LxWxH) :
9000×4000×4000mm
Rated pressure :
24Mpa
Maximum compressive force :
340kN
Box volume :
15m³
Maximum loading weight :
>9t
Push stroke :
1250mm
Push speed :
3.2m/min
voltage :
220v/380v
power :
5.5kW
Overall weight :
6t
hopper capacity :
3.5m³
Name :
Mobile Refuse Compactor
Description

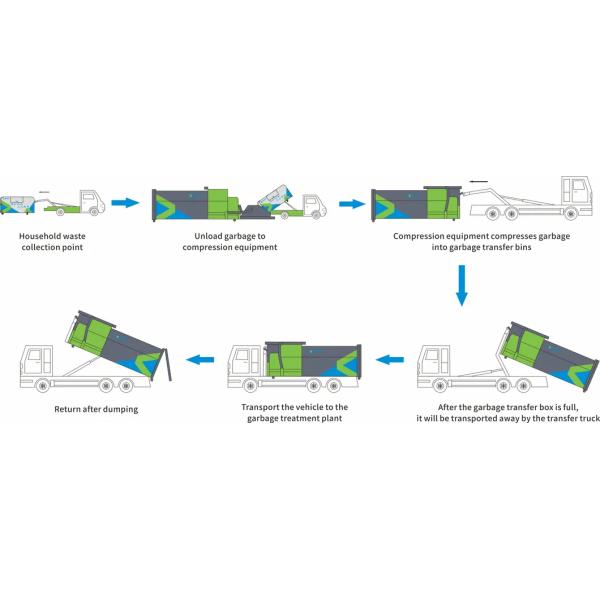

The 15m3 6tons mobile garbage compactor is an integrated sanitation tool, combining waste collection, compression and temporary storage. Its design merges compaction parts and storage bin, so no extra transfer cars are needed.
​
Suitable for large residential communities/town centers, managing massive daily waste. Fits big business circles/industrial parks with heavy waste. Useful for short transfers from small stations. Works along rural/suburban main roads, handling waste from multiple spots, saving effort and raising efficiency.
Minimum Construction Size mm 9600×4000×4000
Overall Dimensions mm 6010×2500×2470
Rated Pressure of Hydraulic System MPa 24
Maximum Compression Force kN 340
Garbage Bin Capacity m³ 15
Maximum Loaded Garbage Weight t >9
Pushing Stroke mm 1250
Pushing Speed m/min 3.2
Matching Power Supply Voltage V 220/380
Power kW 5.5
Total Weight t 6
Effective Volume of Feeding Hopper m³ 3.5

Product Composition

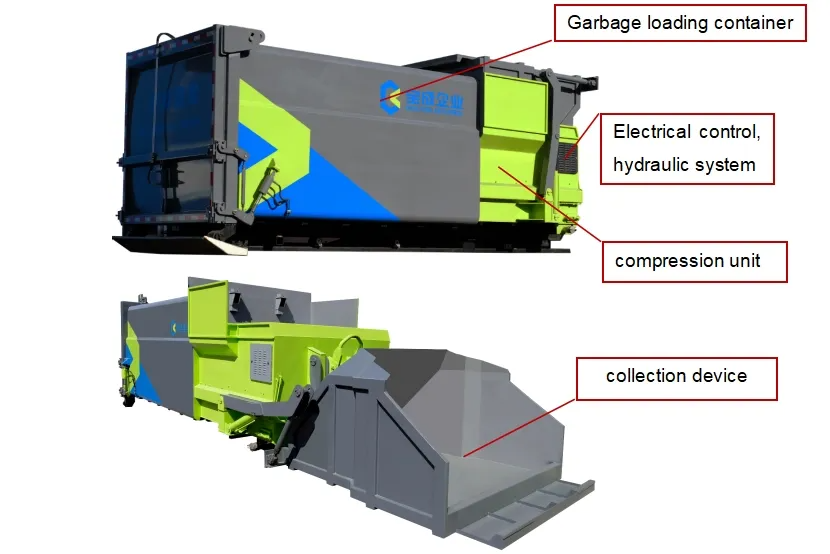

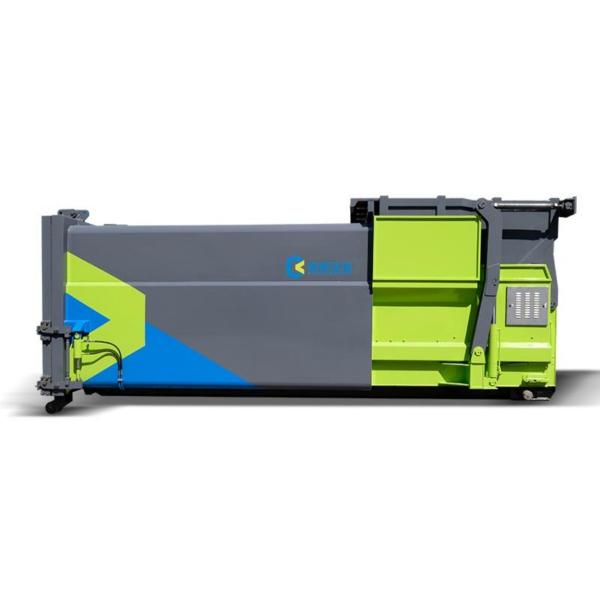

The components of the mobile garbage compactor include: garbage loading container, electrical control system, hydraulic system, compression unit, and collection device.

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

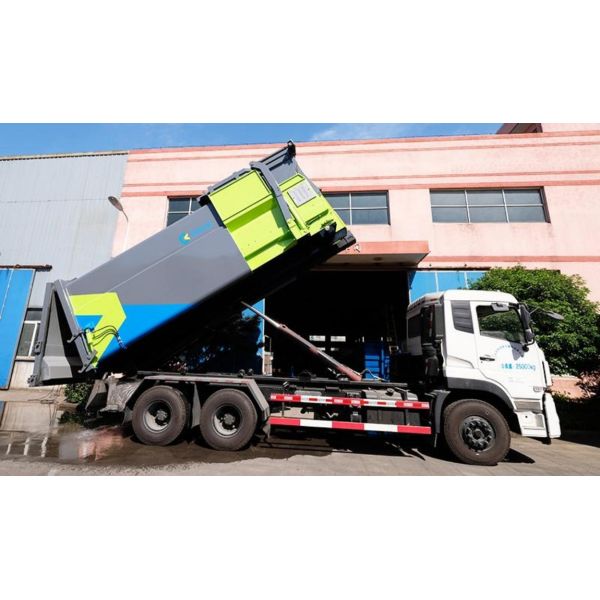

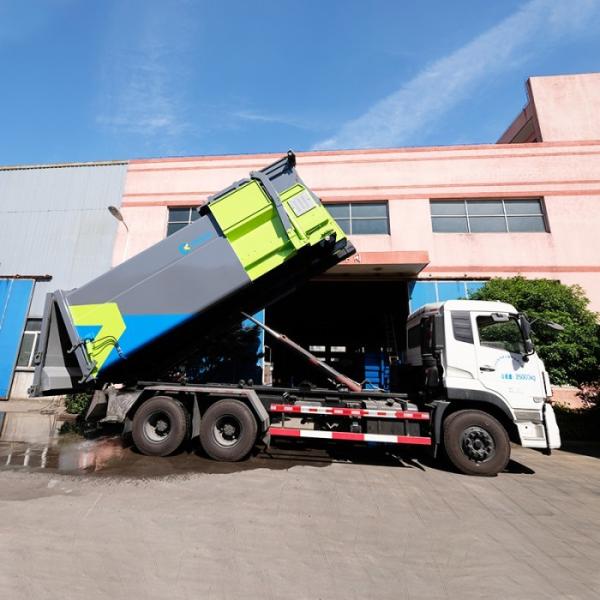

(1) Garbage loading container: Integrates box shell, compression storage bin (2/3 capacity), and gravity-operated rear door locked by dual hydraulic cylinders. Quick-connect oil circuit enables truck-mounted operation.

(2) Collection device: Hopper-type with dual tilting cylinders flips waste into receiving bin. Optional barrel-turning mechanism available.

(3) Compression unit: Features foldable frame and compression cylinder. Pushing plate transfers waste to storage bin.

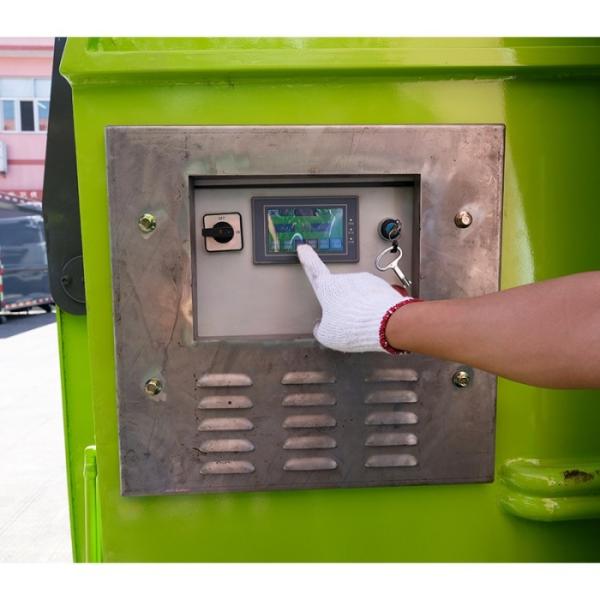

(4) Electrical control: Touchscreen PLC interface on left side for programming; wired remote handle for daily operation.

(5) Hydraulic system: Pump-valve configuration with over-range alarm. Fast-moving circuit optimizes efficiency, stability, and power consumption. Valves execute precise actions via electrical commands. (Word count reduced by ~40% while retaining technical details)

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

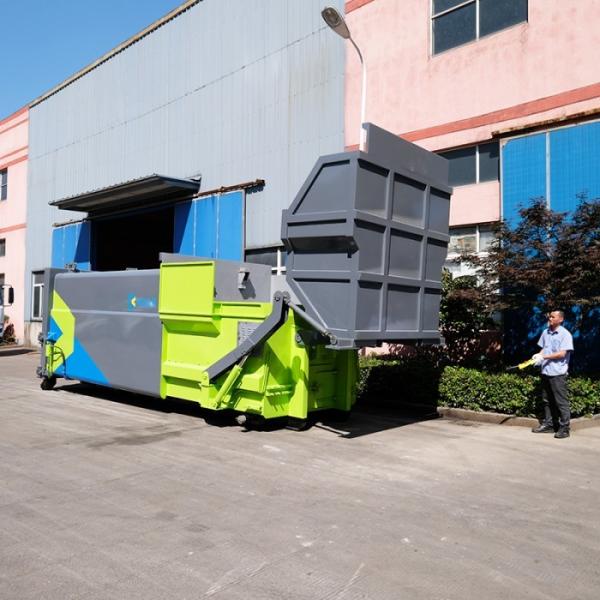

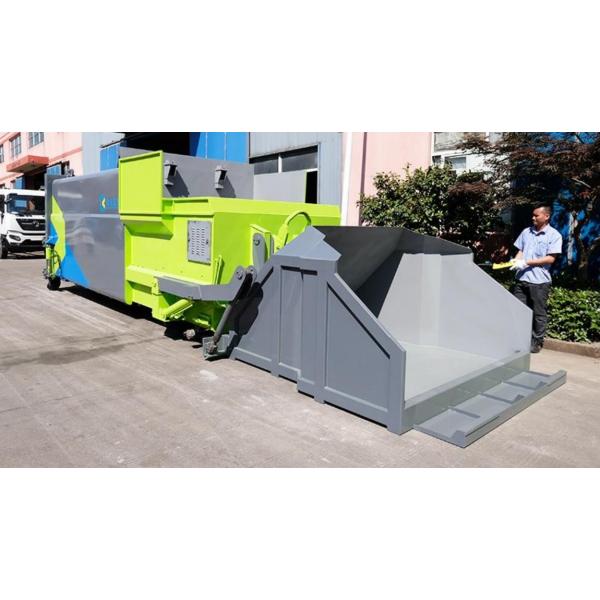

Actual Photos

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F
