Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5120ZXXC
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
7800-9500usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Dimension(L x W x H) :
7285×2550×3100mm
Chassis :
DFH1180EX8
Engine :
D6.7NS6B230/B6.2NS6B210
Weight :
8450kg
Load Capacity :
10375kg
Chassis Total Capacity :
18000kg
Maximum Speed :
89km/h
Approaching/Departure Angle :
17°/17°
Front/Rear Overhang :
1400mm/1385mm
Axle Load :
6500kg/11500(Two axis group)
Description

The ZBJ5120ZXXC detachable garbage truck uses diesel. Its main device is a lifting arm with three key functions:

First, it quickly loads or unloads garbage bins. It can lift bulk bins from the ground onto the truck for transport, or lower them to specific spots.

Second, it dumps garbage automatically by tipping the bins on the truck.

Third, it ensures safety. It has a rear support to stop the truck’s front from lifting when loading/unloading. It also has a lock to keep bins from falling during transport or dumping.

It works with 3720x2360x1940mm bulk bins (5.4-ton load, 10.5-ton total weight), and is great for medium to large communities or busy residential areas.

Item ZBJ5120ZXXC
Energy Type Diesel
Dimension 6300*2520*2760
Chassis DFH1120E1
Engine (Moto) D4.5NS6B190
Curb Weight 5950
Rated Loading 6350
Total Mass 12490
Max.Speed 89
App./Dep.Angle 17/20
Front/Rear Overhang 1400/1100
Axle Load 4400/8090

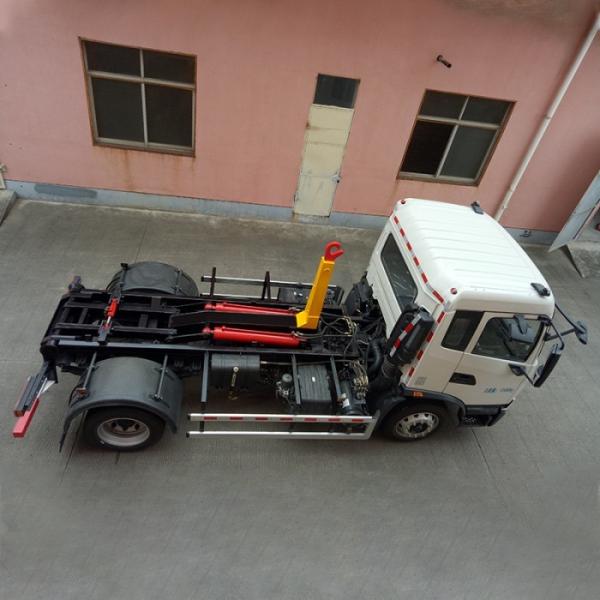

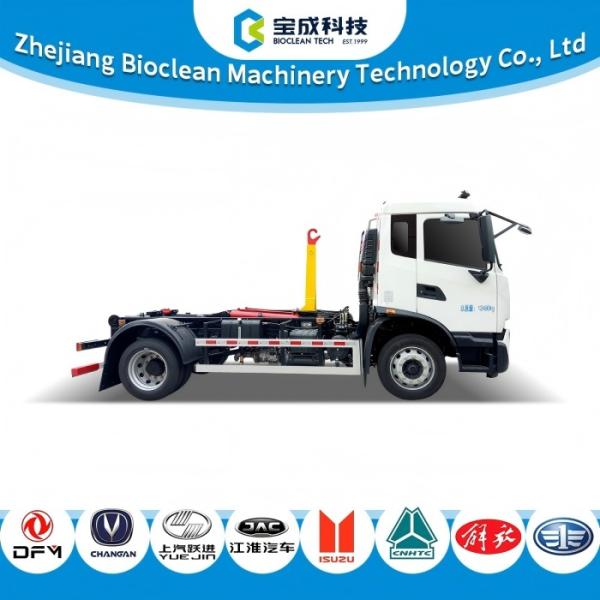

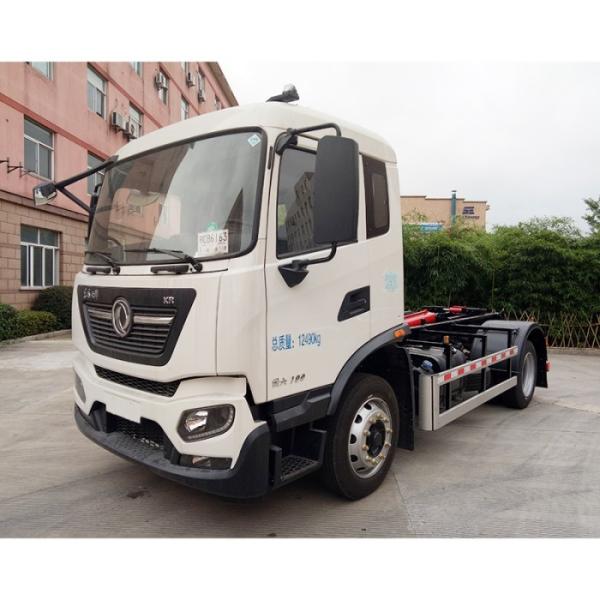

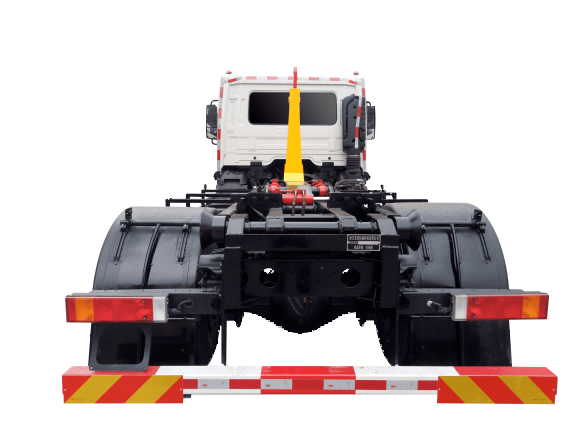

Actual photos

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck

Diesel 17m3 10.5ton Detachable Garbage Truck Refuse Collection Hooklift Truck
