4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5031ZXXBEV
Place of Origin :
Ningbo, China
MOQ :
1 Piece
Price :
4600-6500usd
Payment Terms :
T/T
Supply Ability :
5,000 units per year
Delivery Time :
15-45 workdays
Packaging Details :
Wooden Case /Iron Frame/Container/SKD /CKD
Certification :
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Dimension(L x W x H) :
4330×1600×1935mm
Chassis :
SC1031XND64BEV
Drive Motor :
TZ180XSIN101
Rated/Peak Power :
30/60KW
Battery Capacity :
41.86KWh
Chassis Total Capacity :
1110kg
Maximum Speed :
80km/h
Approaching/Departure Angle :
40°/23°
Front/Rear Overhang :
720mm/910mm
Loading Capacity :
2840Kg
Description
Model ZBJ5031ZXXBEV Detachable Garbage Truck
An all-electric vehicle with a core lifting arm mechanism, offering three key functions:

  • Swift bin handling: Lifts 2230×1470×1250mm bulk bins (1.5-ton capacity) from the ground for transport or lowers them to designated spots.
  • Automatic dumping: Tilts on-board bins to empty contents.
  • Safety assurance: Rear supports prevent front-end lift during loading; locking mechanisms secure bins in transit.

With a 2700mm wheelbase for tight turns and agile movement, its electric power ensures eco-friendliness, ideal for narrow areas like residential zones and back lanes.
Item ZBJ5031ZXXBEV
Energy Type Pure Electric
Dimension 4330x1600x1935mm
Chassis SC1031XND64BEV
Engine (Moto) TZ180XSIN101
Curb Weight 1600 kg
Rated Loading 1110 kg
Total Mass 2840 kg
Max.Speed 80 km/h
App./Dep.Angle 40°/23°
Front/Rear Overhang 720/910kg
Axle Load 1290/1550kg

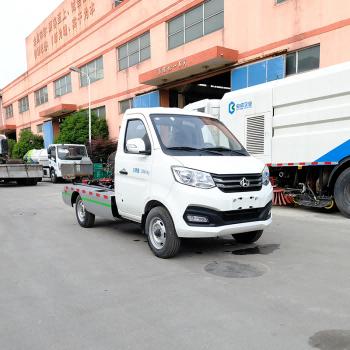

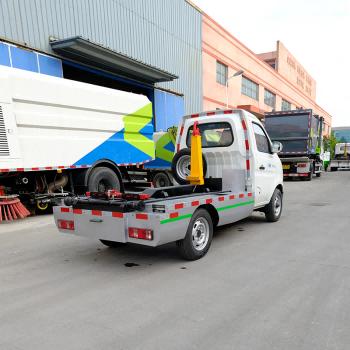

Actual photos

4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity4.1M3 1.5ton Pure Electric Hook Lift Garbage Truck With 2840Kg Loading Capacity
