High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor Comprehensive Technical Support
High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor Comprehensive Technical Support
High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor Comprehensive Technical Support
High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor Comprehensive Technical Support
High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor Comprehensive Technical Support
High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor Comprehensive Technical Support
Specifications
Brand Name :
Realkey
Model Number :
RKSORT-SWS
Certification :
CE/EAC/UL/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD 10000/Piece
Payment Terms :
L/C,T/T,D/P
Custom Order :
Accept
OEM/ODM :
Accept
Fatory :
Direct Factory With Own Exporting Platform
Feature :
Breaking the limitation of manual sorting of large and irregular items
Description
High Accuracy Conveyor Belt Sorter Automatic Sorting Conveyor
Product Specifications
Comprehensive technical support with direct factory production and exporting capabilities.
Key Features
  • Breaks limitations of manual sorting for large and irregular items
  • Accepts custom orders and OEM/ODM services

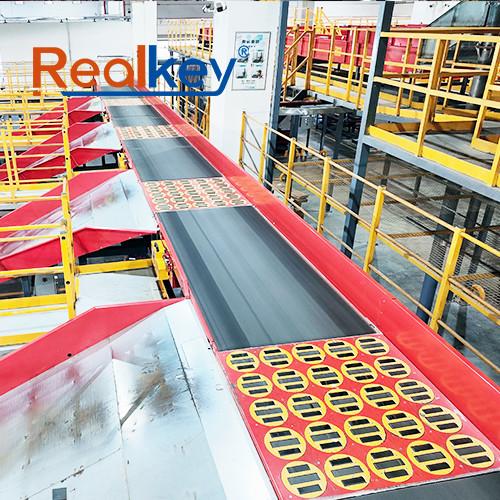

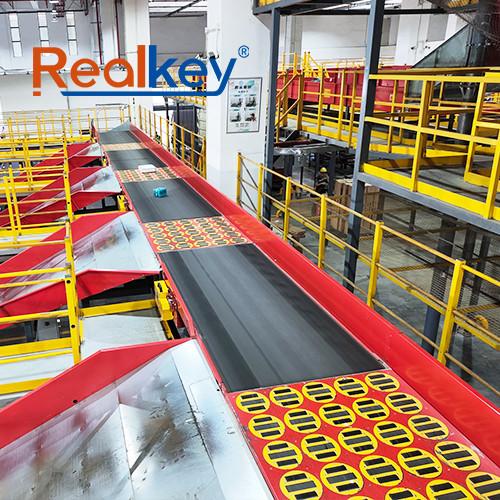

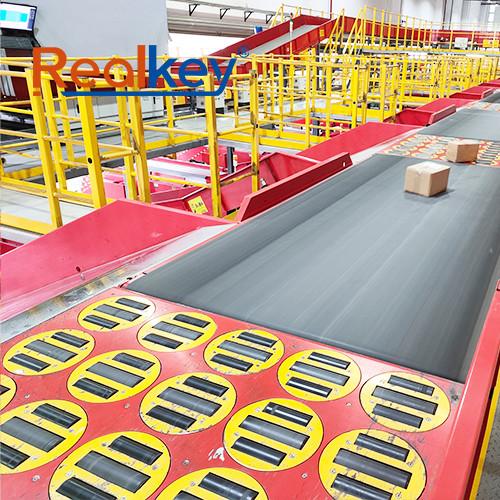

Swivel Wheel Sorting Machine
An advanced solution for sorting packages and cartons in conveyor systems, ideal for e-commerce warehouses with comprehensive technical support.
The system consists of electric drum (wheel), steering mechanism, control unit, and structural frame. It handles various packaging types including cartons (up to 50kg), waterproof bags, woven bags, and irregularly shaped items with flat bottoms.
Technical Parameters
Model SWS-10M SWS-12H
Sorted Items Medium to large parcels, woven bags, flexible packages
Weight Range 0.2kg≤M≤50kg
Sorting Capacity 4000 pieces/hour 6000 pieces/hour
Parcel Size Range MAX:1000*1000*700mm
MIN:150*150*30mm
Sorting Success Rate 99.99%
Conveying Speed 1-1.5m/s 1.2-2m/s
Product Advantages
Versatile Design
Features a flat surface with rubber-coated electric rollers for smooth handling of various items including parcels, clothing, books, and cartons.
High Efficiency
Capable of sorting up to 6000 items per hour with high load capacity and low noise operation.
Robust Construction
Simple yet durable design with servo motor steering for precise angle control and quick response times.
Easy Maintenance
Modular design allows for quick disassembly and maintenance of individual components.
Applications
Widely used in logistics centers, e-commerce warehouses, express delivery services, and manufacturing production lines. Also applicable in healthcare, food production, and renewable energy sectors.
Technical Advantages
  • Advanced control system with sensor optimization
  • CNC precision machining for durable components
  • Comprehensive safety features and protective measures
  • 17 years of industry experience in automated sorting solutions
