Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With EPS System
Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With EPS System
Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With EPS System
Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With EPS System
Specifications
Brand Name :
REACH
Model Number :
CBD20Z
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
600 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
1set / pallet or 1set / wooden box
Capacity :
2000kg
Lowered fork height :
82mm
Max. lifting height :
202mm
Tyre size, front :
250*80mm
Tyre size, rear :
82*98mm
Fork dimensions :
54/180/1100(1150/1220)mm
Turning radius :
1630/1680/1750mm
Travel speed, laden/unladen :
7.5/8km/h
Description

Seated type electric pallet truck with 2000kg capacity and electric power steering system

Quick details:

Model:​ Seated type Electric Pallet Truck CBD20Z

Capacity: 2000kg

Lowered fork height: 82mm

Max. Lifting height: 202mm

Aisle width for pallets, 1000*1200 crossways: 2115/2165/2235mm

Aisle width for pallets, 800*1200 lengthways: 2215/2215/2235mm

Battery: 24V270AH

​Service weight: 900kg

Advantages:​

​Safety and Productivity

  • Advanced AC control with reliable performance is easy to maintain.
  • Speed frequency control makes good control performance.
  • Electric power steering system (EPS).
  • Intelligentized regenerative brake system combined with electromagnetic system allows safe and reliable brake and prolongs life time.
  • Side battery with roll out system, convenient to handle.
  • Connecting rod will not bend and deform at working, and the length can be adjust accurately and conveniently.
  • The guide wheel on fork head makes convenient pallet work.
  • High level configuration of motor power and battery capacity, max travel speed under laden arrives 7.5-7.8km/h, greatly improved work efficiency and reliability.
  • With small turning radius and good looking.
  • The key components is set compact and reasonable, which is convenient to maintenance.
  • Proportional power assistant steering.
  • Open structure design makes repair and maintenance convenient.
  • With strong power and good throughput capacity, gradeability under unladen can reach 25% and arrive 10% under laden situation.
  • Lift height of 202mm is better for pallets applicability.

Option:​

  • 2000/2500kg capacity.
  • Rapid and simple battery changing system.

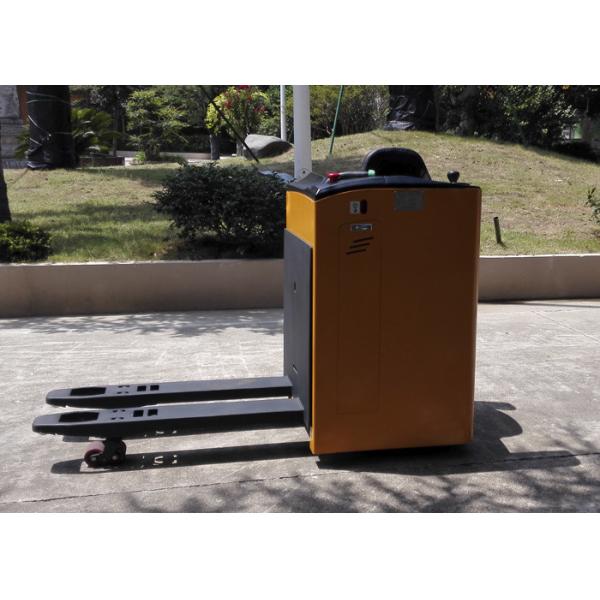

Seated type electric pallet truck with 2000kg capacity

Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With EPS System

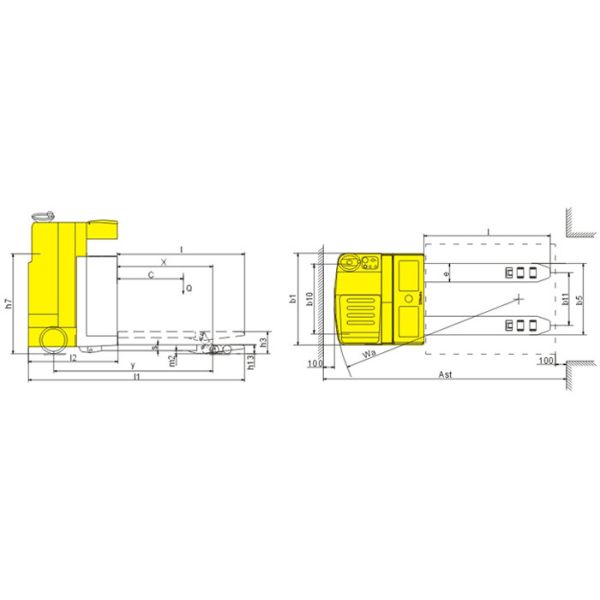

SPECIFICATIONS OF SEATED TYPE ELECTRIC PALLET TRUCK
Model CBD20Z
Operate type seated
Load capacity kg 2000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 800/850/920
Height, lowered mm 82
Tyre size, front mm 250*80
Tyre size, rear mm 82*98
Additional wheels (dimensions) mm 160*55
Max. lifting height mm 202
Seat height/stand height mm 900
Overall length mm 1900/1950/2020
Length to face of forks mm 800
Overall width mm 864
Fork dimensions mm 54/180/1100(1150/1220)
Width overall forks mm 520/550/650/685
Aisle width for pallets 1000*1200 crossways mm 2115/2165/2235
Aisle width for pallets 800*1200 lengthways mm 2215/2215/2235
Turning radius mm 1630/1680/1750
Travel speed, laden/unladen km/h 7.5/8
Battery V/Ah 24/270
Service weight kg 900

Seated Type Electric Pallet Truck 2 Ton Strong Power Good Looking With EPS System
