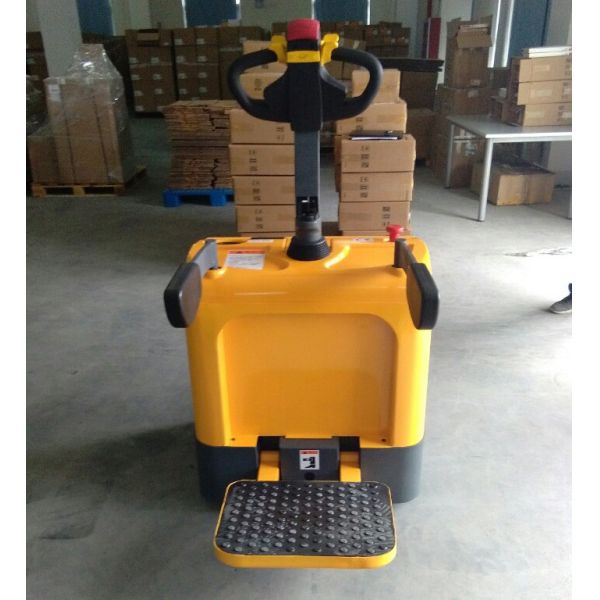

Small turning radius 2000kg electric pallet truck with Germany FREI tiller head

Quick details:

Model:​ Electric pallet truck Stand on type CBD20R​

Capacity: 2000kg

Lowered fork height: 82mm

Max. Lifting height: 202mm

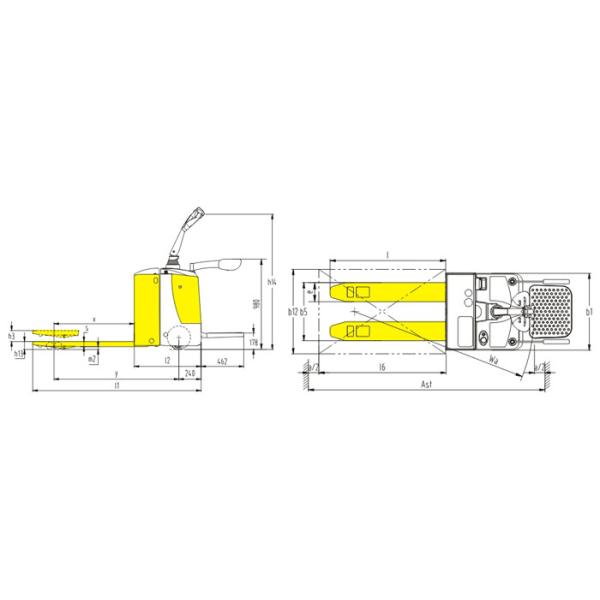

Fork dimensions: 54/180/1100(1150/1220)mm

Width overall forks: 520/550/650/685mm

Battery: 24V210AH

​Service weight: 710kg

Advantages:​

• The handle is equipped with emergency reverse switch, make the operation more safe.
• Display of electric quantity and display of working time.
• Emergency power off switch.
• Turtle shaped slow running switch.
• Stepless speed change control.
• The balance wheel with spring adjusting structure has good wear resistance and stability.
• AC motor, no carbon brush, has good ramp starting performance.
• The side door and the battery cover can be completely opened up, the battery can be pulled out from the side, easy to change the battery and maintenance.
• Small turning radius, wheel replacement and maintenance is simple and convenient.
• The motor has better dustproof and waterproof effect, which makes the brake and motor more durable, and the reliability is improved.
• Stand on pedal has good shockproof effect, comfortable operation, not easy to fatigue.
• Low voltage protection system to prolong the service life of battery.
• CANbus technology greatly simplifies the line and enhances the reliability of the electric pallet truck.
• Holzer sensor reduces wear and tear of electronic components and increases service life.
• Strong steel cover, easy to open, simple, easy maintenance, and repair.

Stand-on type platform pallet truck, with small turning radius and super light steering system. Widely used in large warehouse and big supermarket for medium distance transport.
