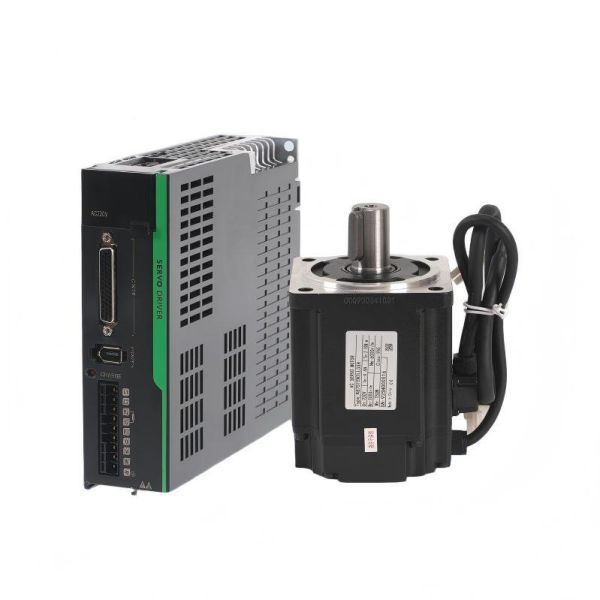

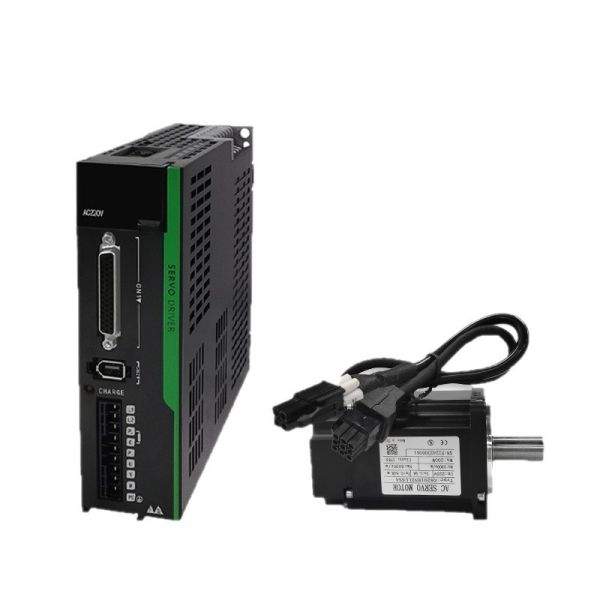

80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
80/130 servo motor driver, 750w/850w/1kw servo motor set, low-speed high-torque servo
Specifications
Model Number :
WH-RB045
Price :
usd10.5~usd195
Supply Ability :
1000000piece/month
Certification :
CE
Payment Terms :
L/C,T/T
MOQ :
1 piece
Delivery Time :
15-20 days after receive the payment
Packaging Details :
carton
Brand Name :
wanhe
Place of Origin :
foshan , china
Description

Series: K Series
Model: Servo Kit (K3 Driver + 750w Standard Motor + 3m Cable Set), Servo Kit (K3 Driver + 1000w Standard Motor)
Quasi-motor + 3m set of wires). Servo kit (K3 driver + 850w standard motor + 3m set of wires)
Product Code: S80
Power: 750W/1000W/850W
Rated voltage: Single/three-phase 220V
Product certification: CE
Applicable motor: AC servo motor (standard/with brake)
Speed response frequency: 50~60HZ
Scope of application: textile, engraving, machine tool
Product type: servo motor kit
Axle height: 35/58mm
Rated power: 750W/1000W/850W
Rated current: 4.4/5.5/4.6A
Rated speed: 1500/3000r/min
Rated torque: 2.4/3.18/5.4nm
Encoder type: 17-bit magnetic encoder absolute value (23-bit optional)
Installation method: direct insertion
Shaft end specification: keyway
Protection level: IP65
Operating altitude: below 1000m
Operating humidity: 20~85%RH
Operating ambient temperature: 0~55℃
Weight: 2.1~8.2kg
The rated torque of an 80 flange servo motor and a 750W servo motor is 2.39 Nm, and the rated speed is 3000 rpm
The rated torque of an 80 flange servo motor and a 1000W servo motor is 3.18 Nm, and the rated speed is 3000 rpm
The rated torque of the 80 flange servo motor and 850W servo motor is 5.41 Nm, and the rated speed is 1500 rpm
