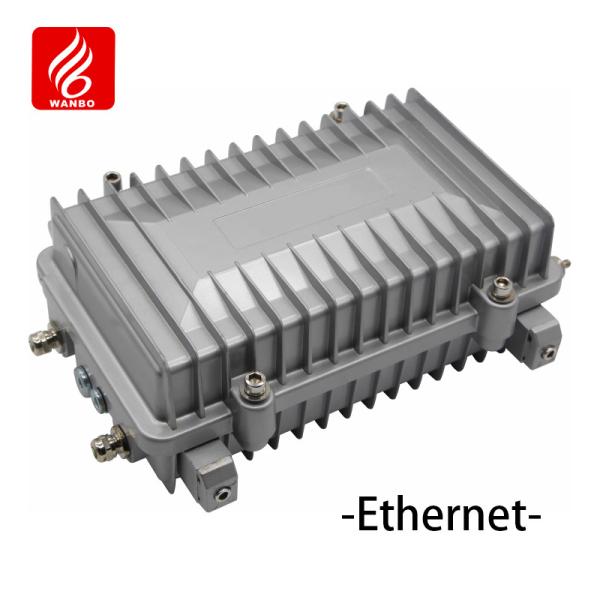

K03ZWE IP66 Ethernet Outdoor Wired Zone Controller PGS RS485
K03ZWE IP66 Ethernet Outdoor Wired Zone Controller PGS RS485
K03ZWE IP66 Ethernet Outdoor Wired Zone Controller PGS RS485
K03ZWE IP66 Ethernet Outdoor Wired Zone Controller PGS RS485
Specifications
Brand Name :
wanbo
Model Number :
WBP-K03ZW-E
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 ~ 5000 piece 30days
Delivery Time :
7-15 working day
Product Model :
WBP-K03ZW-E
Product Net Weight :
5.5kg
Product Temperature :
-40℃~+85℃
Product Consumption :
≤2 W
Power Supply Mode :
AC110V～240V
Dimension :
300*230*110 mm
Levels of Protection :
IP66
Ambient Humidity :
90% RH (no condensation)
Description

Specification

Product Model:
WBP-K03ZW-E
Net Weight: 5.5 KG
Specification and Dimension: 300*230*110 mm
Power Supply Mode: AC 110V～240V
Power Dissipation: <2W
Working Temperature: -40℃～+85℃
Communication Mode:

Loop 1 RF470MHz

Loop 2 CAN

Loop 3 RS485
Communication Distance:

RF470MHz≤100m

CAN≤1000m

RS485:≤300 m
Apparatus Capacity: Detector: 60 (depending on site distance)
Levels of Protection: IP66
Ambient Humidity: 90% RH (no condensation)

Table 1 Technical parameter table of the outdoor wired zone controller

Product Description

The outdoor zone controller is utilized to connect the centralized controller with the dual-mode geomagnetic parking space detector, guide screen, and other components. The outdoor zone controller collects the status information of all geomagnetic parking detectors within its zone in real time via RF470MHz wireless communication, and uploads all parking status information to the outdoor centralized controller. The outdoor zone controller features a high protection level of IP66, which effectively copes with the harsh operating environment of outdoor parking lots.

Product features

  • Utilizing the internationally advanced 32-bit ARM processor and full industrial grade design to ensure the stability and reliability of the products.
  • The controller adopts a waterproof and dustproof design with a protection grade of IP66, which meets the requirements of harsh outdoor environments.
  • Employ the nearby power access mode and conduct wireless communication with the detector, thereby reducing construction wiring and subsequent maintenance costs.
  • Featuring multi-level routing with the outdoor centralized controller, the system has strong networking capabilities.

Example diagram of the site installation
