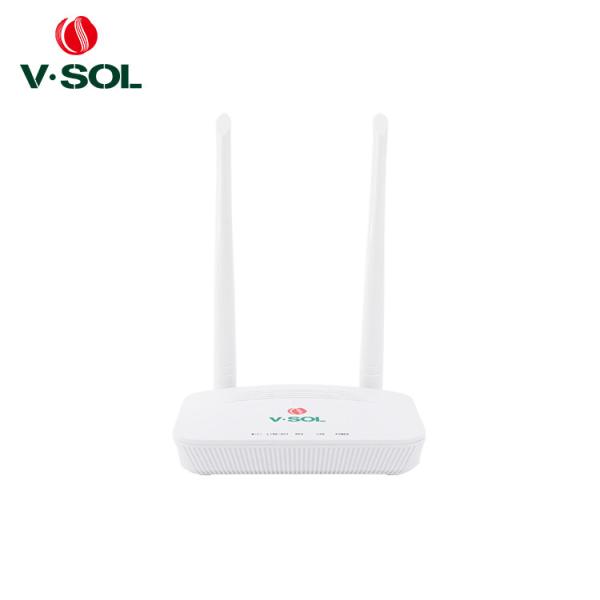

Mini GEPON Routing FTTH ONU Modem Realtek Chipset 1GE WiFi V2801REW
Mini GEPON Routing FTTH ONU Modem Realtek Chipset 1GE WiFi V2801REW
Mini GEPON Routing FTTH ONU Modem Realtek Chipset 1GE WiFi V2801REW
Mini GEPON Routing FTTH ONU Modem Realtek Chipset 1GE WiFi V2801REW
Specifications
Brand Name :
V-solution
Model Number :
V2801REW
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
10000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product name :
1xG/EPON + 1GE + WiFi
PON Inferface :
1xGPON EPON PX20+ and GPON Class B+
LAN :
10/100/1000M Full/Half, RJ45 connector
WiFi interface :
Compliant with IEEE802.11b/g/n
Dimension :
120mm×78mm×30mm（L×W×H）
Material :
ABS Plastic
Description

V2801REW Epon Onu Realtek Chipset Mini GEPON Routing ONU Modem​

Product Description

G/EPON 1GE+WiFi ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, good WiFi coverage and also has a powerful firewall function.

G/EPON 1GE+WiFi ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

Single Port EPON GPON ONU

Mini GEPON Routing FTTH ONU Modem Realtek Chipset 1GE WiFi V2801REW

Key Features

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Support NAT, Firewall function.
  • Integrated 802.11b/g/n, 300Mbps
  • Integrated OAM remote configuration and maintenance function.
  • Support rich QinQ VLAN functions and IGMP Snooping multicast features.
  • Functions like transceiver diagnostic monitoring, transmitter disable, etc.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

Application

Mini GEPON Routing FTTH ONU Modem Realtek Chipset 1GE WiFi V2801REW

Specifications

Technical items
Description
V2801REW
Main chip
Realtek
Upstream PON interface 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps
Wavelength Tx 1310nm, Rx 1490nm
Optical interface SC connector
Downstream LAN interface 1 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
WLAN Compliant with IEEE802.11b/g/n, 2R2T, 300Mbps, One internal antenna and one external antenna
Indicators 5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
DC power supply +12V, external AC-DC power adaptor
Power switch 1
Power consumption ≤3W
Operating condition Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed)
Dimension 120mm*78mm*28mm(length*width*height)
Net weight 0.25Kg
