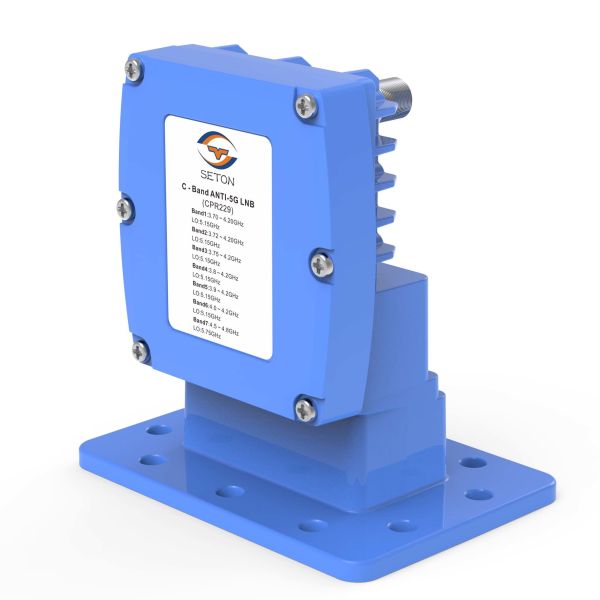

3.7 - 4.2GHz High Gain Low Noise FSS LNB C Band FSS System Anti 5G LNB
3.7 - 4.2GHz High Gain Low Noise FSS LNB C Band FSS System Anti 5G LNB
3.7 - 4.2GHz High Gain Low Noise FSS LNB C Band FSS System Anti 5G LNB
3.7 - 4.2GHz High Gain Low Noise FSS LNB C Band FSS System Anti 5G LNB
Specifications
Brand Name :
SETON
Model Number :
WR229
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
15 million pieces
Packaging Details :
CARTON
Input Frequency :
3.7~4.2GHz(Customizable design)
Output Frequency :
950MHz ~ 1450MHz
Noise figure :
30° K (Typ.)/50° K (Max.)
Conversion Gain :
58dB~68dB/ 63dB (Typ.)
LNB Input 5G Power level :
-30dBm (Max.)
LNB Input Rejection :
50dBc min.(@100MHz)
5G IMT :
3.3~3.6GHz
Delivery Time :
30-35 days
MOQ :
1pcs
Description

Strong Rejection-5G 3.5G IMT High Gain Low Noise WR229 LNB


LNB: 3.7~4.2GHz (Customizable design according to difference frequency)
5G IMT: 3.3~3.6GHz
Guard band: 100MHz
LNB Input 5G Power level: -30~-20dBm@ 3.3~3.6GHz.

1. Output gain should not have lots of intermodulation when 3.3~3.6GHz interference input WR229 LNB.
2. Output gain should not be saturated when 3.3~3.6GHz interference input WR229 LNB.


Specifications


Input Frequency

3700 MHz ~ 4200 MHz

Output Frequency

950 MHz ~ 1450 MHz

Noise figure

30° K (Typ.)/50° K (Max.)
Phase noise @ 1 KHz -75 dBc/Hz

Phase noise @ 10 KHz

-85 dBc/Hz
Phase noise @ 100 KHz -95 dBc/Hz

Conversion Gain

58 dB~68 dB/ 63dB (Typ.)

Gain Flatness

5 dBp-p (Max.)

P1 dB

+10 dBm (Min.)

VSWR Input

2.2:1 (Max.)
VSWR Output 2.2:1 (Max.)

Local Oscillator

 5.15GHz

Local Oscillator Stability

± 25 KHz

LNB Input Rejection

50 dBc min.(@100MHz)

P1db ( LNB Input 5G Power Level )

-30 dBm (Max.)

DC Power

+12 VDC - + 24 VDC
Input Connection WR229G
Output Conector F (75 Ω) / N(50Ω)

Current

200mA (Max.)


FREQUENCY BANDS AVAILABLE ANTI-5G LNB


Frequency Band(GHz)

3.7~4.2

3.72~4.2

3.8~4.2

3.9~4.2

4.0~4.2

L.O. Frequency(GHz)

5.15

5.15

5.15

5.15

5.15

IF Frequency(MHz)

950~1450

950~1430

950~1350

950~1250

950~1150



FAQQ: What is an ANTI-5G WR229 LNB?A: The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.

Q: What is a Strong Rejection-5G WR229 LNB?A: WR229 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, WR229 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR229 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, WR229 LNB built-in high performance out-band rejection passive filter.

Q: What is High Gain Low Noise?

A: WR229 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise:50°K(Max.)/ 0.8dB(Max.), which can guarantee system better C/N value.
