Desktop Mixing Amplifier 60W Digital Speaker Mixer Amplifier

Specifications

Place of Origin :

Guangdong, China

Model Number :

PD-60M

MOQ :

100

warranty :

3years

dimension :

215*220*44

output power :

60W

Frequency response :

80HZ-16KHZ+/-1DB

Recommended use :

for televisions, For DVD players, for gaming consoles, for computers, for music players, For surround sound systems

Description

Product Description

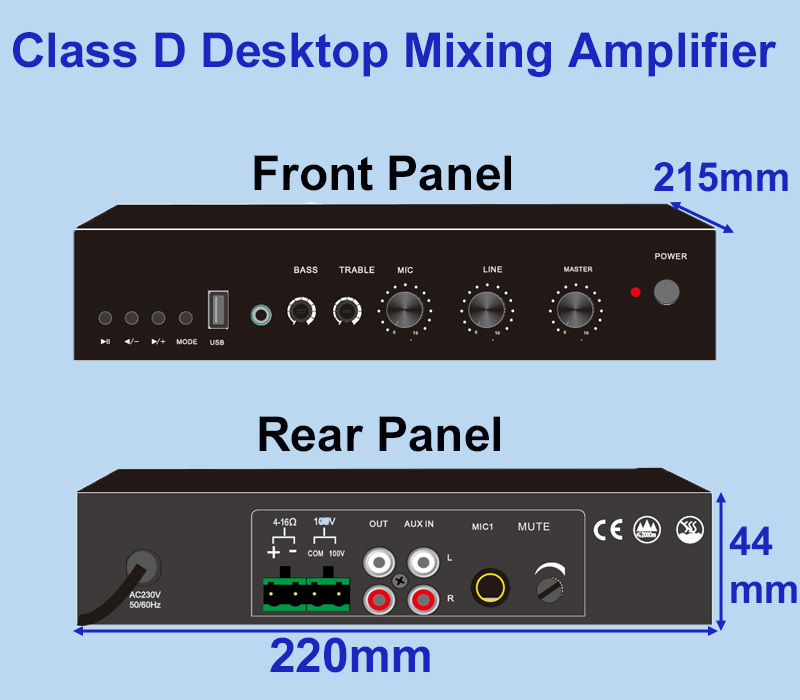

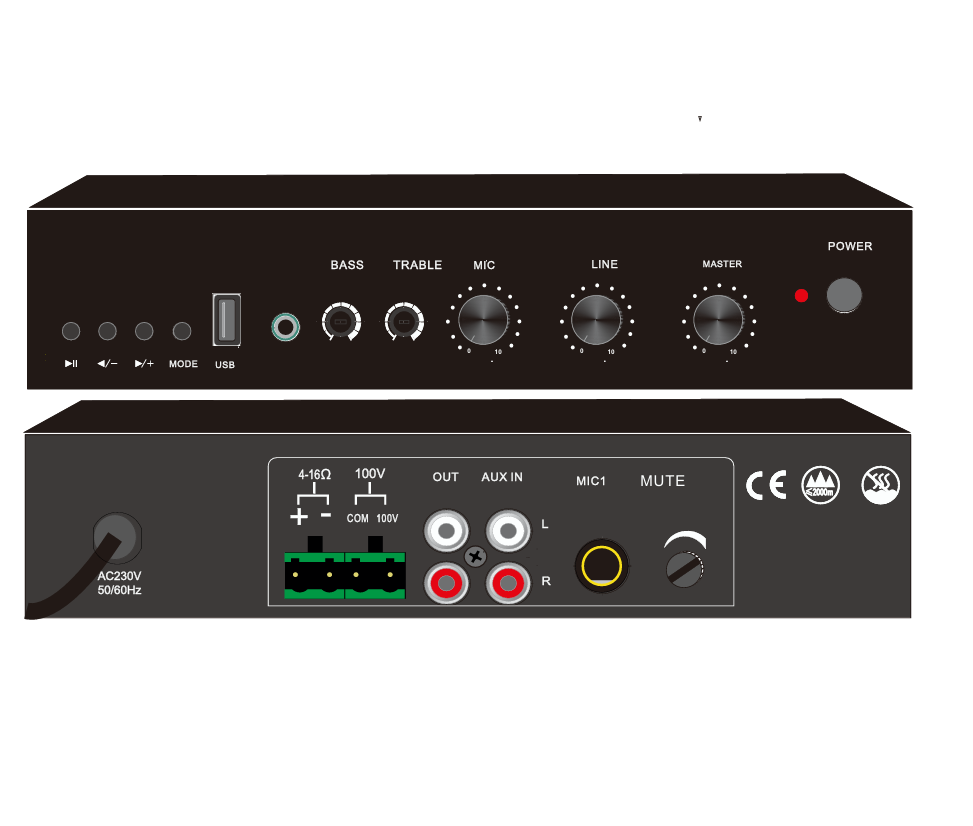

The PD - 60M is a compact yet powerful audio device. It operates at AC220V/50Hz, with a 40W rated power. Featuring 1 MIC and 1 AUX input, 4 - 8Ω & 100V output, built - in MP3 and Bluetooth, it suits various scenarios, boasting - 6DB AUX & - 40DB MIC sensitivity, 80Hz - 16KHz frequency response, and small size for flexible use.

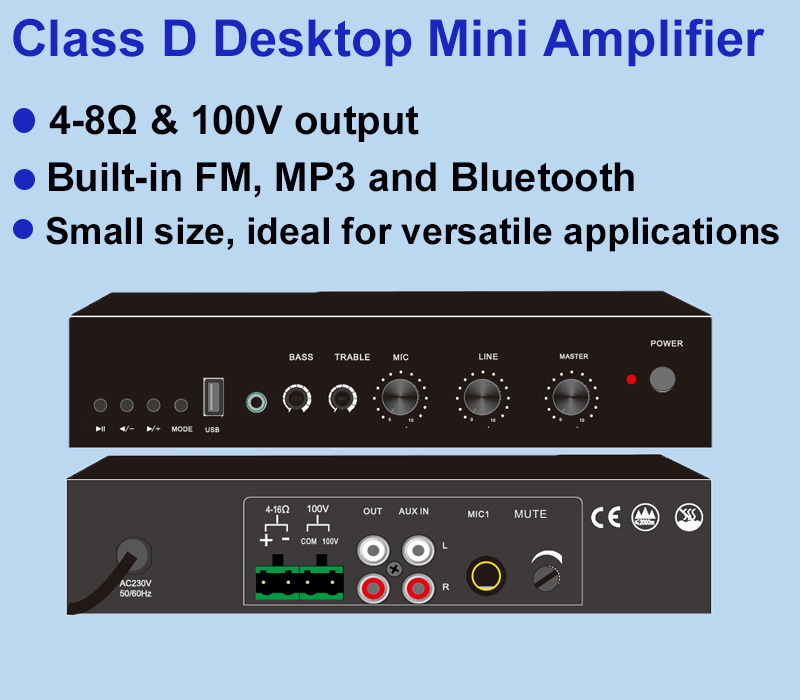

Features

1. Class D circuit, with high efficient switch mode power.

2. 1 MIC input, 1 AUX input, 1 AUX output.

3. 4-8Ω low impedance output and 100V output are available.

4. 15-24V DC power supply available.

5.Built-in Mp3 player and Bluetooth for different occasions.

6.MIC 1 is the priority control, automatically suppressing other input signals.

7.Table top application, with small size.

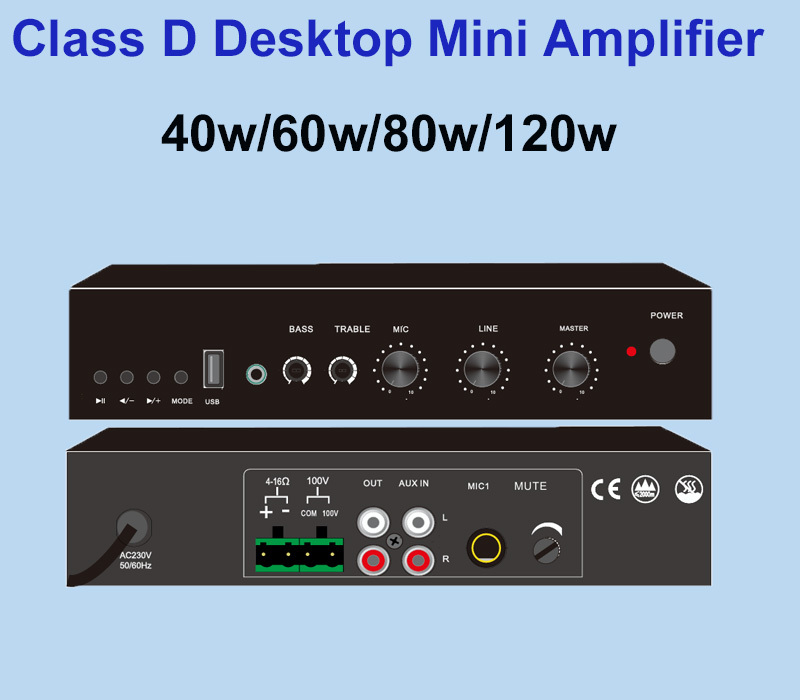

Model	PD-40M	PD-60M	PD-80M	PD-120M
Iput Voltage	AC220V/50HZ				Rated Power	Iput Voltage	Sensitivity
Rated Power	40W	60W	80W	120W
AUX Sensitivity	-6DB				120W		90DB
MIC Sensitivity	-40DB				240W		92DB
Frequency Response	80HZ-16KHZ+/-1DB				360W
THD	THD</=0.1%				560W
SNR	>/=78DB				650W
Line Output	4-8Ω 100V				1000W
Tone Control	Bass:+/-10DB(@100HZ) Treble::+/-10DB(@10KHZ)
Operating Temperature	-5℃-80℃
Operating Humidity	20℃-80℃
Dimensions(mm)	21522044					21525066
