Specifications
Place of Origin :
Guangdong, China
Model Number :
PA-120ZM
MOQ :
100
warranty :
3years
dimension :
485*340*88
snr :
70dB
output power :
120w
Radio function :
Yes
Control Method :
Touchpad
Shape :
Rectangle
Frequency response :
80-16KHZ+/_5dB
Recommended use :
for televisions, For DVD players, for gaming consoles, for computers, for music players, For surround sound systems
Magnet Material :
Ferrite
Description
6 Zones Bluetooth Mixer Amplifier 6 Channel 60W 120W 240W 1000W
6 Zones Bluetooth Mixer Amplifier 6 Channel 60W 120W 240W 1000W
6 Zones Bluetooth Mixer Amplifier 6 Channel 60W 120W 240W 1000W
6 Zones Bluetooth Mixer Amplifier 6 Channel 60W 120W 240W 1000W

Product Description

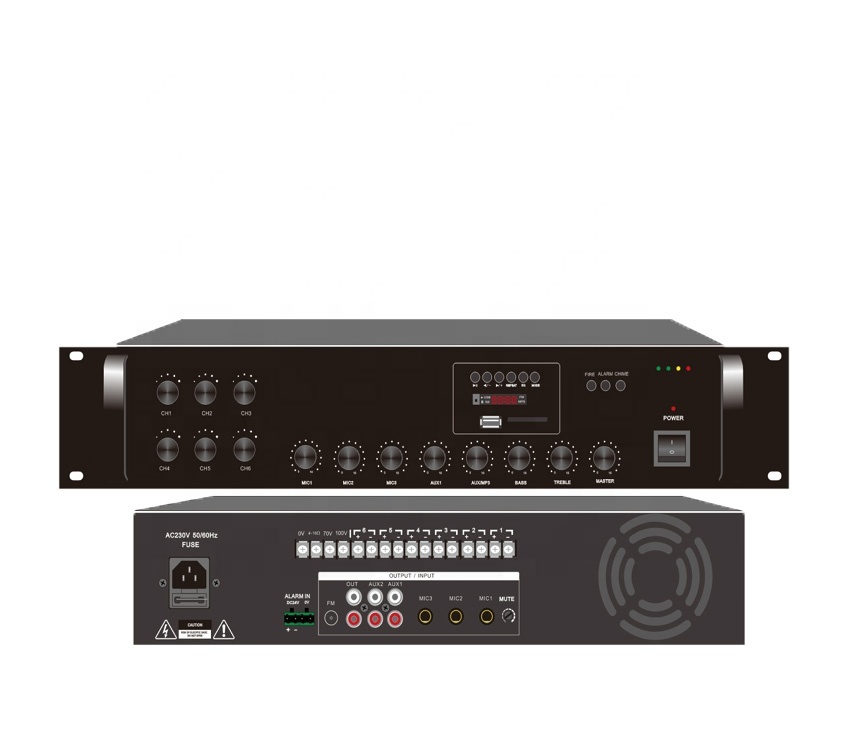

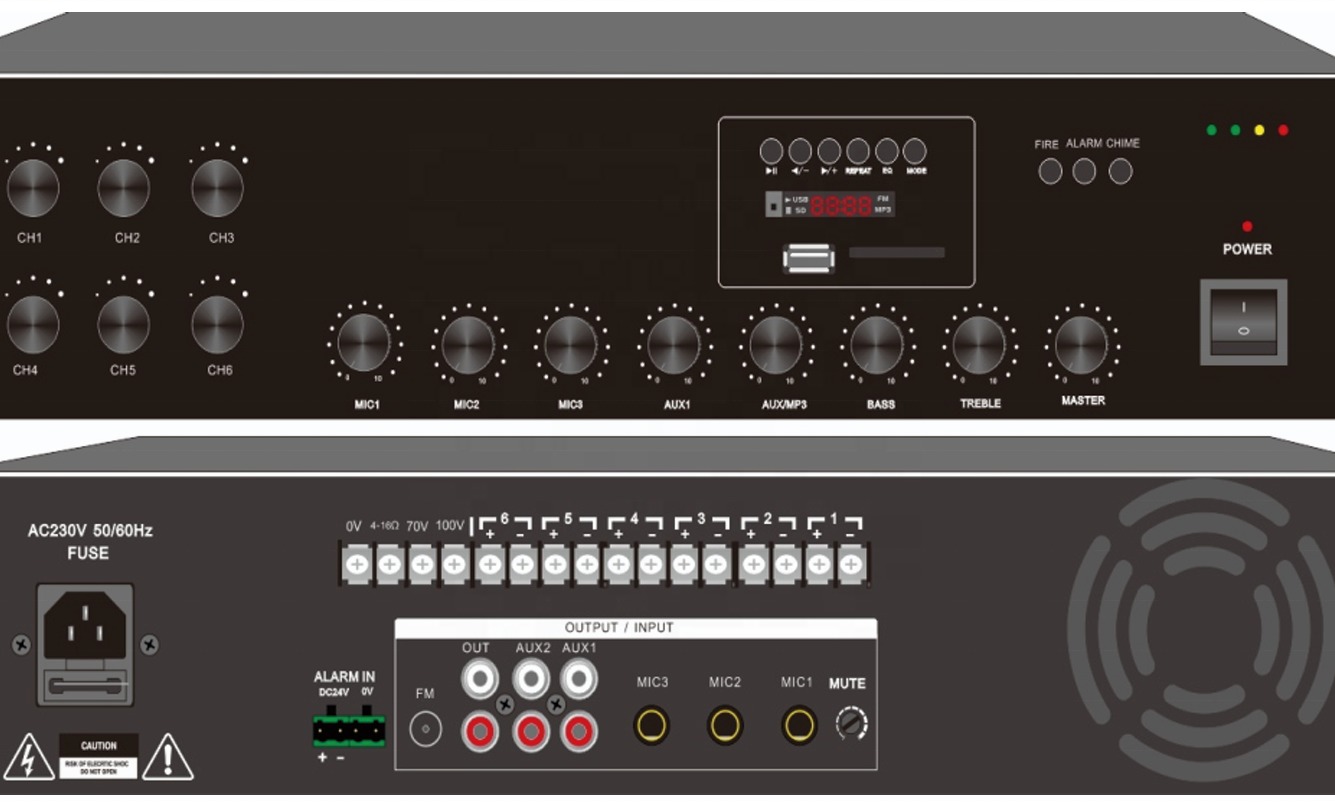

PA-60ZM-PA-1000ZM series have 6 zones with MP3 and bluetooth players.

Features

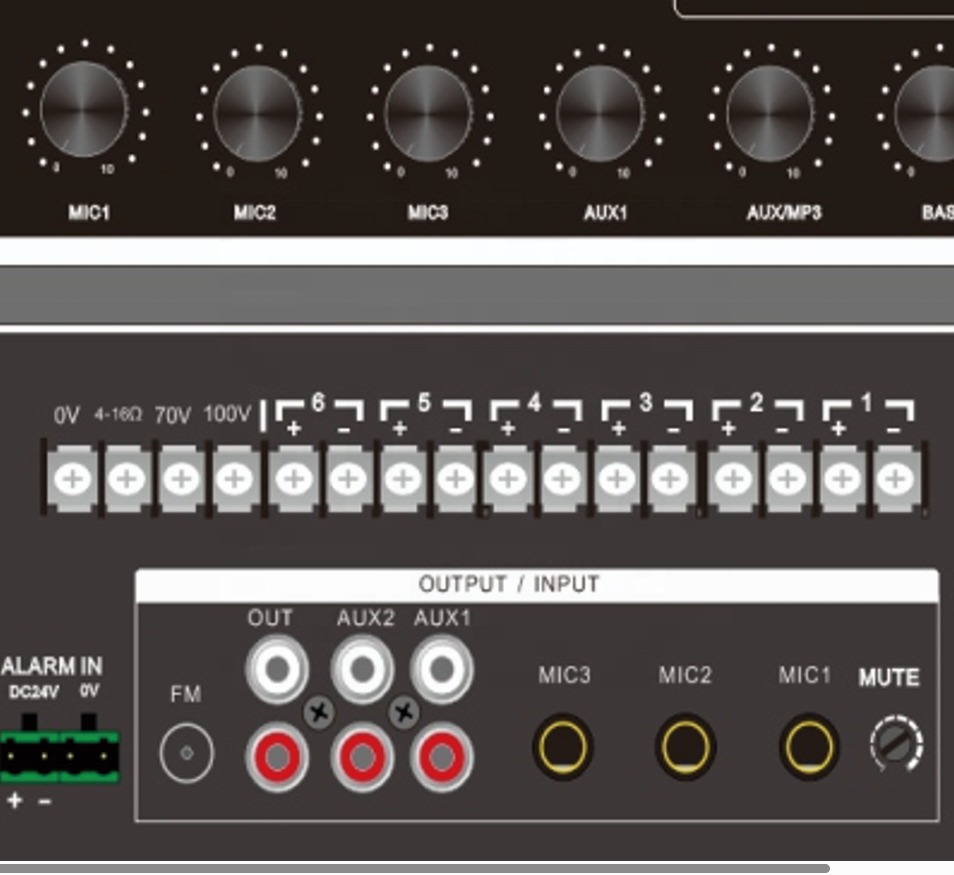

1. Using advanced and efficient power amplification circuit, with 2 MIC,3 inputs, 1 AUX output.
2. 4-16Ω low impedance output and 70V/100V output are available.
3. Individual volume control and adjustment for treble and bass.
4. Built-in Mp3 player and FM operated by remote control to meet various demands in different occasions.
5.Built-in Bluetooth for easy connection with mobile phones to play music.
6.MIC1 and fire alarm are in priority, suppressing other signals, MIC2 and other mixed output. When MUTE is on, MIC1 can mix output with other signals.
7. Indicators for signal, peak shaving and protection.
8. Indicators for signal , peak value, overloading, over heating and short circuit
9. Limiter inside limits the voltage to protect speakers when the signal is over limit.
10. 6 zones output, with individual volume control for each zone.
11. 3 channel fire alarm function to allow alarm automatically or manually.
12. Support short circuit to activate the alarm with 0V, as well as 3.3V, 5V 12V, 24V.
13. Built-in 8M memory card to allow online updating Flash, copying contents. Press and play, with 6 channel activators.
Model
PA-60ZM
PA-120ZM
PA-240ZM
PA-360ZM
PA-560ZM
PA-650ZM
PA-1000ZM
Iput Voltage
AC220V/50HZ
Rated Power
Iput Voltage
Sensitivity
Frequency Response
Dimension
Material
Rated Power
60W
120W
240W
360W
560W
650W
1000W
AUX Sensitivity
-6DB
120W
90DB
50-21KHz
186*189*306
ABS
MIC Sensitivity
-40DB
240W
92DB
50-22KHz
222*214*335
ABS
Frequency Response
80HZ-16KHZ+/-3DB
360W
THD
THD</=0.1%
560W
SNR
>/=70DB
650W
Line Output
0DB
1000W
Protection Circut
DC, Overload, AC fuse, Short-circuit
Operating Temperature
-5℃-80℃
Operating Humidity
20℃-80℃ relative humidity
Dimensions
485*340*88
