Specifications
Place of Origin :
Guangdong, China
Model Number :
CL-105B
MOQ :
2
Certification :
CE
Supply Ability :
5000+
Delivery Time :
3
warranty :
1 year
output power :
6w
Shell Material :
Iron
the body material :
Metal
Voltage :
100V
Installation :
ceiling mount
Frequency response :
110-15KHz
dimension :
200*105mm
Recommended use :
Office/Shopping Mall/Sports Center/Restaurant
Description

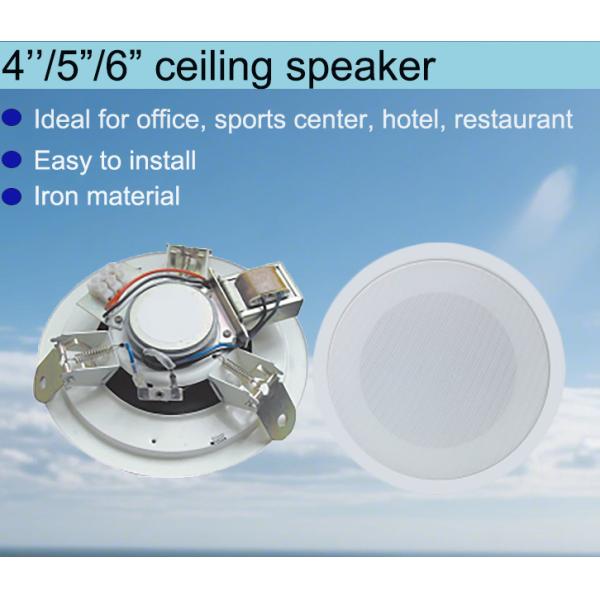

Passive Ceiling Speaker 5 Inch 6W Background Music Loudspeaker

Product Description for CL-105B Ceiling Speaker


The CL-105B 5-inch full-range passive ceiling speaker is purpose-built for commercial audio applications, delivering clear, consistent sound for background music, public address, and paging systems in retail stores, offices, restaurants, and hospitality venues.

With a 6W power handling capacity and 100V line input, it integrates seamlessly into multi-speaker setups, ensuring uniform audio distribution across large spaces. Its 90dB sensitivity and 110-15kHz frequency response deliver crisp highs and natural midrange, guaranteeing intelligible voice announcements and enjoyable background music without distortion.

Housed in a robust iron enclosure measuring 200×105mm and weighing 0.9kg, this low-profile speaker is designed for durability and discreet, flush-mount installation. The 170mm mounting hole enables quick, secure setup, reducing installation time and labor costs for contractors and integrators.

As a passive unit, it pairs effortlessly with 100V line amplifiers, offering a cost-effective, scalable audio solution. Whether you’re upgrading a hotel’s in-room audio or installing a paging system in an office building, the CL-105B combines rugged construction, easy installation, and reliable performance to meet the demands of any commercial audio project.

Technical Specifications
Model Speaker Size Power Voltage Sensitivity Frequency Response Dimension (mm) Material Mounting Hole Weight(kgs)
CL-104 4" 6W 100V 90dB 110-15KHz 180*50 Iron 155 0.65
CL-105 5" 6W 100V 90dB 110-15KHz 200*67 Iron 170 0.7
CL-106 6" 6W 100V 90dB 110-15KHz 245*75 Iron 225 1
CL-104B 4" 6W 100V 90dB 110-15KHz 180*110 Iron 155 0.8
CL-105B 5" 6W 100V 90dB 110-15KHz 200*105 Iron 170 0.9
CL-106B 6" 6W 100V 90dB 110-15KHz 245*115 Iron 225 1.3
