Specifications
Place of Origin :
Guangdong, China
Model Number :
CL-504B
MOQ :
300
Certification :
CE
Supply Ability :
5000+
Delivery Time :
30
Watt :
6w
Weight(kgs) :
0.85
dimension :
135*113mm
Material :
Iron
the body material :
Metal
Frequency response :
100-20KHZ
Mounting Hole :
112
warranty :
1 year
Application :
Hotel, restaurant
Description
Cl-504B Iron Sound Elegant Design for Office 4 Inch Ceiling Speaker 6W Speaker
The CL-504B is a high-performance passive ceiling speaker engineered for seamless audio integration in commercial and residential spaces. Built with a robust iron enclosure and a 4-inch high-fidelity driver, it delivers crisp, balanced sound coverage for background music, public address, and paging applications.
With a 6W power handling capacity and 100V line input, this speaker is optimized for multi-zone audio systems, ensuring consistent volume levels across large environments like retail stores, offices, restaurants, and hotel lobbies. Its 89dB sensitivity rating guarantees clear audio reproduction even in acoustically challenging spaces, while the frequency response of 100-20kHz ensures rich mids, detailed highs, and smooth tonal balance for both speech and music.

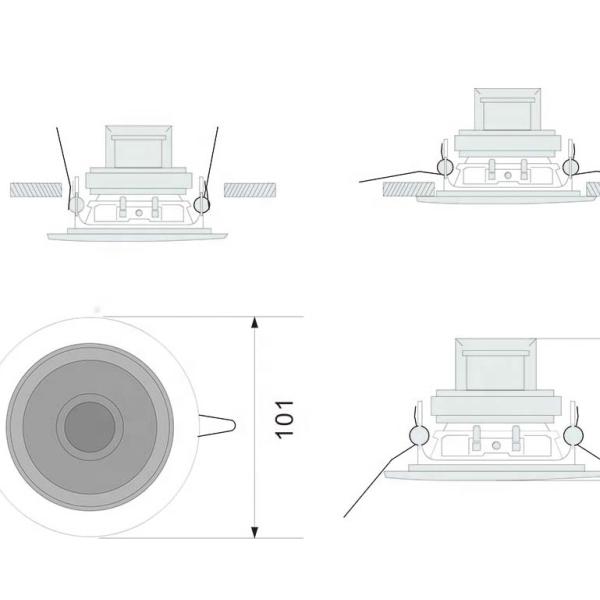

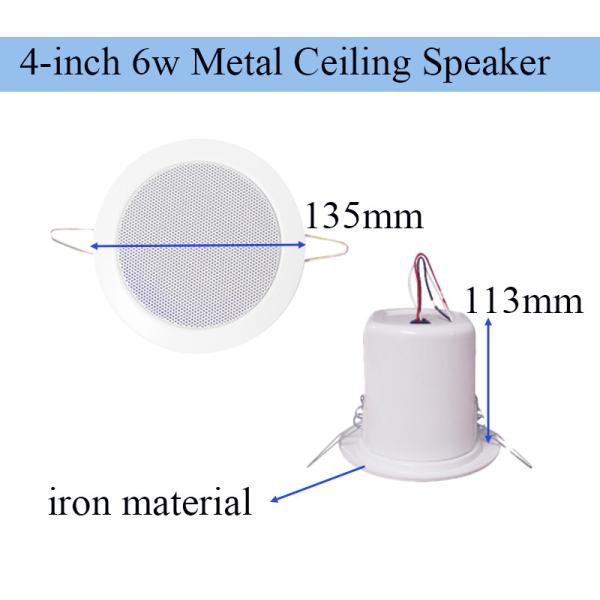

The compact, low-profile design (Φ135×113mm) and lightweight construction (0.85kg) make installation effortless, fitting standard ceiling cutouts with a 112mm mounting hole for secure, flush placement. The durable iron housing protects internal components from dust and moisture, making it suitable for long-term use in high-traffic areas.
Ideal for professional installers and system integrators, the CL-504B combines reliable performance with easy integration. Whether creating immersive background audio experiences or ensuring clear public announcements, this passive ceiling speaker delivers exceptional value and audio clarity for any commercial audio setup.

Technical Specifications
Model Speaker Size Power Voltage Sensitivity Frequency Response Dimension(mm) Material Weight(kgs) Mounting Hole
CL-504 4" 6W 100V 89DB 90-18KHZ Φ135*80 Iron 0.5 112
CL-504B 4" 6W 100V 89DB 100-20KHz Φ135*113 Iron 0.85 112
CL-503 3" 6W 100V 87DB 120-20KHz Φ101*60 Iron 0.4 80
Performance Characteristics
  • Power Output: 6W with 100V voltage compatibility
  • Sensitivity: 89DB for efficient signal conversion
  • Frequency Response: 100-20KHZ for full-range audio reproduction
  • Compact Design: Φ135-113mm dimensions with 112mm mounting hole
  • Lightweight: Only 0.85kgs for easy handling
