Specifications
Place of Origin :
Guangdong, China
Model Number :
CL-348B
MOQ :
100
warranty :
3years
dimension :
270*190
power source :
Other
output power :
40/20/10/5W/8ohm
Shell Material :
Iron
the body material :
Metal
Radio function :
NO
Operating Voltage :
100V, 70V
Impedance :
8ohm
Frequency response :
90-20KHz
Magnet Material :
Ferrite, Neodymium
Description
8 Inch Round Ceiling Speakers 100V 70V Iron Ceiling PA Loudspeaker
8 Inch Round Ceiling Speakers 100V 70V Iron Ceiling PA Loudspeaker
8 Inch Round Ceiling Speakers 100V 70V Iron Ceiling PA Loudspeaker
8 Inch Round Ceiling Speakers 100V 70V Iron Ceiling PA Loudspeaker

Product Description

CL-348B Ceiling Speaker: Premium Audio for Professional Spaces

Features:
1. Design & Build Quality

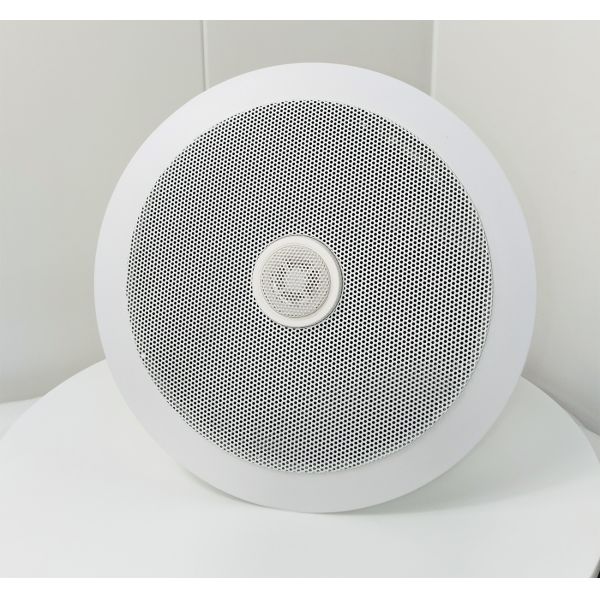

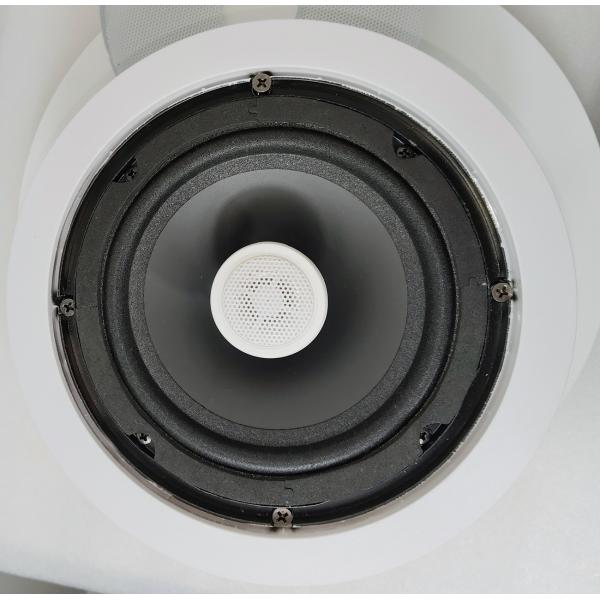

The CL-348B is a high-end coaxial ceiling speaker engineered for commercial and industrial environments. It features an 8-inch coaxial speaker unit, combining precision sound reproduction with durable construction. The housing uses a white metal grille, ABS baffle, and metal back cover, ensuring both aesthetic appeal and long-term reliability. With product dimensions of 270×190 mm and a weight of 3.1 kgs, it supports secure flush-mount installation—ideal for integrating into hotels, offices, factories, and public spaces requiring background music or paging.
2. Audio Performance & Flexibility

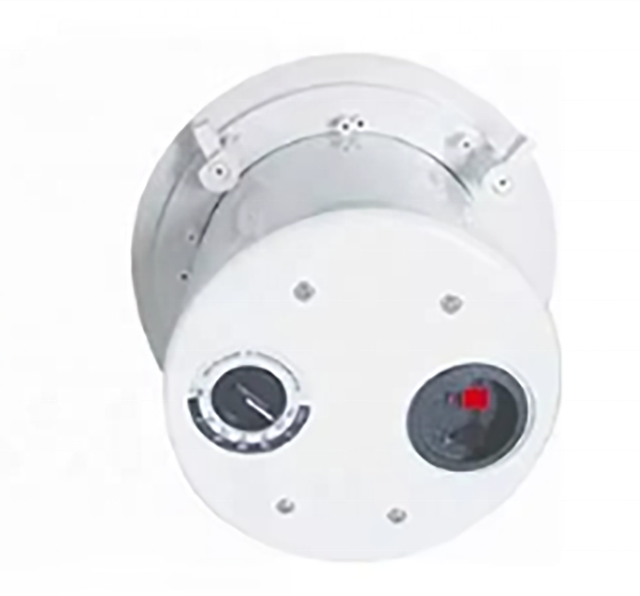

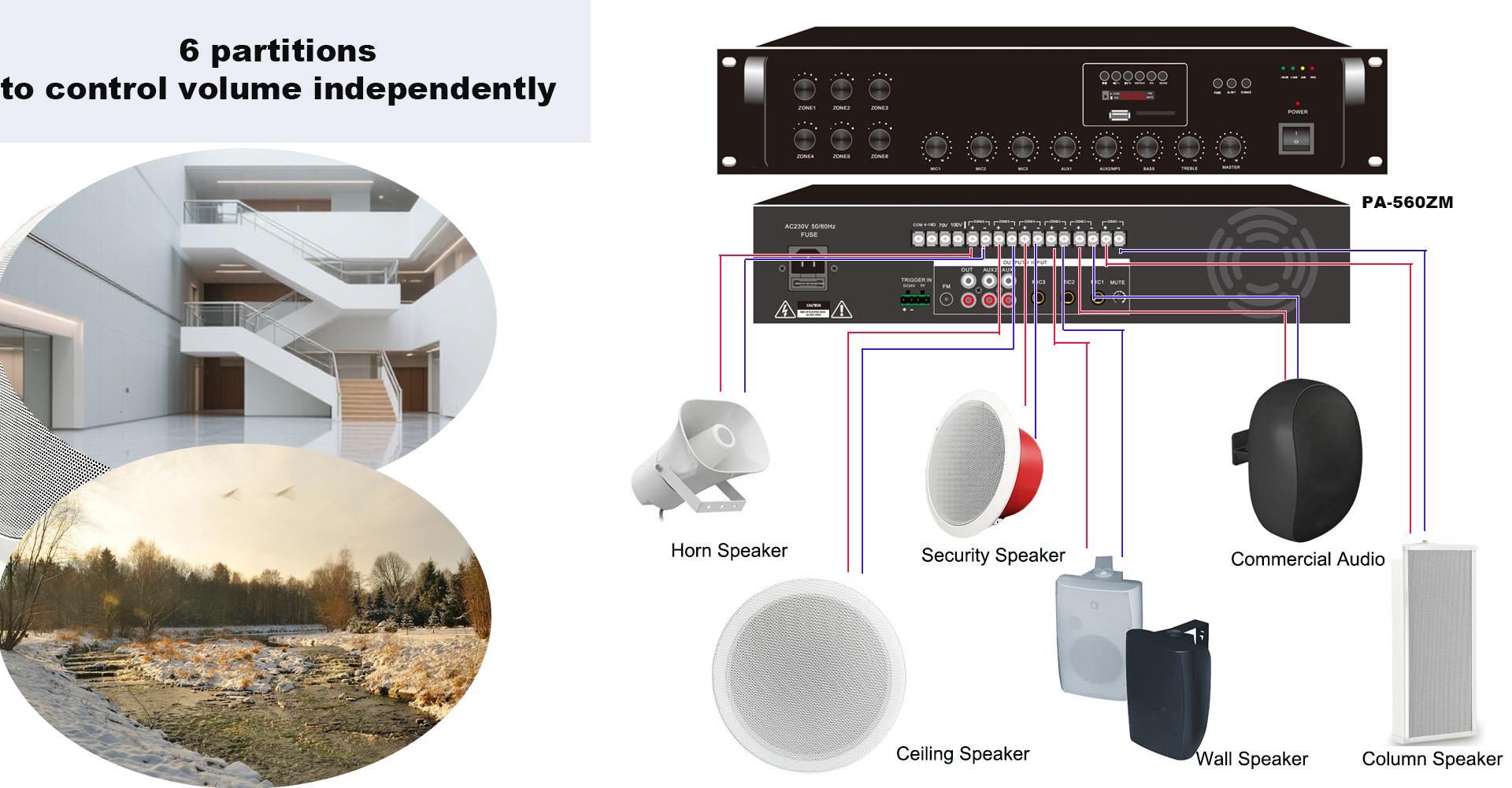

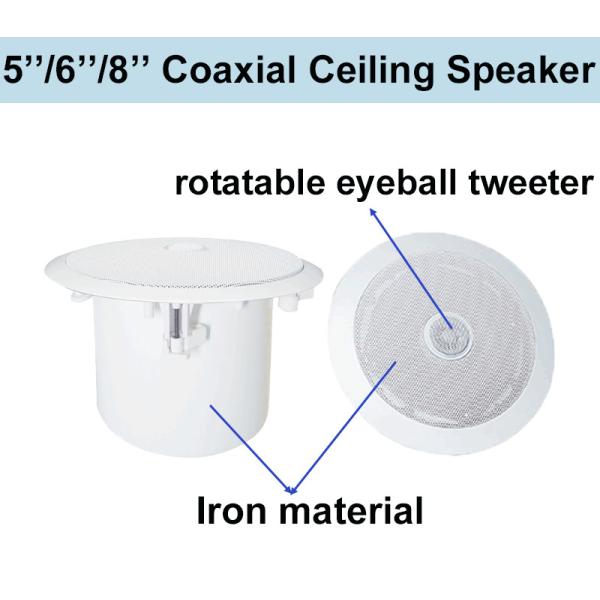

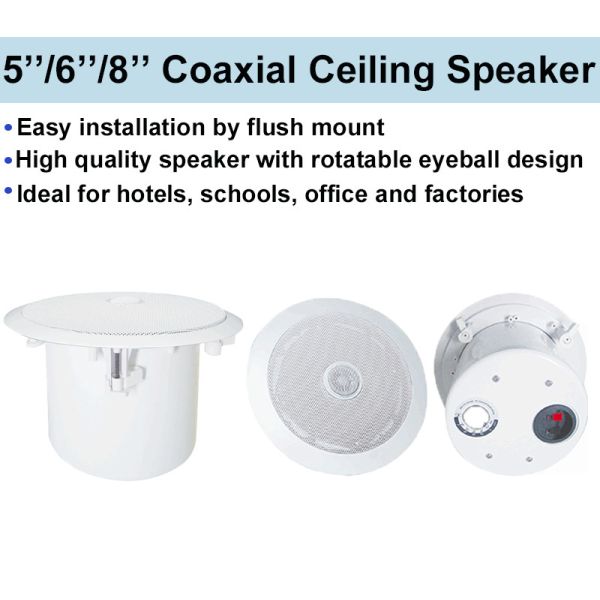

Equipped with a built-in 100V/70V/8ohm transformer, the CL-348B minimizes line losses over long distances, enabling seamless parallel connection of multiple speakers in large-scale setups. A standout feature is its rotatable eyeball tweeter: users can tilt the tweeter to adjust the sound dispersion angle, directing audio precisely to the target area for optimized coverage. In terms of power, it delivers flexible output options (40/20/10/5W at 100V/70V, 8W at 8ohm) and boasts a 90dB sensitivity. The frequency range of 90–20KHZ ensures rich bass, clear midrange vocals, and detailed highs—perfect for reproducing music, announcements, or ambient sound with exceptional fidelity.
3. Application Suitability

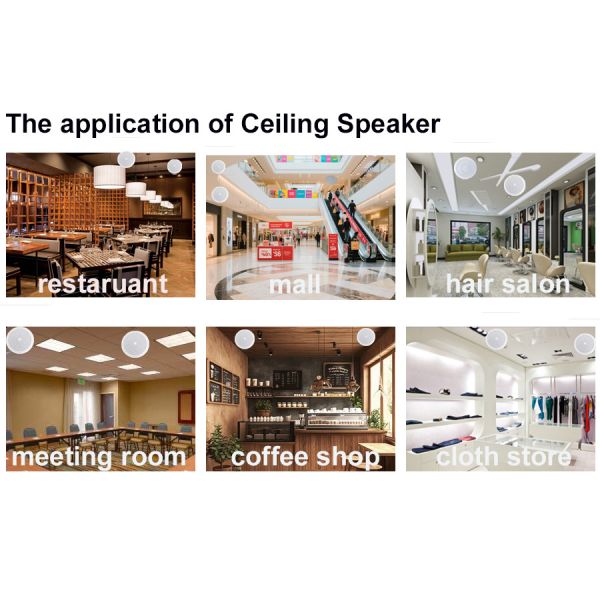

This speaker excels in commercial environments where audio quality and adaptability matter. In hotels, it provides refined
background music for lobbies and guest areas; in offices, it supports clear paging and audio reinforcement; in factories, it
ensures reliable sound distribution over large spaces. The CL-348B balances professional-grade performance, flexible installation, and stylish design design, making it a top choice for projects demanding both functionality and sonic excellence.

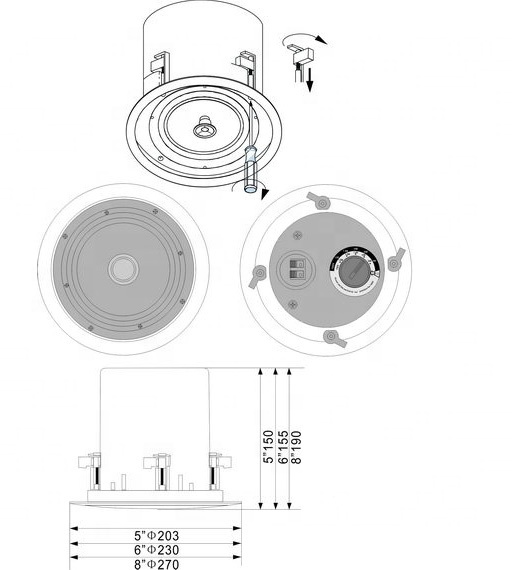

Model
Speaker Size
Power
Voltage
Sensitivity
Frequency Response
Dimension(mm)
Material
Mounting Hole
CL-345B
5" Coaxial Speaker
20/10/5/2.5/8ohm
100V/70V
88DB
100-20KHz
203*150
Iron
170
CL-346B
6" Coaxial Speaker
30/15/7.5/3.8W/8ohm
100V/70V
89DB
100-20KHz
230*155
Iron
200
CL-348B
8" Coaxial Speaker
40/20/10/5W/8ohm
100V/70V
90DB
90-20KHz
270*190
Iron
240
