ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
Specifications
Place of Origin :
Guangdong, China
Model Number :
CL-345B
MOQ :
100
warranty :
3years
dimension :
203*150
power source :
Other
output power :
20/10/5/2.5/8ohm
Shell Material :
Iron
the body material :
Metal
Radio function :
NO
Operating Voltage :
100V, 70V
Impedance :
8ohm
Frequency response :
100-20KHz
Magnet Material :
Ferrite, Neodymium
Description
CL-345B High Quality Iron Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker with Rotatable Eyeball Tweeter
CL-345B OEM ODM High Quality Iron Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker with Rotatable Eyeball Tweeter
Product Description

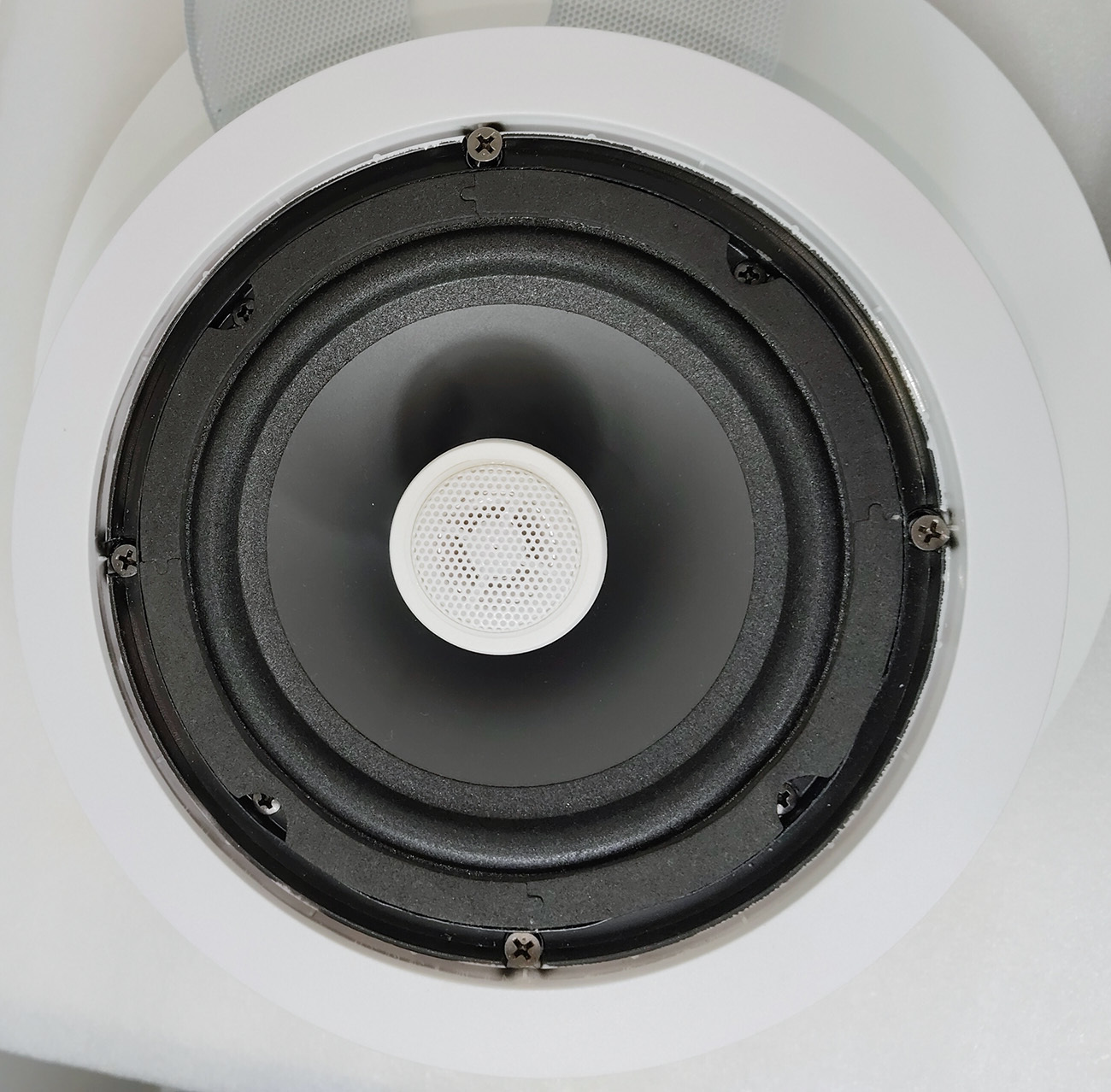

The CL-345B, CL-346B, and CL-348B series are professional ceiling speakers featuring coaxial speaker units in 5", 6", and 8" sizes. These models include built-in 100V/70V/8ohm transformers that minimize line losses over long distances and enable easy parallel connection of multiple speakers.
Key Features

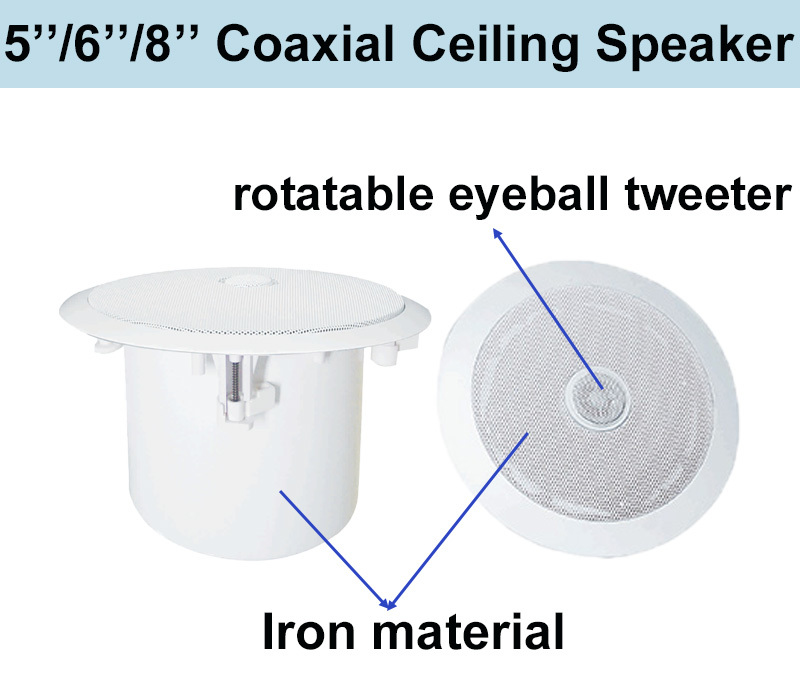

  • Rotatable eyeball tweeter design allows precise sound direction adjustment

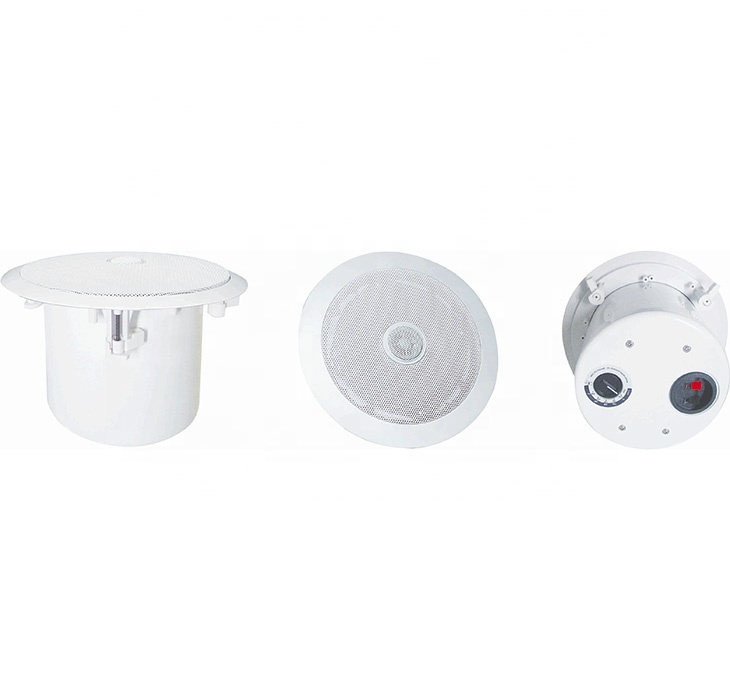

  • Durable construction with metal grille, ABS baffle, and metal back cover
  • Available in white finish for discreet ceiling integration
  • Simple flush mount installation for secure ceiling mounting

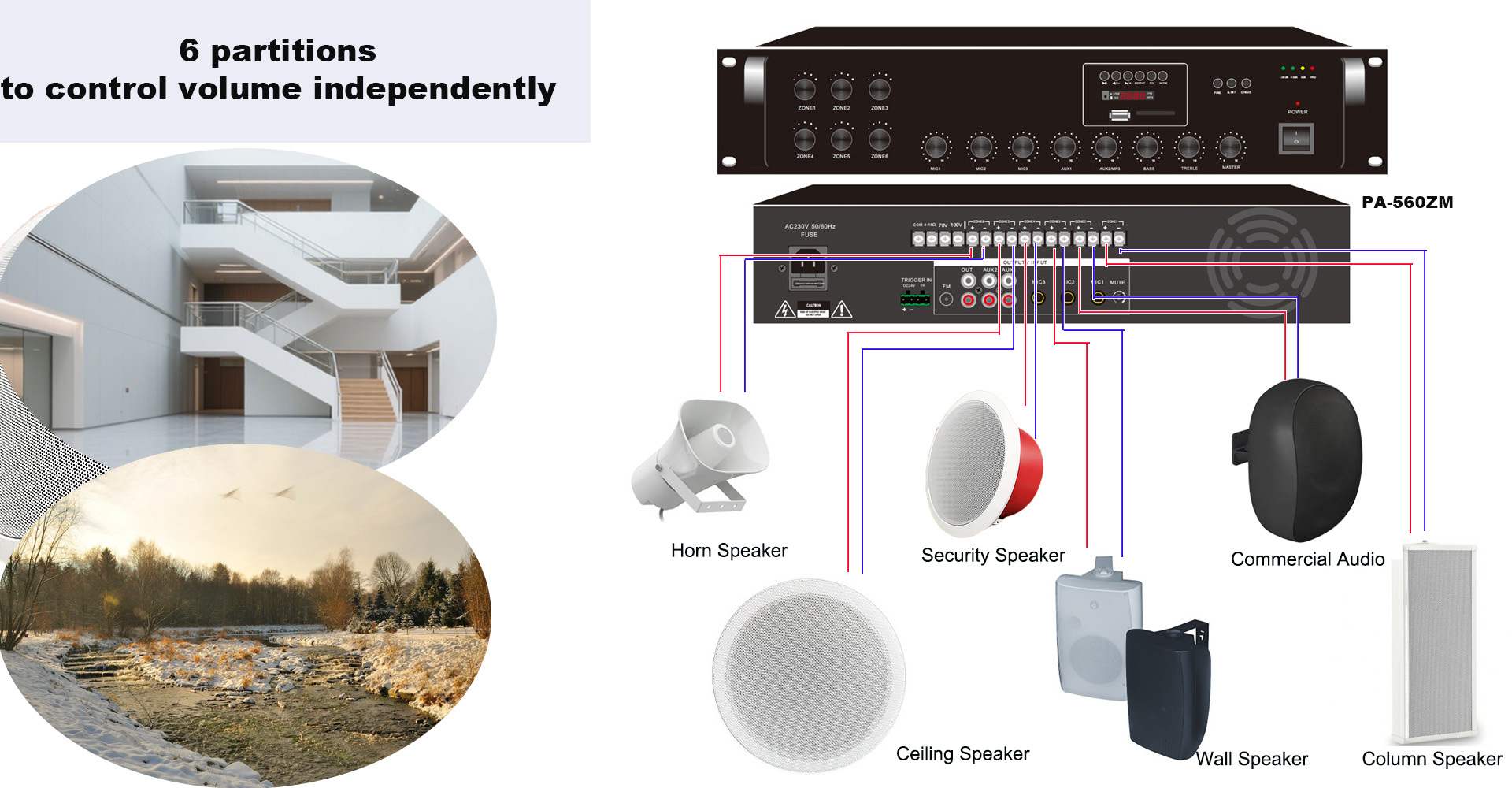

  • Ideal for background music and paging systems in commercial spaces
  • Suitable for hotels, schools, offices, and industrial facilities
Technical Specifications

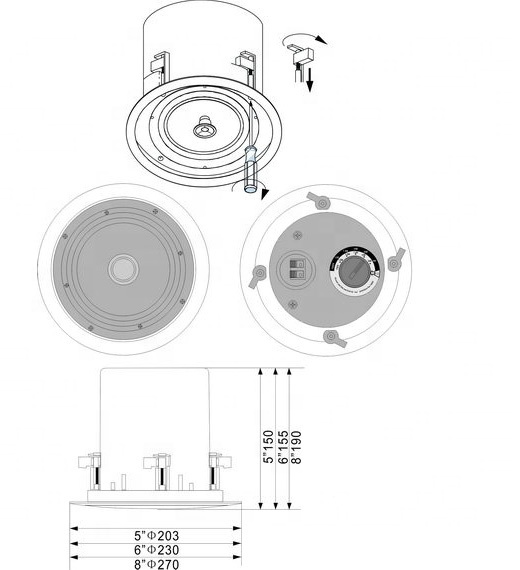

Model Speaker Size Power Voltage Sensitivity Frequency Response Dimension (mm) Material Mounting Hole
CL-345B 5" Coaxial Speaker 20/10/5/2.5/8ohm 100V/70V 88DB 100-20KHz 203*150 Iron 170
CL-346B 6" Coaxial Speaker 30/15/7.5/3.8W/8ohm 100V/70V 89DB 100-20KHz 230*155 Iron 200
CL-348B 8" Coaxial Speaker 40/20/10/5W/8ohm 100V/70V 90DB 90-20KHz 270*190 Iron 240

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
